onsemiDatasheet (PDF)

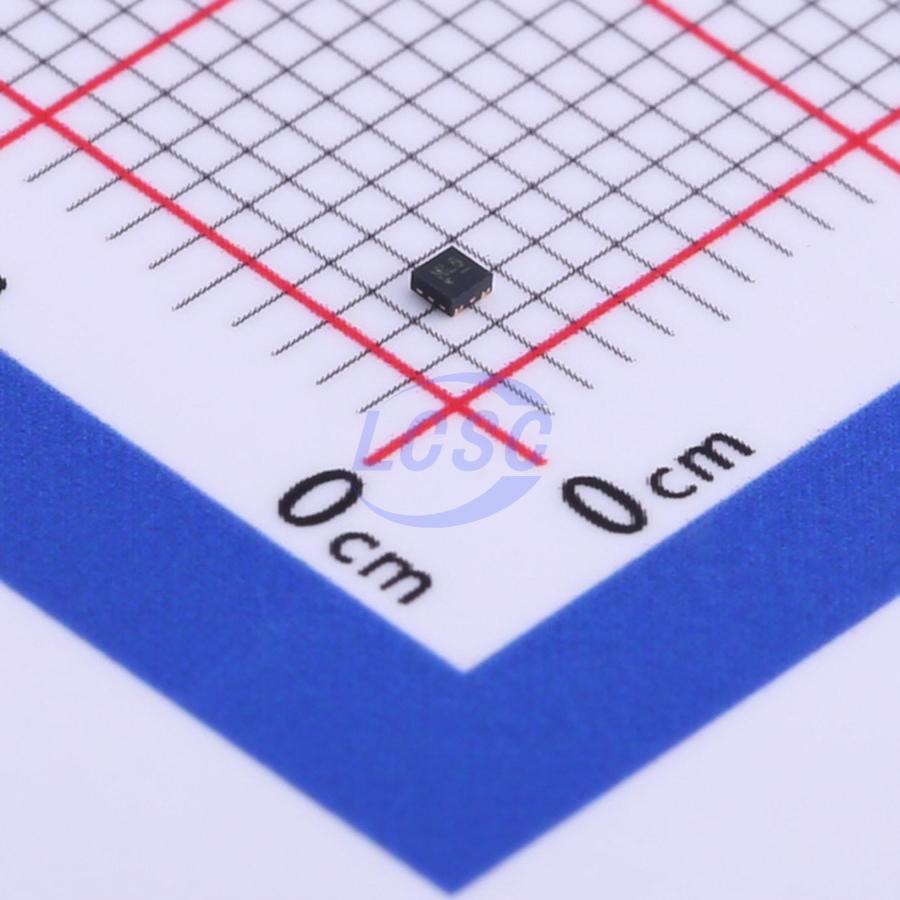

NCP163AMX500TBG
Linear Voltage Regulator IC Positive Fixed 1 Output 250mA XDFN-4-EP(1x1)
XDFN-4-EP(1x1)ROHS3 CompliantActive
250 mA Ultra-Low Noise, High PSRR LDO Regulator
- Manufacturer
- onsemi
- Manufacturer part #
- NCP163AMX500TBG
- Store part #
- C463130
- Package / case
- XDFN-4-EP(1x1)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
220 in stock
#C463130
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹56.96 | ₹284.80 |
| 50+ | ₹47.32 | ₹2,366.00 |
| 150+ | ₹43.20 | ₹6,480.00 |
| 500+ | ₹38.05 | ₹19,025.00 |
| 3,000+ | ₹35.76 | ₹1,07,280.00 |
| 6,000+ | ₹34.38 | ₹2,06,280.00 |
5 × ₹56.96
₹284.80
excl. GST
₹336.06 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NCP163AMX500TBG
₹284.80 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 12uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 250mA
- Features
- Enable control;Output discharge;Short Circuit Protection;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.026 g
Overview
The NCP163 is a next generation of high PSRR, ultra−low noise LDO capable of supplying 250 mA output current. Designed to meet the requirements of RF and sensitive analog circuits, the NCP163 device provides ultra−low noise, high PSRR and low quiescent current. The device also offer excelent load/line transients. The NCP163 is designed to work with a 1 μF input and a 1 μF output ceramic capacitor. It is available in two thickness ultra−small 0.35P, WLCSP Packages, XDFN4 0.65P and industry standard SOT23−5L.
Applications
- Battery−powered Equipment
- Wireless LAN Devices
- Smartphones, Tablets
- Cameras, DVRs, STB and Camcorders
Key features
- Operating Input Voltage Range: 2.2 V to 5.5 V
- Available in Fixed Voltage Option: 1.2 V to 5.3 V
- ±2% Accuracy Over Load/Temperature
- Ultra Low Quiescent Current Typ. 12 μA
- Standby Current: Typ. 0.1 μA
- Very Low Dropout: 80 mV at 250 mA
- Ultra High PSRR: Typ. 92 dB at 20 mA, f = 1 kHz
- Ultra Low Noise: 6.5 VRMS
- Stable with a 1 μF Small Case Size Ceramic Capacitors
- Available in WLCSP4: 0.65 mm x 0.65 mm x 0.33 mm, WLCSP4: 0.65 mm x 0.65 mm x 0.4 mm, XDFN4: 1 mm x 1 mm x 0.4 mm, SOT23−5: 2.9 mm x 2.8 mm x 1.2 mm
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LDLN025PU50R#C2970533ST · DFN-4(1x1) | ST | DFN-4(1x1) | 12 | ₹44.88 · 12 in stock | View |
 | LW5750N11E#C53426701Lewa Micro · DFN-4L(1x1) | Lewa Micro | DFN-4L(1x1) | 8,450 | ₹35.96 · 8,450 in stock | View |
 | TPS7A2050PDQNR#C2866499TI · X2-SON-4-EP(1x1) | TI | X2-SON-4-EP(1x1) | 2,575 | ₹30.65 · 2,575 in stock | View |
 | SK6513SD4-50#C39673733Suntek · DFN1x1-4 | Suntek | DFN1x1-4 | 1,700 | ₹42.51 · 1,700 in stock | View |
| NCP160BMX500TBG#C603625onsemi · XDFN-4-EP(1x1) | onsemi | XDFN-4-EP(1x1) | On request | ₹8.68 · 0 in stock | View | |
