onsemiDatasheet (PDF)

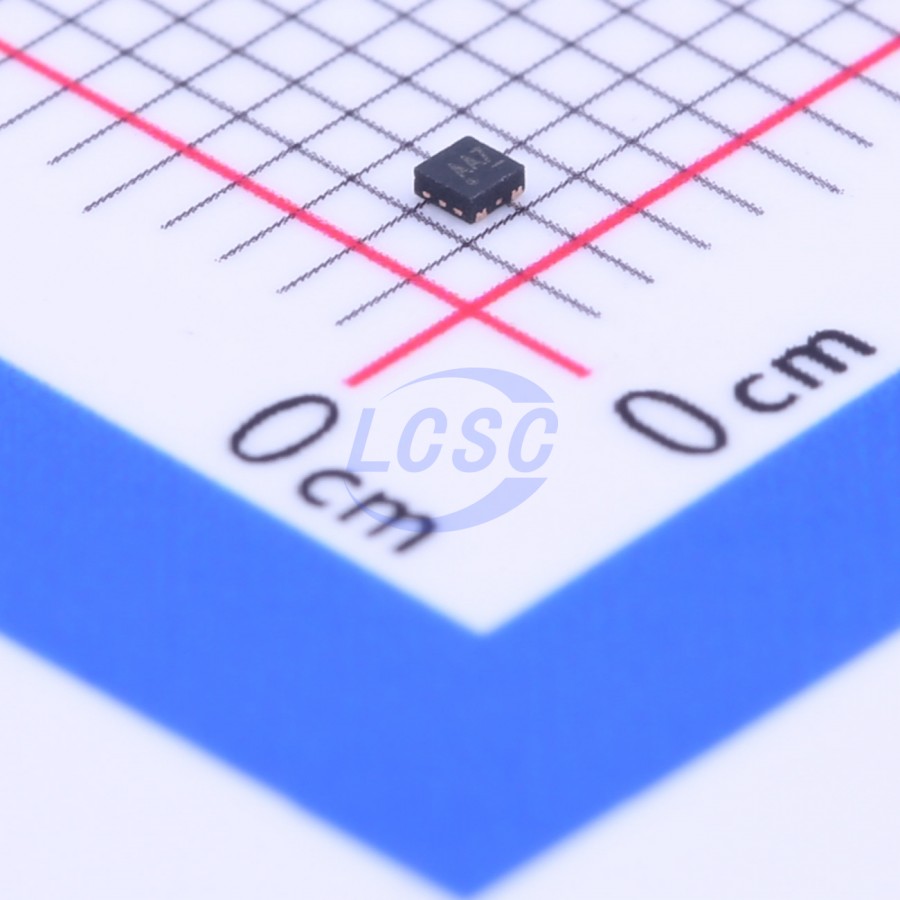

NCP170AMX300TCG
3V Positive Fixed DFN-4-EP(1x1) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
DFN-4-EP(1x1)ROHS3 CompliantActive
Ultra-Low lQ 150 mA CMoS LDO Regulator
- Manufacturer
- onsemi
- Manufacturer part #
- NCP170AMX300TCG
- Store part #
- C152284
- Package / case
- DFN-4-EP(1x1)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6 in stock
#C152284
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹32.52 | ₹32.52 |
| 10+ | ₹31.66 | ₹316.60 |
| 30+ | ₹31.22 | ₹936.60 |
| 100+ | ₹30.80 | ₹3,080.00 |
1 × ₹32.52
₹32.52
excl. GST
₹38.37 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NCP170AMX300TCG
₹32.52 for 1 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Tj)
- Supply Current (Iq)
- 500nA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 150mA
- Features
- Enable control;Over Current Protection;Thermal shutdown;Output discharge
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.019 g
Overview
The NCP170 series of CMOS low dropout regulators are designed specifically for portable battery-powered applications which require ultra-low quiescent current. The ultra-low consumption of typ. 500 nA ensures long battery life and dynamic transient boost feature improves device transient response for wireless communication applications. The device is available in small 1×1 mm XDFN4, SOT-563 and TSOP-5 packages.
Applications
- Battery Powered Equipments
- Portable Communication Equipments
- Cameras, Image Sensors and Camcorders
Key features
- Operating Input Voltage Range: 2.2 V to 5.5 V
- Output Voltage Range: 1.2 V to 3.6 V (0.1 V Steps)
- Ultra-Low Quiescent Current Typ. 0.5 μA
- Low Dropout: 170 mV Typ. at 150 mA
- High Output Voltage Accuracy ±1%
- Stable with Ceramic Capacitors 1 μF
- Over-Current Protection
- Thermal Shutdown Protection
- NCP170A for Active Discharge Option
- Available in Small 1×1 mm XDFN4, SOT−563 and TSOP-5 Packages
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| NCP170BMX300TCG#C892247onsemi · XDFN-4-EP(1x1) | onsemi | XDFN-4-EP(1x1) | 10 | ₹41.66 · 10 in stock | View | |
 | MD5130#C919703Mingda Microelectronics · UDFN-4-EP(1x1) | Mingda Microelectronics | UDFN-4-EP(1x1) | 40 | ₹14.47 · 40 in stock | View |
 | TLV73330PDQNR#C2870830TI · X2-SON-4-EP(1x1) | TI | X2-SON-4-EP(1x1) | On request | ₹8.65 · 0 in stock | View |
| TLV73330PDQNT#C2876082TI · X2-SON-4-EP(1x1) | TI | X2-SON-4-EP(1x1) | 100 | ₹16.01 · 100 in stock | View | |
 | SSP7615-30DFR#C3011522Siproin · DFN-4(1x1) | Siproin | DFN-4(1x1) | 5,580 | ₹8.75 · 5,580 in stock | View |
