onsemiDatasheet (PDF)

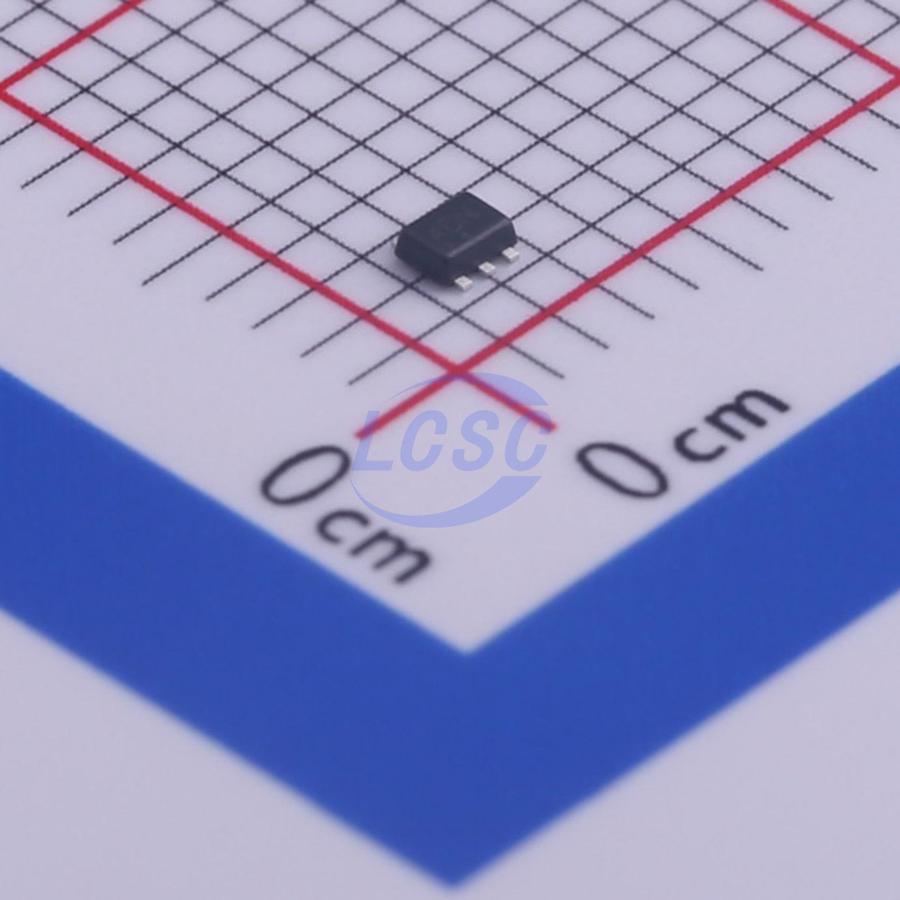

NCP170AXV180T2G
1.8V Positive Fixed SOT-563 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-563ROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- NCP170AXV180T2G
- Store part #
- C457798
- Package / case
- SOT-563
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
160 in stock
#C457798
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹48.26 | ₹241.30 |
| 50+ | ₹38.53 | ₹1,926.50 |
| 150+ | ₹34.37 | ₹5,155.50 |
| 500+ | ₹29.17 | ₹14,585.00 |
| 2,500+ | ₹26.86 | ₹67,150.00 |
| 4,000+ | ₹25.45 | ₹1,01,800.00 |
5 × ₹48.26
₹241.30
excl. GST
₹284.73 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
NCP170AXV180T2G
₹241.30 for 5 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Tj)
- Supply Current (Iq)
- 500nA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 150mA
- Features
- Over Current Protection;Thermal shutdown;Enable control;Output discharge
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.011 g
Overview
The NCP170 series of CMOS low dropout regulators are designed specifically for portable battery-powered applications which require ultra-low quiescent current. The ultra-low consumption of typ. 500 nA ensures long battery life and dynamic transient boost feature improves device transient response for wireless communication applications. The device is available in small 1×1 mm XDFN4, SOT-563 and TSOP-5 packages.
Applications
- Battery Powered Equipments
- Portable Communication Equipments
- Cameras, Image Sensors and Camcorders
Key features
- Operating Input Voltage Range: 2.2 V to 5.5 V
- Output Voltage Range: 1.2 V to 3.6 V (0.1 V Steps)
- Ultra-Low Quiescent Current Typ. 0.5 μA
- Low Dropout: 170 mV Typ. at 150 mA
- High Output Voltage Accuracy ±1%
- Stable with Ceramic Capacitors 1 μF
- Over-Current Protection
- Thermal Shutdown Protection
- NCP170A for Active Discharge Option
- Available in Small 1×1 mm XDFN4, SOT−563 and TSOP-5 Packages
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NCV8170BXV180T2G#C895055onsemi · SOT-563 | onsemi | SOT-563 | 95 | ₹55.51 · 95 in stock | View |
| NCP170BXV180T2G#C894974onsemi · SOT-563 | onsemi | SOT-563 | On request | ₹40.88 · 0 in stock | View | |
| NCV8170AXV180T2G#C895047onsemi · SOT-563 | onsemi | SOT-563 | On request | ₹32.98 · 0 in stock | View | |
| NCP582DXV18T1G#C3747347onsemi · SOT-563 | onsemi | SOT-563 | On request | ₹24.83 · 0 in stock | View | |
