onsemiDatasheet (PDF)

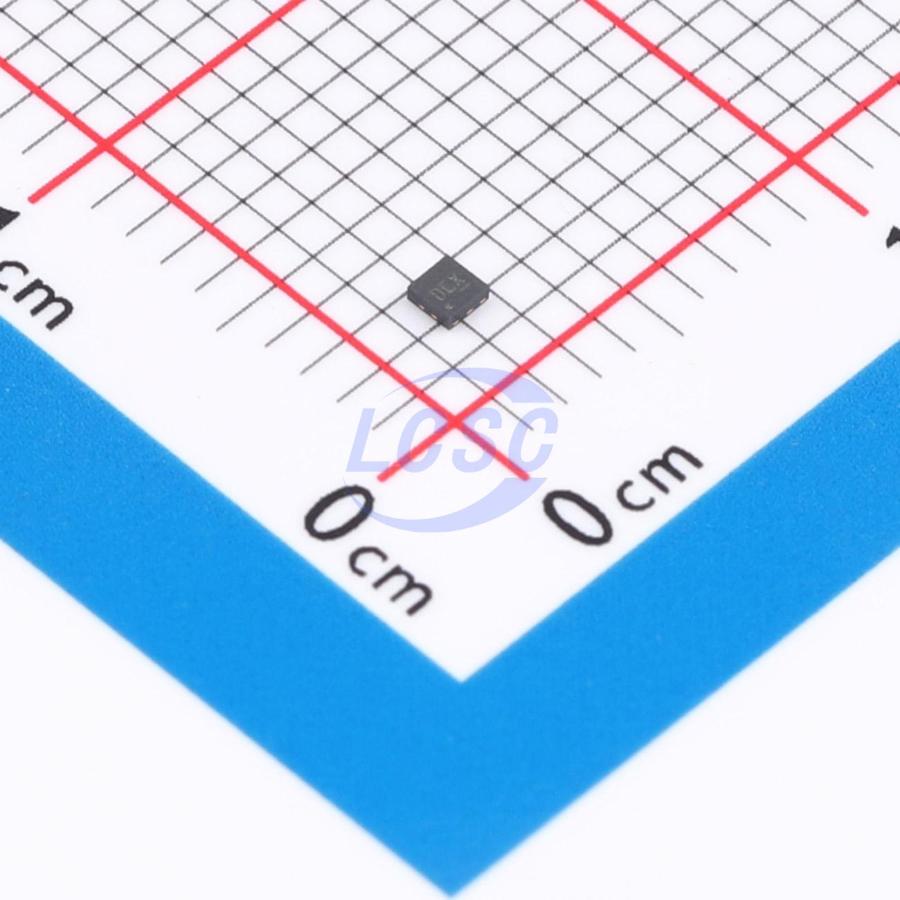

NCP176BMX120TCG
1.2V Positive Fixed XDFN-6(1.2x1.2) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
XDFN-6(1.2x1.2)ROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- NCP176BMX120TCG
- Store part #
- C892268
- Package / case
- XDFN-6(1.2x1.2)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
68 in stock
#C892268
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹58.36 | ₹58.36 |
| 10+ | ₹46.13 | ₹461.30 |
| 30+ | ₹40.76 | ₹1,222.80 |
| 100+ | ₹34.12 | ₹3,412.00 |
| 500+ | ₹31.33 | ₹15,665.00 |
| 1,000+ | ₹29.40 | ₹29,400.00 |
1 × ₹58.36
₹58.36
excl. GST
₹68.86 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NCP176BMX120TCG
₹58.36 for 1 + GST
Specifications
- Output Voltage
- 1.2V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Tj)
- Supply Current (Iq)
- 60uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 500mA
- Features
- Enable control;Over Current Protection;Built-in soft-start;Thermal shutdown;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.007 g
Overview
The NCP176 is CMOS LDO regulator featuring 500 mA output current. The input voltage is as low as 1.4 V and the output voltage can be set from 0.7 V.
Applications
- Battery Powered Equipment
- Portable Communication Equipment
- Cameras, Image Sensors and Camcorders
Key features
- Operating Input Voltage Range: 1.4 V to 5.5 V
- Output Voltage Range: 0.7 to 3.6 V (0.1 V steps)
- Quiescent Current typ. 60 μA
- Low Dropout: 130 mV typ. at 500 mA, VOUT = 2.5 V
- High Output Voltage Accuracy ±0.8% (ΔVOUT > 1.8 V)
- Stable with Small 1 μF Ceramic Capacitors
- Over−current Protection
- Built−in Soft Start Circuit to Suppress Inrush Current
- Thermal Shutdown Protection: 165 °C
- With (NCP176A) and Without (NCP176B) Output Discharge Function
- Available in XDFN6 1.2 mm x 1.2 mm x 0.4 mm Package
- These are Pb−free Devices
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NCP176AMX120TCG#C892264onsemi · XDFN-6-EP(1.2x1.2) | onsemi | XDFN-6-EP(1.2x1.2) | 1,000 | ₹49.48 · 1,000 in stock | View |
| NCP133AMX120TCG#C232431onsemi · XDFN-6(1.2x1.2) | onsemi | XDFN-6(1.2x1.2) | 100 | ₹51.73 · 100 in stock | View | |
| SGM2037-1.2XUDX6G/TR#C5152898SGMICRO · UTDFN-6L(1.2x1.2) | SGMICRO | UTDFN-6L(1.2x1.2) | On request | ₹45.55 · 0 in stock | View | |
| RP111L121D-TR#C7294484Nisshinbo Micro Devices Inc. · DFN1212-6 | Nisshinbo Micro Devices Inc. | DFN1212-6 | On request | ₹166.12 · 0 in stock | View | |
| NCV8133BMX120TCG#C893081onsemi · XDFN-6(1.2x1.2) | onsemi | XDFN-6(1.2x1.2) | On request | ₹22.58 · 0 in stock | View | |
