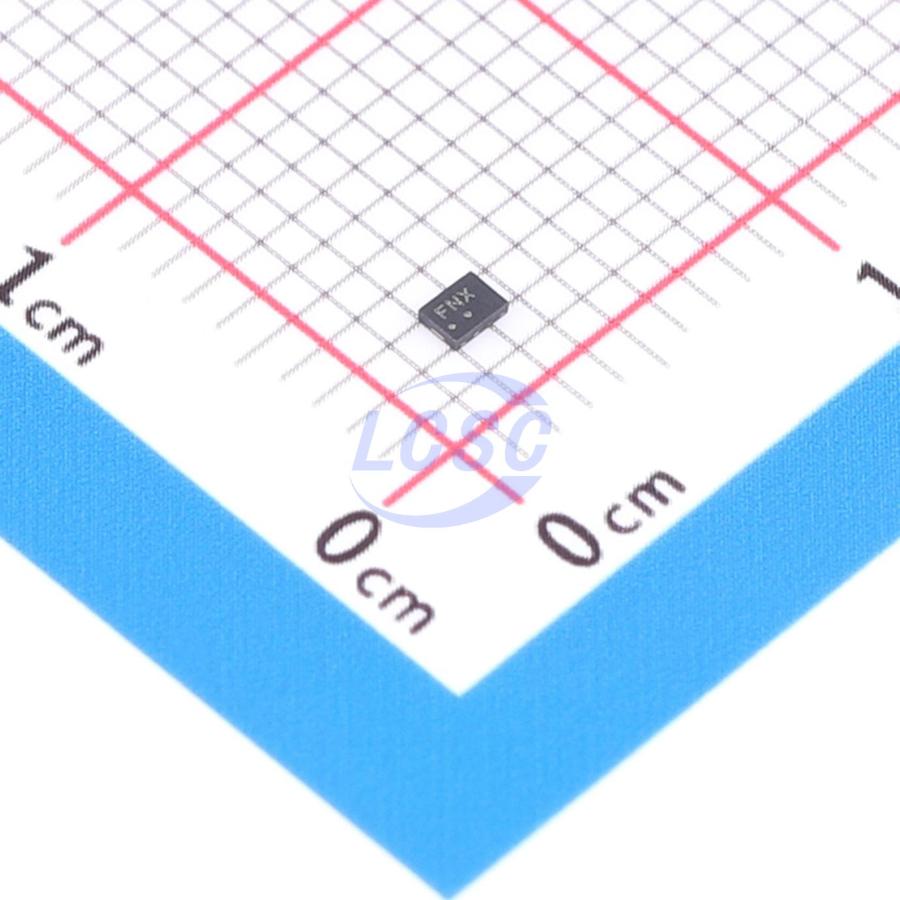

NCP186AMX150TAG
1.5V Positive Fixed XDFN-8-EP(1.2x1.6) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
XDFN-8-EP(1.2x1.6)ROHS3 CompliantActive
IC REG LINEAR 1.5V 1A XDFN-8-EP(1.2x1.6)
- Manufacturer
- onsemi
- Manufacturer part #
- NCP186AMX150TAG
- Store part #
- C892282
- Package / case
- XDFN-8-EP(1.2x1.6)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
125 in stock
#C892282
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.01 | ₹65.05 |
| 50+ | ₹12.71 | ₹635.50 |
| 150+ | ₹12.52 | ₹1,878.00 |
| 500+ | ₹12.32 | ₹6,160.00 |
5 × ₹13.01
₹65.05
excl. GST
₹76.76 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NCP186AMX150TAG
₹65.05 for 5 + GST
Specifications
- Output Voltage
- 1.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 90uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 1A
- Features
- Enable control;Built-in soft-start;Over Current Protection;Thermal shutdown;Output discharge;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.103 g
Overview
The NCP186x series are CMOS LDO regulators featuring 1 A output current. The input voltage is as low as 1.8 V and the output voltage can be set from 0.8 V.
Applications
- Battery Powered Equipment
- Portable Communication Equipment
- Cameras, Image Sensors and Camcorders
Key features
- Operating Input Voltage Range: 1.8 V to 5.5 V
- Output Voltage Range: 0.8 to 3.9 V
- Fixed or Adjustable Output Voltage Applications
- Quiescent Current typ. 90 μA
- Low Dropout: 100 mV typ. at 1 A, ΔV_OUT = 3.0 V
- High Output Voltage Accuracy ±1%
- Stable with Small 1 μF Ceramic Capacitors
- Over−current Protection
- Built−in Soft Start Circuit to Suppress Inrush Current
- Thermal Shutdown Protection: 165 ℃
- With (NCP186A) and Without (NCP186B) Output Discharge Function
- Available in XDFN8 1.2x1.6 mm & DFN12 4x4 mm Packages
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| NCP186BMX150TAG#C892290onsemi · XDFN-8-EP(1.2x1.6) | onsemi | XDFN-8-EP(1.2x1.6) | On request | ₹26.35 · 0 in stock | View | |
| RP115L151D-E2#C3747043Nisshinbo Micro Devices Inc. · DFN1216-8 | Nisshinbo Micro Devices Inc. | DFN1216-8 | On request | ₹54.27 · 0 in stock | View | |
