onsemiDatasheet (PDF)

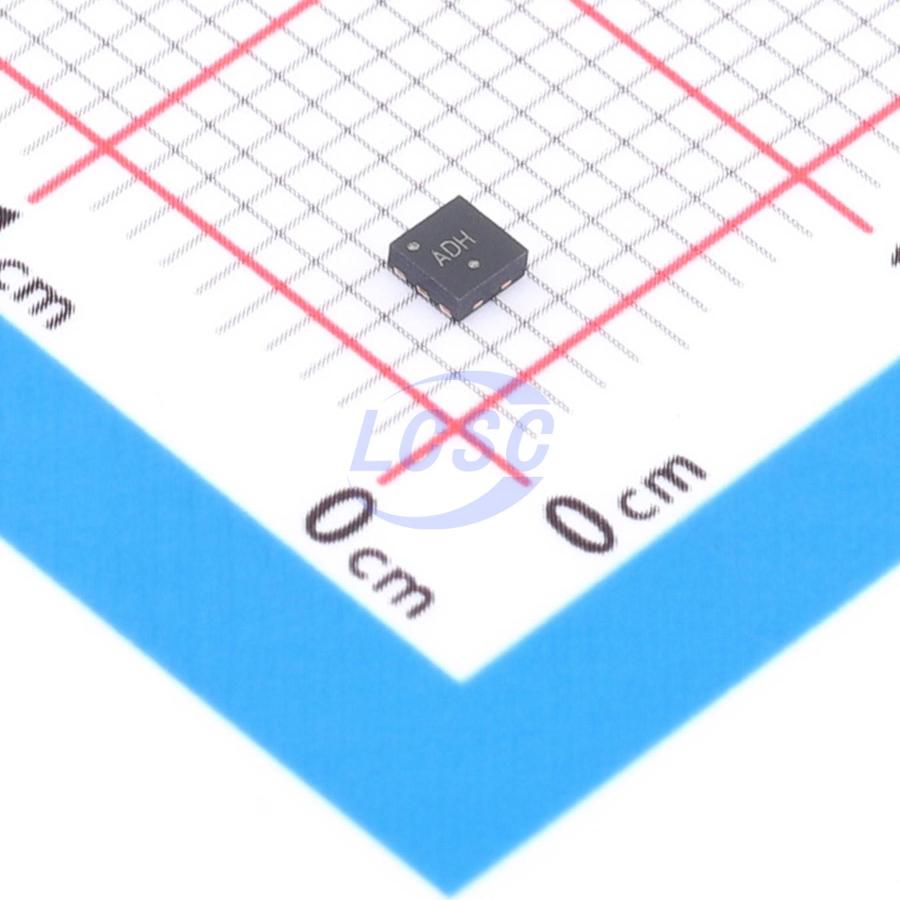

NCP189CMTW330TAG
3.3V Positive Fixed WDFNW-6 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
WDFNW-6ROHS3 CompliantActive
LDO Regulator, 0.5 A, High Accuracy, Adjustable, Low Noise, High PSRR with Power Good
- Manufacturer
- onsemi
- Manufacturer part #
- NCP189CMTW330TAG
- Store part #
- C5209178
- Package / case
- WDFNW-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
47 in stock
#C5209178
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹134.80 | ₹134.80 |
| 10+ | ₹107.59 | ₹1,075.90 |
| 30+ | ₹93.97 | ₹2,819.10 |
| 100+ | ₹80.58 | ₹8,058.00 |
| 500+ | ₹72.37 | ₹36,185.00 |
| 1,000+ | ₹68.27 | ₹68,270.00 |
1 × ₹134.80
₹134.80
excl. GST
₹159.06 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NCP189CMTW330TAG
₹134.80 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 55uA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 5.5V
- Output Type
- Fixed
- Features
- Enable control;Operating status indication;Input under-voltage protection;Short Circuit Protection;Over Current Protection;Thermal shutdown;Output discharge
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.414 g
Overview
The NCP189 is a 0.5 A LDO, next generation of high PSRR, low noise and low dropout regulators with Power Good open collector output. Designed to meet the requirements of RF and sensitive analog circuits, the NCP189 device provides low noise, high PSRR and low quiescent current while offering the ability to regulate output voltages down to 0.6 V. The device also offers excellent load / line transients. The NCP189 is designed to work with a 4.7 μF input and output ceramic capacitor. It is available in industry standard WDFNW6 0.65P, 2 mm x 2 mm.
Applications
- Communication Systems
- In Vehicle Networking
- Telematics, Infotainment and Clusters
- General Purpose Automotive
Key features
- Operating Input Voltage Range: 1.6 V to 5.5 V
- Available in Fixed Voltage Option: 0.6 V to 5.0 V
- Adjustable Version Reference Voltage: 0.6 V
- ±0.7% Initial Accuracy at 25°C
- ±1% Accuracy Over Load and Temperature
- Low Quiescent Current Typ. 35 μA
- Shutdown Current: Typ. 0.1 μA
- Very Low Dropout: Typ. 65 mV at 500 mA for 3.3 V Variant
- High PSRR: Typ. 85 dB at 100 mA, f = 1 kHz
- Low Noise: 10 μVRMS (Fixed Version)
- Stable with a 4.7 μF Small Case Size Ceramic Capacitors
- Controlled Output Voltage Slew Rate from 5 mV / s
- Available in WDFNW6 2 mm x 2 mm x 0.75 mm Case 511DW
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Co−mpliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| NCV8189CMTW330TAG#C5209194onsemi · WDFNW-6 | onsemi | WDFNW-6 | 79 | ₹83.02 · 79 in stock | View | |
