onsemiDatasheet (PDF)

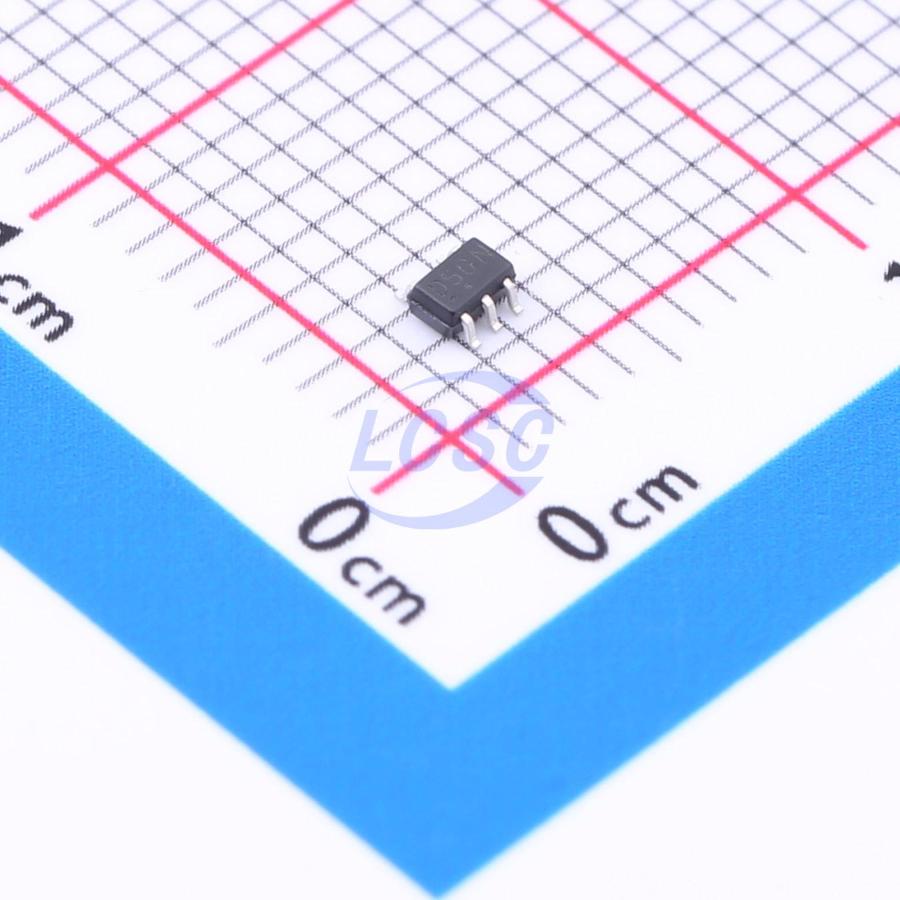

NCP508SQ33T1G
3.3V Positive Fixed SOT-353 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-353ROHS3 CompliantActive
Very Low Noise, Fast On, 50 mA Low Dropout Voltage Regulator
- Manufacturer
- onsemi
- Manufacturer part #
- NCP508SQ33T1G
- Store part #
- C154615
- Package / case
- SOT-353
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
193 in stock
#C154615
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹34.77 | ₹34.77 |
| 10+ | ₹33.91 | ₹339.10 |
| 30+ | ₹33.47 | ₹1,004.10 |
| 100+ | ₹33.04 | ₹3,304.00 |
1 × ₹34.77
₹34.77
excl. GST
₹41.03 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NCP508SQ33T1G
₹34.77 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 100nA
- Output Configuration
- Positive
- Output Current
- 50mA
- Operating Voltage
- 7V
- Features
- Enable control;Short Circuit Protection;Thermal shutdown;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.09 g
Overview
The NCP508 is a 50 mA low noise voltage regulator, designed to exhibit fast turn on time and high ripple rejection. Each device contains a voltage reference unit, an error amplifier, a PMOS power transistor, resistors for setting output voltage, current limit, and temperature limit protection circuits. The NCP508 has been designed for use with ceramic capacitors. The device is housed in SC−88A and WDFN6 1.5x1.5 packages. Standard voltage versions are 1.5, 1.8, 2.5, 2.8, 3.0, and 3.3. Other voltages are available in 100 mV steps.
Applications
- RF Subsystems in Handsets
- Noise Sensitive Circuits; VCOs, PLL
Key features
- Very Low Noise at 39 μVrms without a Bypass Capacitor
- High Ripple Rejection of 70 dB at 1 kHz
- Low Dropout Voltage of 140 mV (typ) at 30 mA
- Tight Load Regulation, typically 6 mV for ΔIout = 50 mA
- Fast Enable Turn−On time of 20 μsec
- Logic Level Enable
- ESR can vary from a few mΩ to 3 Ω
- These are Pb−Free Devices
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LW3133NW5E#C51953205Lewa Micro · SOT-353 | Lewa Micro | SOT-353 | 2,940 | ₹7.66 · 2,940 in stock | View |
 | TPS71533DCKR-TP#C7202974TECH PUBLIC · SC-70-5 | TECH PUBLIC | SC-70-5 | 645 | ₹28.05 · 645 in stock | View |
 | STLQ50C33R#C2688587ST · SC-70-5 | ST | SC-70-5 | 1,706 | ₹35.36 · 1,706 in stock | View |
 | TPS71433DCKR#C53353TI · SC-70-5 | TI | SC-70-5 | 334 | ₹100.93 · 334 in stock | View |
 | MIC5213-3.3YC5-TR#C625844MICROCHIP · SC-70-5 | MICROCHIP | SC-70-5 | 104 | ₹192.06 · 104 in stock | View |
