onsemiDatasheet (PDF)

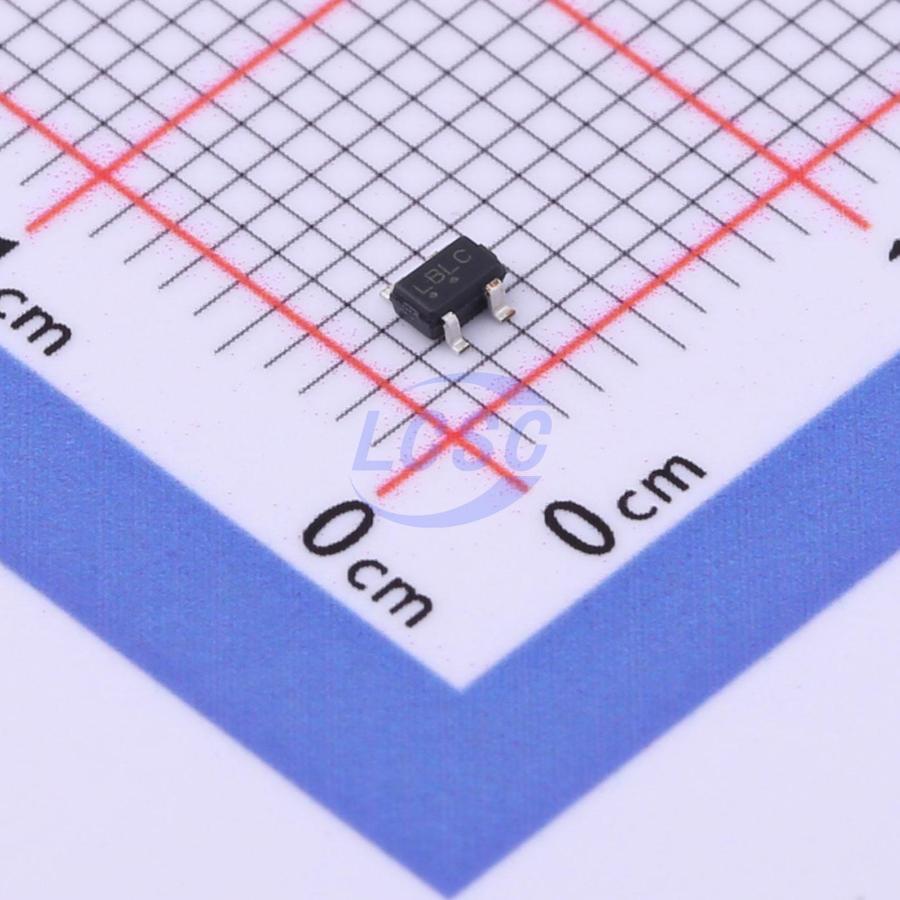

NCP553SQ50T1G
5V Positive Fixed SC-82AB Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SC-82ABROHS3 CompliantActive
Voltage regulator
- Manufacturer
- onsemi
- Manufacturer part #
- NCP553SQ50T1G
- Store part #
- C892557
- Package / case
- SC-82AB
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6 in stock
#C892557
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹112.90 | ₹112.90 |
| 10+ | ₹91.78 | ₹917.80 |
| 30+ | ₹81.22 | ₹2,436.60 |
| 100+ | ₹70.87 | ₹7,087.00 |
| 500+ | ₹64.58 | ₹32,290.00 |
| 1,000+ | ₹61.32 | ₹61,320.00 |
1 × ₹112.90
₹112.90
excl. GST
₹133.22 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NCP553SQ50T1G
₹112.90 for 1 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 2.8uA
- Output Configuration
- Positive
- Output Current
- 80mA
- Operating Voltage
- 12V
- Features
- Enable control;Thermal shutdown;Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.03 g
Overview
This series of fixed output NOCAP linear regulators are designed for handheld communication equipment and portable battery powered applications which require low quiescent. This series features an ultra−low quiescent current of 2.8 μA. Each device contains a voltage reference unit, an error amplifier, a PMOS power transistor, resistors for setting output voltage, current limit, and temperature limit protection circuits. These voltage regulators have been designed to be used with low cost ceramic capacitors. The devices have the ability to operate without an output capacitor. The devices are housed in the micro−miniature SC82−AB surface mount package. Standard voltage versions are 1.5, 1.8, 2.5, 2.7, 2.8, 3.0, 3.3, and 5.0 V. Other voltages are available in 100 mV steps.
Applications
- Battery Powered Consumer Products
- Hand−Held Instruments
- Camcorders and Cameras
Key features
- Low Quiescent Current of 2.8 μA Typical
- Low Output Voltage Option
- Output Voltage Accuracy of 2.0%
- Industrial Temperature Range of -40°C to 85°C (NCV553, TA = -40°C to +125°C)
- These are Pb−Free Devices
- NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
