onsemi

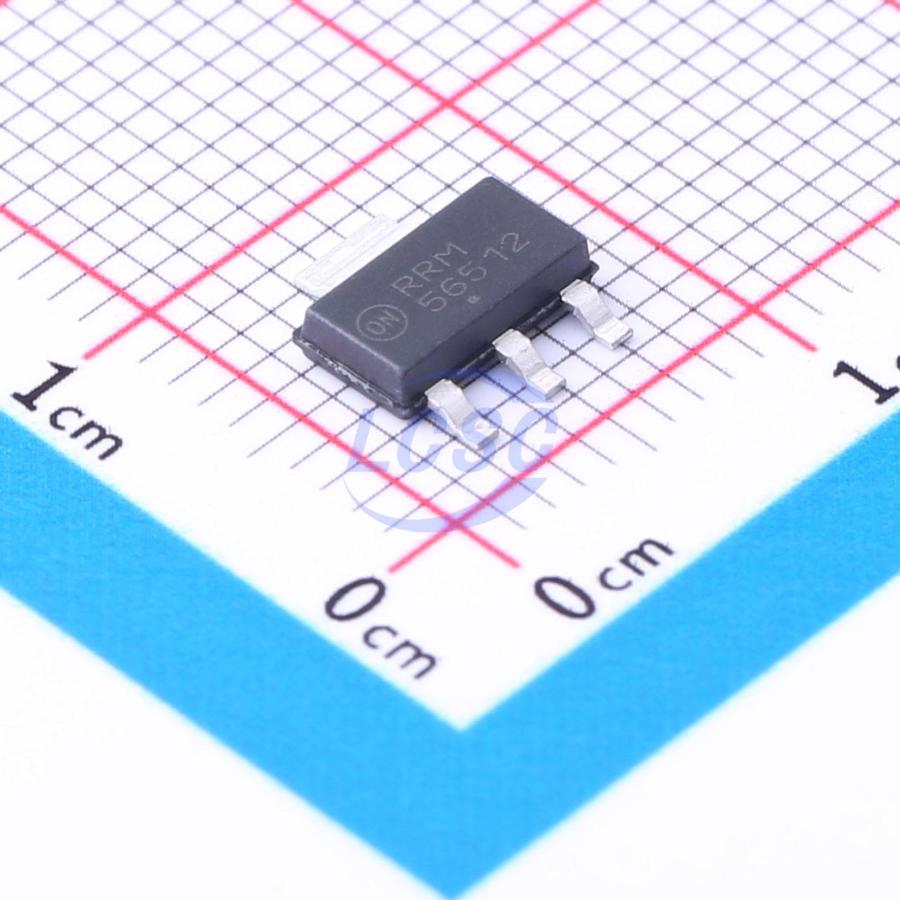

NCP565ST12T3G

1.2V Positive Fixed SOT-223 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

SOT-223ROHS3 CompliantActive

Manufacturer: onsemi
Manufacturer part #: NCP565ST12T3G
Store part #: C556400
Package / case: SOT-223
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

28 in stock

#C556400

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
1+	₹105.38	₹105.38
10+	₹102.77	₹1,027.70
30+	₹101.26	₹3,037.80
100+	₹99.53	₹9,953.00

Quantity (min 1)

1 × ₹105.38

₹105.38

excl. GST

₹124.35 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 4,000 per reel

NCP565ST12T3G

₹105.38 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 1.2V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Ta)
Supply Current (Iq): 1.5mA
Output Configuration: Positive
Operating Voltage: 9V
Output Current: 1.5A
Features: Over Current Protection;Short Circuit Protection;Thermal shutdown
Output Type: Fixed

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.215 g

Overview

The NCP565/NCV565 low dropout linear regulator will provide 1.5 A at a fixed output voltage or an adjustable voltage down to 0.9 V. The fast loop response and low dropout voltage make this regulator ideal for applications where low voltage and good load transient response are important. Device protection includes current limit, short circuit protection, and thermal shutdown.

Applications

Servers
ASIC Power Supplies
Post Regulation for Power Supplies
Constant Current Source

Key features

Ultra Fast Transient Response (<1.0 μs)
Low Ground Current (1.5 mA at Iload = 1.5 A)
Low Dropout Voltage (0.9 V at Iload = 1.5 A)
Low Noise (28 μVrms)
0.9 V Reference Voltage
Adjustable Output Voltage from 7.7 V down to 0.9 V
1.2 V, 1.5 V, 2.8 V, 3.0 V, 3.3 V Fixed Output Versions. Other Fixed Voltages Available on Request
Current Limit Protection (3.3 A Typ)
Thermal Shutdown Protection (160°C)
NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
These are Pb−Free Devices
