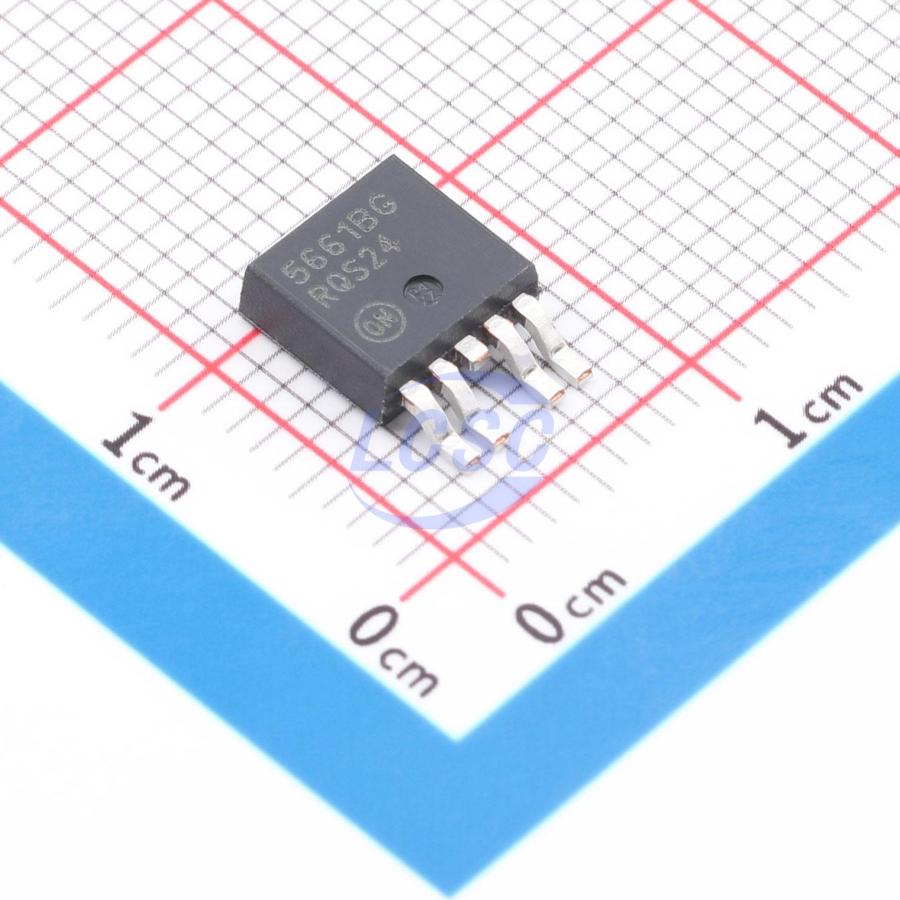

NCP5661DT12RKG

The NCP5661/NCV5661 is a high performance, low dropout linear regulator designed for high power applications that require up to 1.0 A current. It is offered in both fixed and adjustable output versions. With output voltages as low as 0.9 V and ultra−fast response times for load transients, the NCP5661/NCV5661 also provides additional features such as Enable and Error Flag (for the fixed output version), increasing the utility of these devices. A thermally robust, 5 pin DPAK or DFN 3x3.3 mm, combined with an architecture that offers low ground current (independent of load), provides for a superior high−current LDO solution.

Applications

• Servers
• ASIC Power Supplies
• Post Regulation for Power Supplies
• Constant Current Source
• Networking Equipment
• Gaming and STB Modules

Key features

• Ultra−Fast Transient Response (Settling Time: 1 - 3 μs)
• Low Noise Without Bypass Capacitor (26 μVrms)
• Low Ground Current Independent of Load (3.0 mA Maximum)
• Fixed/Adjustable Output Voltage Versions
• Enable Function
• Error Flag (Fixed Output Version)
• Current Limit Protection
• Thermal Protection
• 0.9 V Reference Voltage for Ultra−Low Output Operation
• Power Supply Rejection Ratio > 65 dB
• NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
• These are Pb−Free Devices
