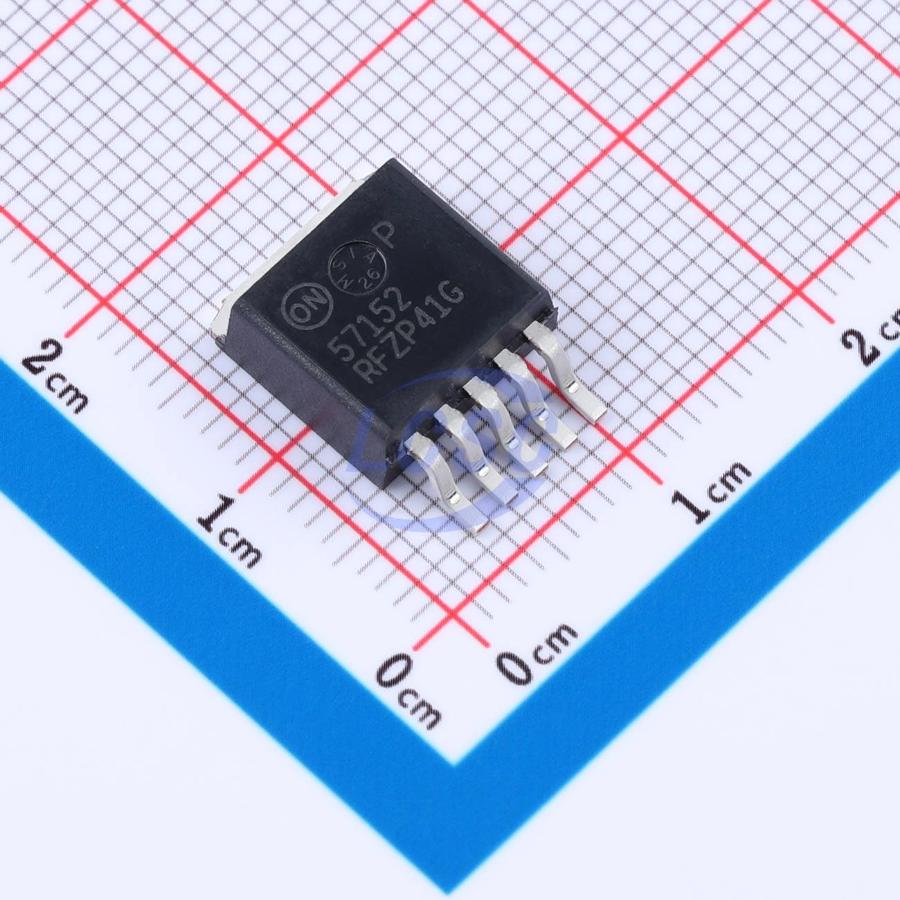

NCP57152DSADJR4G

The NCP57152 is a high precision, very low dropout (VLDO), low minimum input voltage and low ground current positive voltage regulator that is capable of providing an output current in excess of 1.5 A with a typical dropout voltage of 330 mV at 1.5 A load current and input voltage from 1.8 V and up. The devices are stable with ceramic output capacitors. The device can withstand up to 18 V max input voltage. Internal protection features consist of output current limiting, thermal shutdown and reverse output current protection. Logic level enable and error flag pins are available. The NCP57152 is an Adjustable Voltage device and is available in D2PAK−5 and DFN8 packages.

Applications

• Consumer and Industrial Equipment Point of Regulation
• Servers and Networking Equipment
• FPGA, DSP and Logic Power Supplies
• Switching Power Supply Post Regulation
• Battery Chargers
• Functional Replacement for Industry Standard MIC29150, MIC39150, MIC37150 with Improved Minimum Input Voltage Specification

Key features

• Output Current in Excess of 1.5 A
• Minimum Operating Input Voltage 1.8 V for Full 1.5 A Output Current
• 330 mV Typical Dropout Voltage at 1.5 A
• Adjustable Output Voltage Range from 1.24 V to 13 V
• Low Ground Current
• Fast Transient Response
• Stable with Ceramic Output Capacitor
• Logic Compatible Enable and Error Flag Pins
• Current Limit, Reverse Current and Thermal Shutdown Protection
• Operation up to 13.5 V Input Voltage
• NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
• These are Pb−Free Devices
