onsemiDatasheet (PDF)

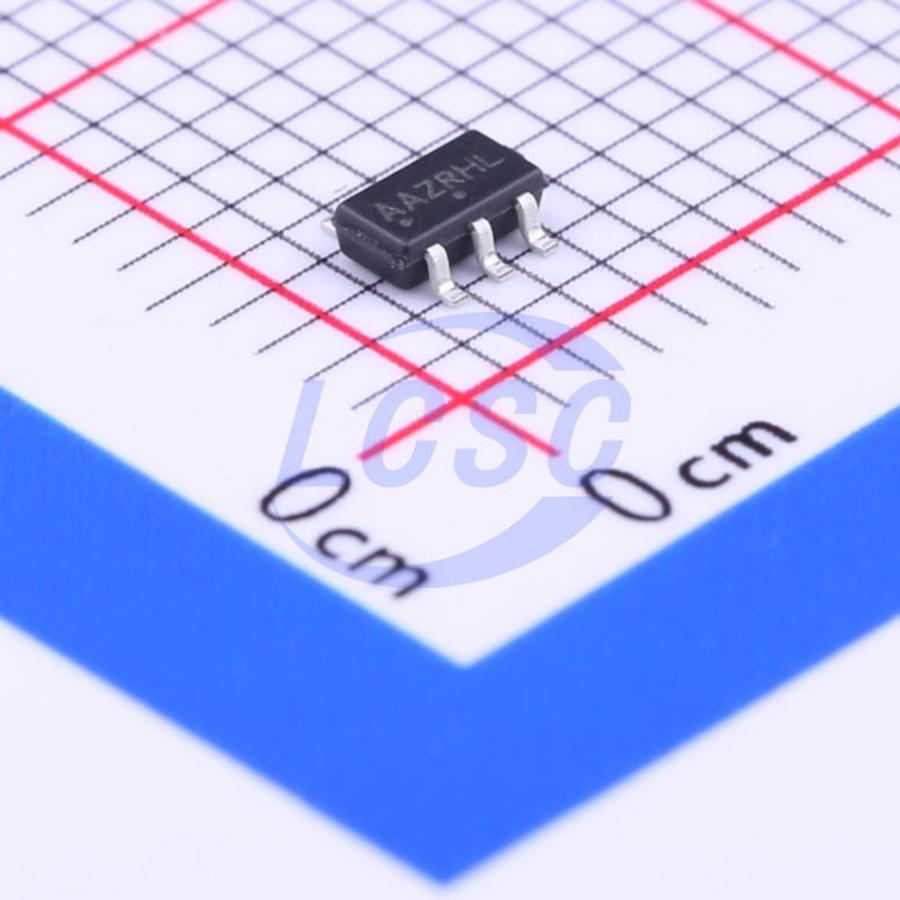

NCP603SN330T1G
3.3V Positive Fixed TSOP-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TSOP-5ROHS3 CompliantActive
LDO Regulator - High Performance, CMos, Enable, Enhanced ESD
- Manufacturer
- onsemi
- Manufacturer part #
- NCP603SN330T1G
- Store part #
- C233367
- Package / case
- TSOP-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,158 in stock
#C233367
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹81.19 | ₹81.19 |
| 10+ | ₹66.18 | ₹661.80 |
| 30+ | ₹58.77 | ₹1,763.10 |
| 100+ | ₹51.37 | ₹5,137.00 |
| 500+ | ₹46.81 | ₹23,405.00 |
| 1,000+ | ₹44.62 | ₹44,620.00 |
1 × ₹81.19
₹81.19
excl. GST
₹95.80 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NCP603SN330T1G
₹81.19 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Ta)
- Supply Current (Iq)
- 145uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 9V
- Features
- Enable control;Short Circuit Protection;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.038 g
Overview
The NCP603 provides 300 mA of output current at fixed voltage options, or an adjustable output voltage from 5.0 V down to 1.250 V. It is designed for portable battery powered applications and offers high performance features such as low power operation, fast enable response time, and low dropout. The device is designed to be used with low cost ceramic capacitors and is packaged in the TSOP−5/SOT23−5.
Applications
- SMPS Post−Regulation
- Hand−held Instrumentation & Audio Players
- Noise Sensitive Circuits – VCO, RF Stages, etc.
- Camcorders and Cameras
- Portable Computing
Key features
- Output Voltage Options: Adjustable, 1.3 V, 1.5 V, 1.8 V, 2.5 V, 2.8 V, 3.0 V, 3.3 V, 3.5 V, 5.0 V
- Adjustable Output by External Resistors from 5.0 V down to 1.250 V
- Fast Enable Turn−on Time of 15 μs
- Wide Supply Voltage Range Operating Range
- Excellent Line and Load Regulation
- Typical Noise Voltage of 50 μVrms without a Bypass Capacitor
- Enhanced ESD Protection (HBM 3.5 kV, MM 200 V)
- These are Pb−Free Devices
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AP2125K-3.3TRG1#C110463DIODES · SOT-23-5 | DIODES | SOT-23-5 | 2,060 | ₹10.86 · 2,060 in stock | View |
 | TPXC6219B332MR#C2841430TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 3,780 | ₹9.74 · 3,780 in stock | View |
 | SPX3819M5-L-3-3/TR#C9055MaxLinear · SOT-23-5 | MaxLinear | SOT-23-5 | 39,770 | ₹40.27 · 39,770 in stock | View |
 | TPL803233-S5TR#C224192823PEAK · SOT-23-5 | 3PEAK | SOT-23-5 | 752 | ₹101.62 · 752 in stock | View |
 | RT9193-33GB-MS#C7528825MSKSEMI · SOT-23-5 | MSKSEMI | SOT-23-5 | 43,980 | ₹7.55 · 43,980 in stock | View |
