onsemi

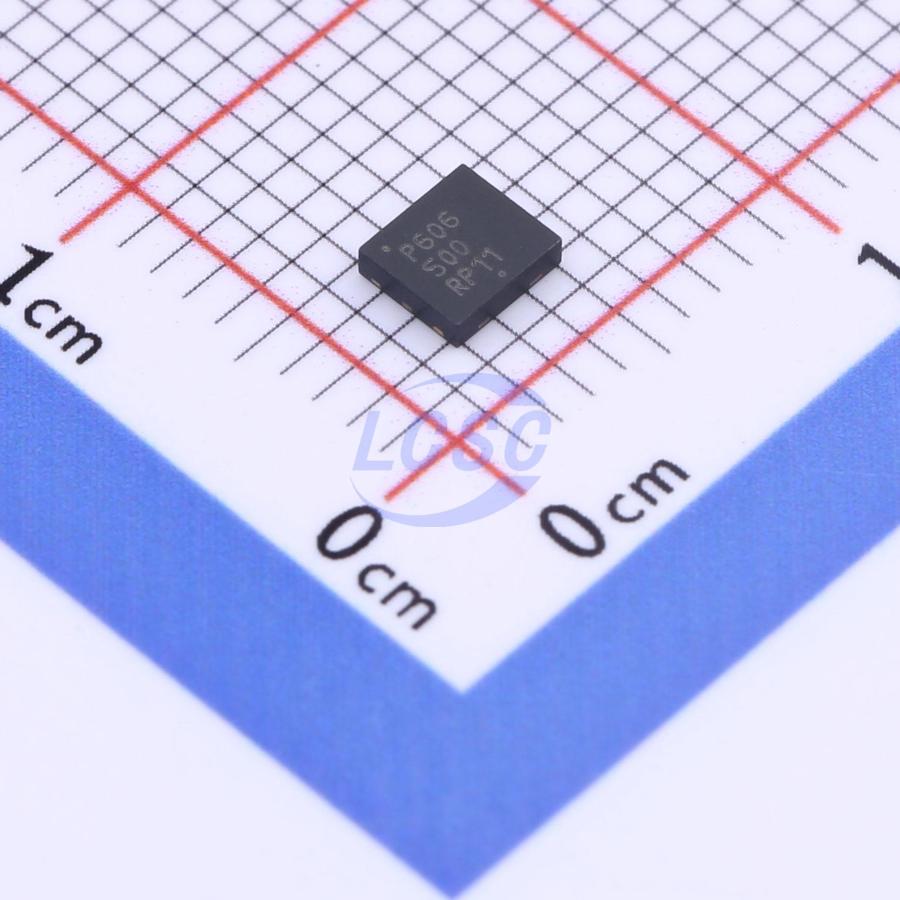

NCP606MN50T2G

5V Positive Fixed DFN-6(3x3.3) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

DFN-6(3x3.3)ROHS3 CompliantActive

LDO Regulator - Low IGND, CMos with/without Enable and with Enhanced 500 mA

Manufacturer: onsemi
Manufacturer part #: NCP606MN50T2G
Store part #: C464054
Package / case: DFN-6(3x3.3)
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

6 in stock

#C464054

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
1+	₹91.31	₹91.31
10+	₹89.49	₹894.90
30+	₹88.26	₹2,647.80
100+	₹86.84	₹8,684.00

Quantity (min 1)

1 × ₹91.31

₹91.31

excl. GST

₹107.75 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

NCP606MN50T2G

₹91.31 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 5V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Ta)
Supply Current (Iq): 145uA
Output Configuration: Positive
Output Current: 675mA
Operating Voltage: 6V
Features: Enable control;Short Circuit Protection;Thermal shutdown
Output Type: Fixed

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.062 g

Overview

The NCP605/NCP606 provide in excess of 500 mA of output current at fixed voltage options or an adjustable output voltage from 5.0 V down to 1.25 V. These devices are designed for space constrained and portable battery powered applications and offer additional features such as high PSRR, low noise operation, short circuit and thermal protection. The devices are designed to be used with low cost ceramic capacitors and are packaged in the DFN6 3x3.3. NCP605 is designed without enable pin, NCP606 is designed with enable pin.

Applications

Hard Disk Drivers
Notebook Computers
Battery Power Electronics
Portable Instrumentation

Key features

Output Voltage Options: Adjustable, 1.5 V, 1.8 V, 2.5 V, 2.8 V, 3.0 V, 3.3 V, 5.0 V
Adjustable Output by External Resistors from 5.0 V down to 1.25 V
Current Limit 675 mA
Low IGND (Independent of Load)
±1.5% Output Voltage Tolerance Over All Operating Conditions (Adjustable)
±2% Output Voltage Tolerance Over All Operating Conditions (Fixed)
NCP605 Fixed is Direct Replacement LP8345
Typical Noise Voltage of 50 μVrms without a Bypass Capacitor
Enhanced ESD Ratings: 4 kV Human Body Mode (HBM), 200 V Machine Model (MM)
These are Pb-Free Devices
