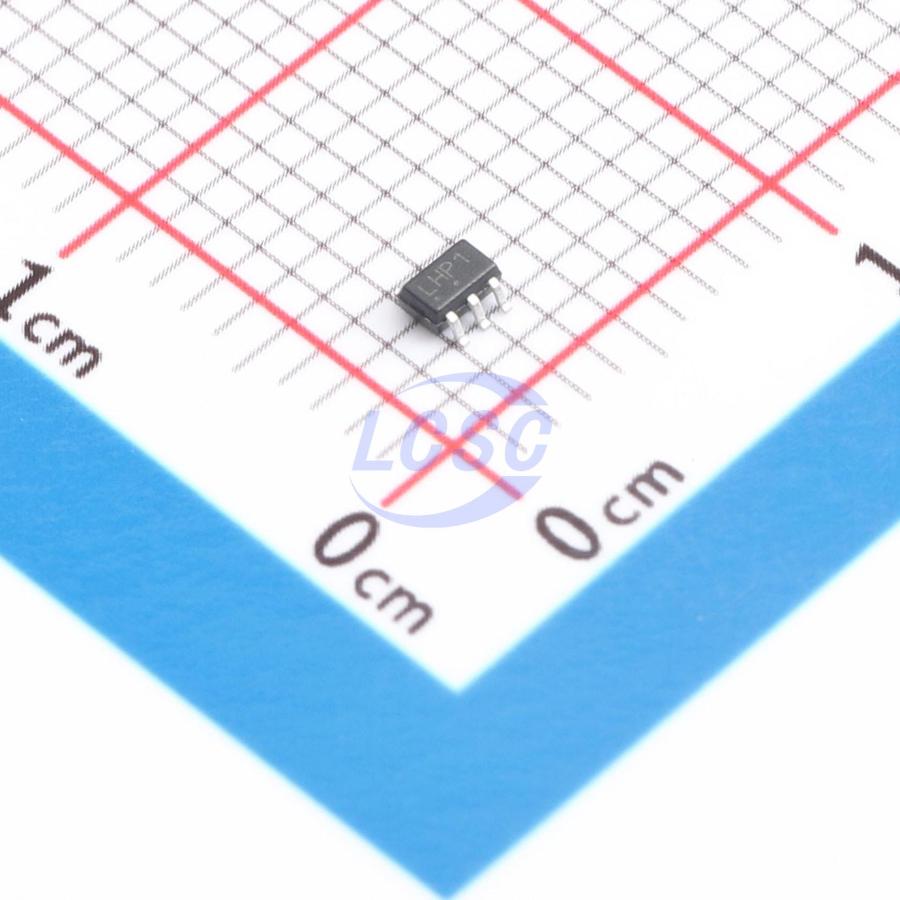

NCP612SQ18T2G

The NCP612/NCV612 series of fixed output linear regulators are designed for handheld communication equipment and portable battery powered applications which require low quiescent. The NCP612/NCV612 series features an ultra−low quiescent current of 40 μA. Each device contains a voltage reference unit, an error amplifier, a PMOS power transistor, resistors for setting output voltage, current limit, and temperature limit protection circuits. The NCP612/NCV612 has been designed to be used with low cost ceramic capacitors. The device is housed in the micro−miniature SC70−5 surface mount package. Standard voltage versions are 1.5, 1.8, 2.5, 2.7, 2.8, 3.0, 3.1, 3.3, 3.7, and 5.0 V.

Applications

• Cellular Phones
• Battery Powered Consumer Products
• Hand−Held Instruments
• Camcorders and Cameras

Key features

• Low Quiescent Current of 40 μA Typical
• Low Dropout Voltage of 230 mV at 100 mA and 3.0 V Vout
• Low Output Voltage Option
• Output Voltage Accuracy of 2.0%
• Temperature Range of -40°C to 85°C (NCP612) Temperature Range of -40°C to 125°C (NCV612)
• NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
• These are Pb−Free Devices
