onsemiDatasheet (PDF)

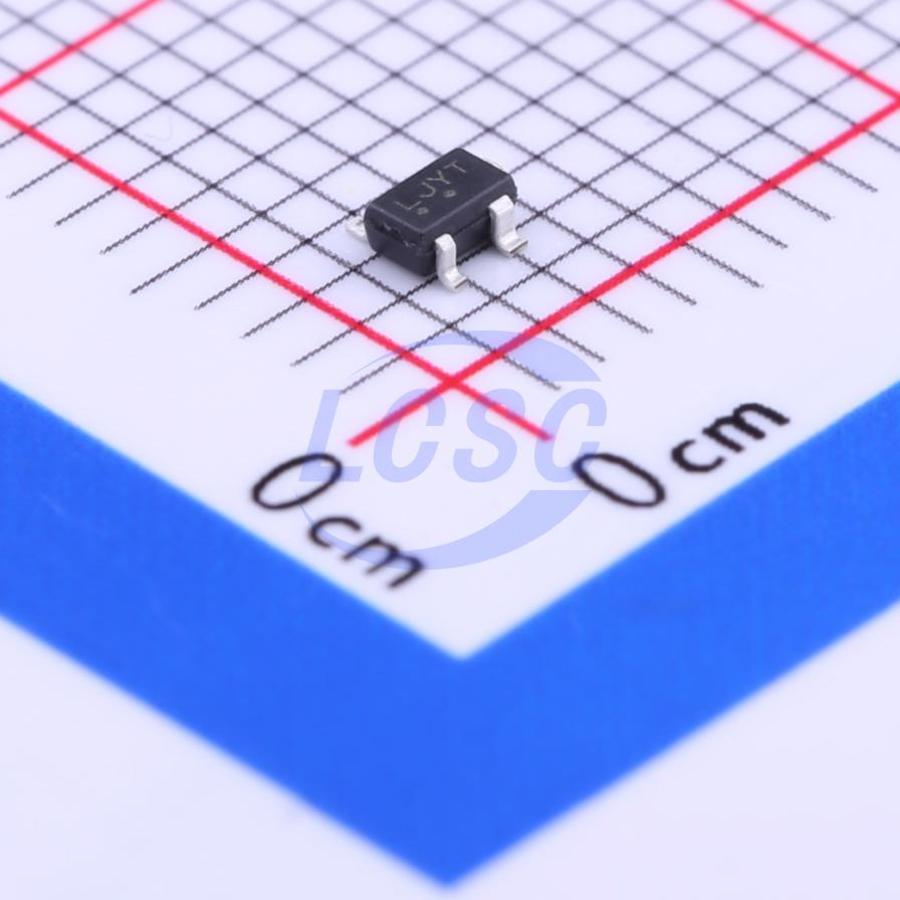

NCP698SQ18T1G
1.8V Positive Fixed SC-82AB Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SC-82ABROHS3 CompliantActive
LDO Regulator - CMos, 150 mA
- Manufacturer
- onsemi
- Manufacturer part #
- NCP698SQ18T1G
- Store part #
- C233415
- Package / case
- SC-82AB
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C233415
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹48.00 | ₹240.00 |
| 50+ | ₹38.10 | ₹1,905.00 |
| 150+ | ₹33.86 | ₹5,079.00 |
| 500+ | ₹28.56 | ₹14,280.00 |
| 3,000+ | ₹26.20 | ₹78,600.00 |
| 6,000+ | ₹24.78 | ₹1,48,680.00 |
5 × ₹48.00
₹240.00
excl. GST
₹283.20 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NCP698SQ18T1G
₹240.00 for 5 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 2.5uA
- Output Configuration
- Positive
- Output Current
- 150mA
- Operating Voltage
- 6V
- Features
- Enable control;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.029 g
Overview
This series of fixed output low−dropout linear regulators are designed for handheld communication equipment and portable battery powered applications which require low quiescent and ground current. This series features an ultra−low quiescent current of 2.5 μA. Each device contains a voltage reference unit, an error amplifier, a PMOS power transistor, resistors for setting output voltage, current limit, and temperature limit protection circuits. The NCP698 series provides an enable pin for ON/OFF control. The NCP698 has been designed to be used with low cost ceramic capacitors and requires a minimum output capacitor of 0.1 μF. The device is housed in the micro−miniature SC82−AB surface mount package. Standard voltage versions are 1.3, 1.5, 1.8, 2.5, 2.8, 3.0, 3.3, 3.5 and 5.0 V. Other voltages are available in 100 mV steps.
Applications
- Battery Powered Instruments
- Hand−Held Instruments
- Camcorders and Cameras
Key features
- Ultra Low Quiescent Current of 2.5 μA Typical
- Output Voltage Accuracy of 2.0%
- Operating Temperature Range of -40°C to 85°C
- Enable Function
- This is a Pb−Free Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| R1180Q181B-TR-FE#C5853670Nisshinbo Micro Devices Inc. · SC-82AB | Nisshinbo Micro Devices Inc. | SC-82AB | On request | ₹66.36 · 0 in stock | View | |
| R1180Q181C-TR-FE#C6636483Nisshinbo Micro Devices Inc. · SC-82AB | Nisshinbo Micro Devices Inc. | SC-82AB | On request | ₹66.37 · 0 in stock | View | |
| XC6218P182NR-G#C3749553TOREX · SSOT-24 | TOREX | SSOT-24 | On request | ₹32.69 · 0 in stock | View | |
| XC6215B182NR-G#C6754444TOREX · SSOT-24 | TOREX | SSOT-24 | On request | ₹36.46 · 0 in stock | View | |
| XC6504A181NR-G#C6933748TOREX · SSOT-24 | TOREX | SSOT-24 | On request | ₹37.86 · 0 in stock | View | |
