onsemiDatasheet (PDF)

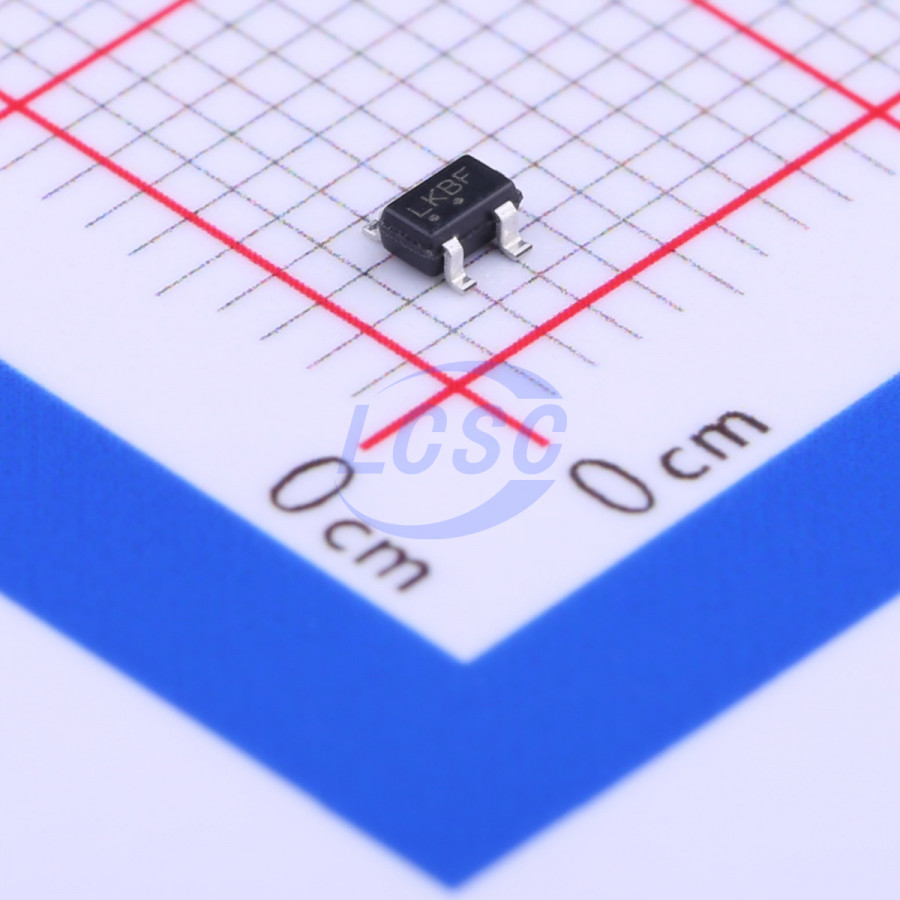

NCP698SQ33T1G
3.3V Positive Fixed SC-82AB Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SC-82ABROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- NCP698SQ33T1G
- Store part #
- C141814
- Package / case
- SC-82AB
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,665 in stock
#C141814
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹53.93 | ₹53.93 |
| 10+ | ₹41.97 | ₹419.70 |
| 30+ | ₹36.75 | ₹1,102.50 |
| 100+ | ₹30.44 | ₹3,044.00 |
| 500+ | ₹27.40 | ₹13,700.00 |
| 1,000+ | ₹25.67 | ₹25,670.00 |
1 × ₹53.93
₹53.93
excl. GST
₹63.64 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NCP698SQ33T1G
₹53.93 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 2.5uA
- Output Configuration
- Positive
- Output Current
- 150mA
- Operating Voltage
- 6V
- Features
- Enable control;Thermal shutdown;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.029 g
Overview
This series of fixed output low−dropout linear regulators are designed for handheld communication equipment and portable battery powered applications which require low quiescent and ground current. This series features an ultra−low quiescent current of 2.5 μA. Each device contains a voltage reference unit, an error amplifier, a PMOS power transistor, resistors for setting output voltage, current limit, and temperature limit protection circuits. The NCP698 series provides an enable pin for ON/OFF control. The NCP698 has been designed to be used with low cost ceramic capacitors and requires a minimum output capacitor of 0.1 μF. The device is housed in the micro−miniature SC82−AB surface mount package. Standard voltage versions are 1.3, 1.5, 1.8, 2.5, 2.8, 3.0, 3.3, 3.5 and 5.0 V. Other voltages are available in 100 mV steps.
Applications
- Battery Powered Instruments
- Hand−Held Instruments
- Camcorders and Cameras
Key features
- Ultra Low Quiescent Current of 2.5 μA Typical
- Output Voltage Accuracy of 2.0%
- Operating Temperature Range of -40°C to 85°C
- Enable Function
- This is a Pb−Free Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | XC6215B332NR-G#C6334251TOREX · SSOT-24 | TOREX | SSOT-24 | 1 | ₹99.24 · 1 in stock | View |
 | XC6504A331NR-G#C19231028TOREX · SSOT-24 | TOREX | SSOT-24 | 3 | ₹72.71 · 3 in stock | View |
| UM1560P-33#C19191866Union Semiconductor · SOT-343 | Union Semiconductor | SOT-343 | On request | ₹35.51 · 0 in stock | View | |
 | NCP583SQ33T1G#C184012onsemi · SC-82AB | onsemi | SC-82AB | On request | ₹64.15 · 0 in stock | View |
| R1180Q331C-TR-FE#C6164038Nisshinbo Micro Devices Inc. · SC-82AB | Nisshinbo Micro Devices Inc. | SC-82AB | On request | ₹23.48 · 0 in stock | View | |
