onsemiDatasheet (PDF)

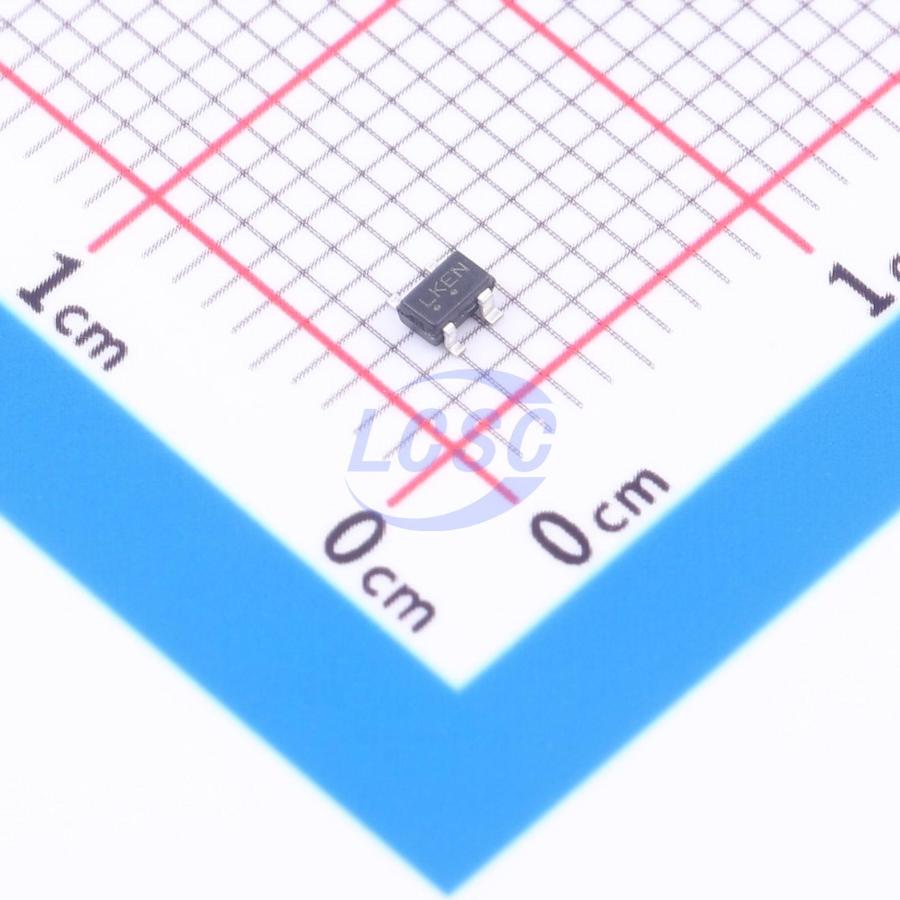

NCP698SQ35T1G
3.5V Positive Fixed SC-82AB Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SC-82ABROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- NCP698SQ35T1G
- Store part #
- C892670
- Package / case
- SC-82AB
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C892670
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹57.03 | ₹57.03 |
| 10+ | ₹44.89 | ₹448.90 |
| 30+ | ₹39.69 | ₹1,190.70 |
| 100+ | ₹33.39 | ₹3,339.00 |
| 500+ | ₹30.57 | ₹15,285.00 |
| 1,000+ | ₹28.84 | ₹28,840.00 |
1 × ₹57.03
₹57.03
excl. GST
₹67.30 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NCP698SQ35T1G
₹57.03 for 1 + GST
Specifications
- Output Voltage
- 3.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 2.5uA
- Output Configuration
- Positive
- Operating Voltage
- 6V
- Output Current
- 150mA
- Features
- Enable control;Thermal shutdown;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.039 g
Overview
This series of fixed output low−dropout linear regulators are designed for handheld communication equipment and portable battery powered applications which require low quiescent and ground current. This series features an ultra−low quiescent current of 2.5 μA. Each device contains a voltage reference unit, an error amplifier, a PMOS power transistor, resistors for setting output voltage, current limit, and temperature limit protection circuits. The NCP698 series provides an enable pin for ON/OFF control. The NCP698 has been designed to be used with low cost ceramic capacitors and requires a minimum output capacitor of 0.1 μF. The device is housed in the micro−miniature SC82−AB surface mount package. Standard voltage versions are 1.3, 1.5, 1.8, 2.5, 2.8, 3.0, 3.3, 3.5 and 5.0 V. Other voltages are available in 100 mV steps.
Applications
- Battery Powered Instruments
- Hand−Held Instruments
- Camcorders and Cameras
Key features
- Ultra Low Quiescent Current of 2.5 μA Typical
- Output Voltage Accuracy of 2.0%
- Operating Temperature Range of -40°C to 85°C
- Enable Function
- This is a Pb−Free Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| XC6215B352NR-G#C5834626TOREX · SSOT-24 | TOREX | SSOT-24 | On request | ₹83.20 · 0 in stock | View | |
| R1180Q351B-TR-FE#C3748657Nisshinbo Micro Devices Inc. · SC-82AB | Nisshinbo Micro Devices Inc. | SC-82AB | On request | ₹33.67 · 0 in stock | View | |
| XC6218P352NR-G#C6359125TOREX · SSOT-24 | TOREX | SSOT-24 | On request | ₹75.79 · 0 in stock | View | |
| XC6504A351NR-G#C7123463TOREX · SSOT-24 | TOREX | SSOT-24 | On request | ₹53.87 · 0 in stock | View | |
| RP130Q351D-TR-FE#C5865222Nisshinbo Micro Devices Inc. · SC-82AB | Nisshinbo Micro Devices Inc. | SC-82AB | On request | ₹75.19 · 0 in stock | View | |
