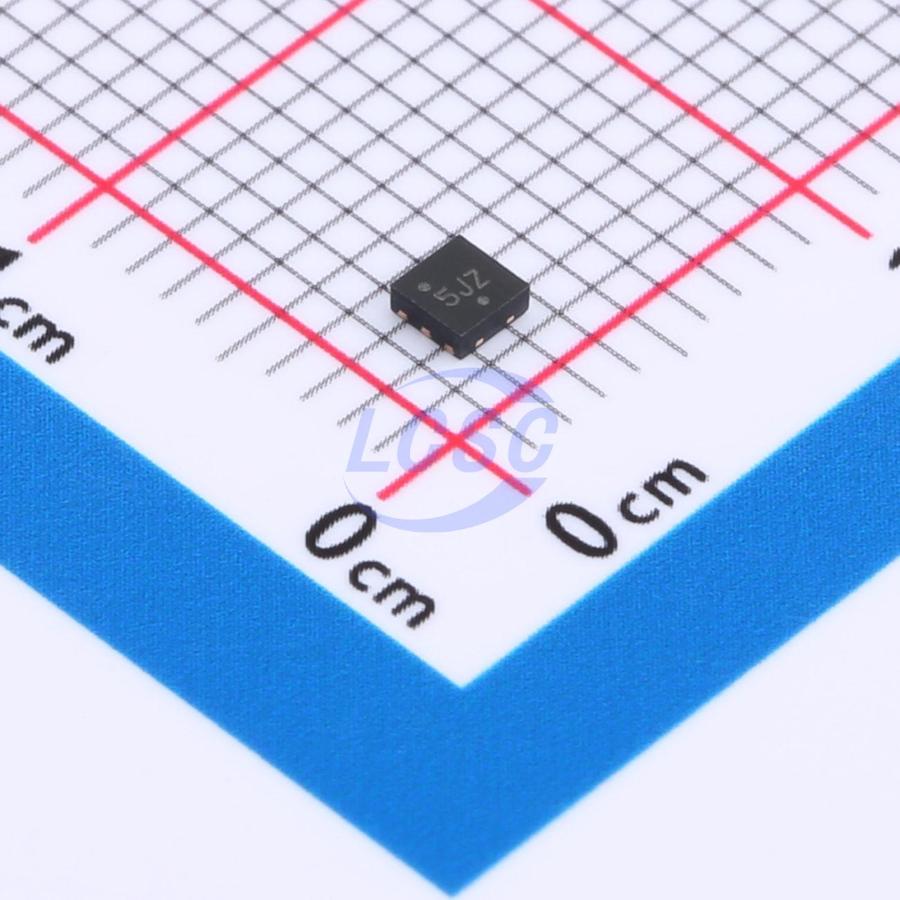

NCP705MTADJTCG
800mV~5.15V Positive Adjustable WDFN-6(2x2) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
WDFN-6(2x2)ROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- NCP705MTADJTCG
- Store part #
- C603773
- Package / case
- WDFN-6(2x2)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,301 in stock
#C603773
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹105.30 | ₹105.30 |
| 10+ | ₹89.01 | ₹890.10 |
| 30+ | ₹80.98 | ₹2,429.40 |
| 100+ | ₹72.73 | ₹7,273.00 |
| 500+ | ₹67.95 | ₹33,975.00 |
| 1,000+ | ₹65.57 | ₹65,570.00 |
1 × ₹105.30
₹105.30
excl. GST
₹124.25 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NCP705MTADJTCG
₹105.30 for 1 + GST
Specifications
- Output Voltage
- 800mV~5.15V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 13uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 500mA
- Output Type
- Adjustable
- Features
- Enable control;Built-in soft-start;Thermal shutdown;Input under-voltage protection;Output discharge;Short Circuit Protection;Over Current Protection
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.018 g
Overview
Noise sensitive RF applications such as Power Amplifiers in satellite radios, infotainment equipment, and precision instrumentation require very clean power supplies. The NCP705 is 500 mA LDO that provides the engineer with a very stable, accurate voltage with ultra low noise and very high Power Supply Rejection Ratio (PSRR) suitable for RF applications. The device doesn’t require any additional noise bypass capacitor to achieve ultra−low noise performance. In order to optimize performance for battery operated portable applications, the NCP705 employs dynamic Iq management for ultra−low quiescent current consumption at light−load conditions and great dynamic performance.
Applications
- PDAs, Mobile Phones, GPS, Smartphones
- Wireless Handsets, Wireless LAN, Bluetooth, ZigBee
- Portable Medical Equipment
- Other Battery Powered Applications
Key features
- Operating Input Voltage Range: 2.5 V to 5.5 V
- Available − Fixed Voltage Option: 0.8 V to 3.5 V
- Adjustable Voltage Option: 0.8 V to 5.5 V−VDROP
- Reference Voltage 0.8 V
- Ultra−Low Quiescent Current of Typ. 13 μA
- Ultra−Low Noise: 12 μVRMS from 100 Hz to 100 kHz
- Very Low Dropout: 230 mV Typical at 500 mA
- ±2% Accuracy Over Load/Line/Temperature
- High PSRR: 71 dB at 1 kHz
- Internal Soft−Start to Limit the Turn−On Inrush Current
- Thermal Shutdown and Current Limit Protections
- Stable with a 1 μF Ceramic Output Capacitor
- Active Output Discharge for Fast Turn−Off
- These are Pb−Free Devices
