onsemiDatasheet (PDF)

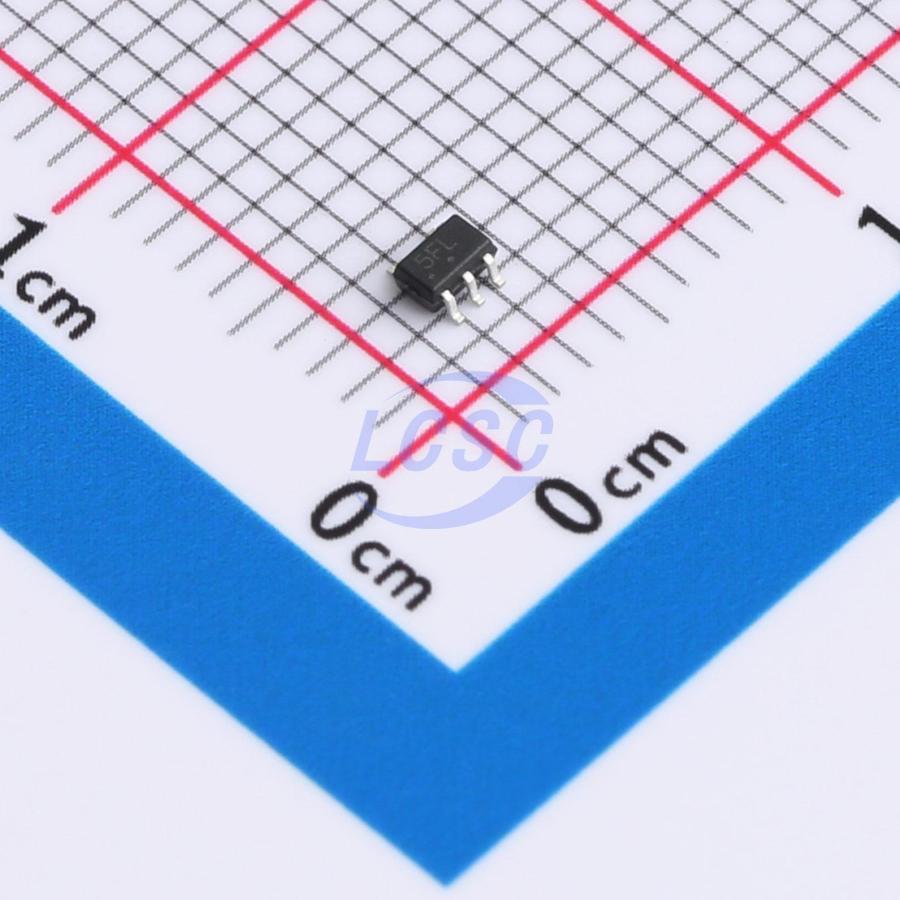

NCP715SQ30T2G
3V Positive Fixed SC-70-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SC-70-5ROHS3 CompliantActive
Linear Voltage Regulator, Ultra-Low lq, Wide Input Voltage, Low Dropout
- Manufacturer
- onsemi
- Manufacturer part #
- NCP715SQ30T2G
- Store part #
- C463157
- Package / case
- SC-70-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40 in stock
#C463157
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹193.33 | ₹193.33 |
| 10+ | ₹189.02 | ₹1,890.20 |
| 30+ | ₹186.34 | ₹5,590.20 |
| 100+ | ₹183.46 | ₹18,346.00 |
1 × ₹193.33
₹193.33
excl. GST
₹228.13 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NCP715SQ30T2G
₹193.33 for 1 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 4.7uA
- Output Configuration
- Positive
- Operating Voltage
- 24V
- Output Current
- 50mA
- Features
- Thermal shutdown;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.11 g
Overview
The NCP715 is 50 mA LDO Linear Voltage Regulator. It is a very stable and accurate device with ultra−low ground current consumption (4.7 μA over the full output load range) and a wide input voltage range (up to 24 V). The regulator incorporates several protection features such as Thermal Shutdown and Current Limiting.
Applications
- Portable Equipment
- Communication Systems
Key features
- Operating Input Voltage Range: 2.5 V to 24 V
- Fixed Voltage Options Available: 1.2 V to 5.3 V
- Ultra Low Quiescent Current: Max. 4.7 μA Over Full Load and Temperature
- ±2% Accuracy Over Full Load, Line and Temperature Variations
- PSRR: 52 dB at 100 kHz
- Noise: 190 μVRMS from 200 Hz to 100 kHz
- Thermal Shutdown and Current Limit protection
- Available in XDFN6 1.5 x 1.5 mm, SC−70 (SC−88A) and TSOP−5 Packages
- These are Pb−Free Devices
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPS71530DCKR#C485532TI · SC-70-5 | TI | SC-70-5 | 87 | ₹66.20 · 87 in stock | View |
 | TPS71530QDCKRQ1#C2878874TI · SC-70-5 | TI | SC-70-5 | 10 | ₹176.18 · 10 in stock | View |
| NCV8715SQ30T2G#C893301onsemi · SC-88A-5 | onsemi | SC-88A-5 | On request | ₹42.03 · 0 in stock | View | |
| SGM2200-3.0YC5G/TR#C5141576SGMICRO · SC70-5 | SGMICRO | SC70-5 | On request | ₹45.55 · 0 in stock | View | |
