onsemiDatasheet (PDF)

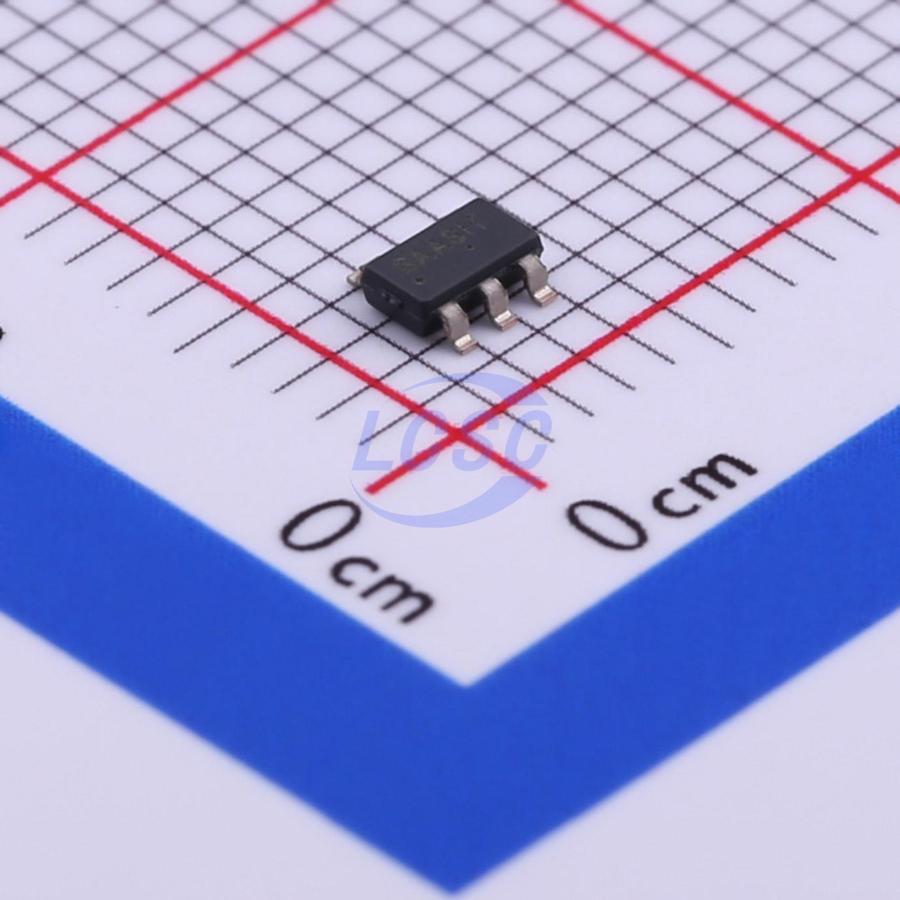

NCP718ASNADJT1G
1.2V~5V Positive Adjustable TSOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TSOT-23-5ROHS3 CompliantActive
Low Dropout Regulator, Wide Input Voltage, Low lq, 300 mA
- Manufacturer
- onsemi
- Manufacturer part #
- NCP718ASNADJT1G
- Store part #
- C440035
- Package / case
- TSOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,451 in stock
#C440035
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹137.25 | ₹137.25 |
| 10+ | ₹109.49 | ₹1,094.90 |
| 30+ | ₹95.40 | ₹2,862.00 |
| 100+ | ₹81.75 | ₹8,175.00 |
| 500+ | ₹73.29 | ₹36,645.00 |
| 1,000+ | ₹69.17 | ₹69,170.00 |
1 × ₹137.25
₹137.25
excl. GST
₹161.95 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NCP718ASNADJT1G
₹137.25 for 1 + GST
Specifications
- Output Voltage
- 1.2V~5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 8uA
- Output Configuration
- Positive
- Operating Voltage
- 24V
- Output Current
- 300mA
- Features
- Enable control;Built-in soft-start;Thermal shutdown;Over Current Protection;Output discharge
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.02 g
Overview
The NCP718 is 300 mA LDO Linear Voltage Regulator. It is a very stable and accurate device with ultra−low quiescent current consumption (typ. 4 μA over the full temperature range) and a wide input voltage range (up to 24 V). The regulator incorporates several protection features such as Thermal Shutdown and Current Limiting.
Applications
- Wireless Chargers
- Portable Equipment
- Communication Systems
Key features
- Operating Input Voltage Range: 2.5 V to 24 V
- Fixed Voltage Options Available: 1.2 V to 5 V (upon request)
- Adjustable Voltage Option from 1.2 V to 5 V
- Ultra−Low Quiescent Current: typ. 4 μA over Temperature
- ±2% Accuracy Over Full Load, Line and Temperature Variations
- PSRR: 60 dB at 1 kHz
- Noise: typ. 36 μVRMS from 100 Hz to 100 kHz
- Stable with Small 1 μF Ceramic Capacitor
- Soft−start to Reduce Inrush Current and Overshoots
- Thermal Shutdown and Current Limit Protection
- SOA Limiting for High Vin / High Iout – Static / Dynamic
- Active Discharge Option Available (upon request)
- Available in TSOT−23−5 and WDFN6 2x2 mm Packages
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NCP718BSNADJT1G#C603789onsemi · TSOT-23-5 | onsemi | TSOT-23-5 | 187 | ₹113.62 · 187 in stock | View |
| DIO7708AADJST5#C7464388DIOO · SOT-23-5 | DIOO | SOT-23-5 | 70 | ₹24.30 · 70 in stock | View | |
 | TP573CADJS5#C5342389TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 4,365 | ₹42.12 · 4,365 in stock | View |
 | DS8201-18S5#C5795644DSTECH · SOT23-5 | DSTECH | SOT23-5 | 3 | ₹60.20 · 3 in stock | View |
 | DS8201-33S5#C5795647DSTECH · SOT23-5 | DSTECH | SOT23-5 | 2,976 | ₹129.52 · 2,976 in stock | View |
