onsemi

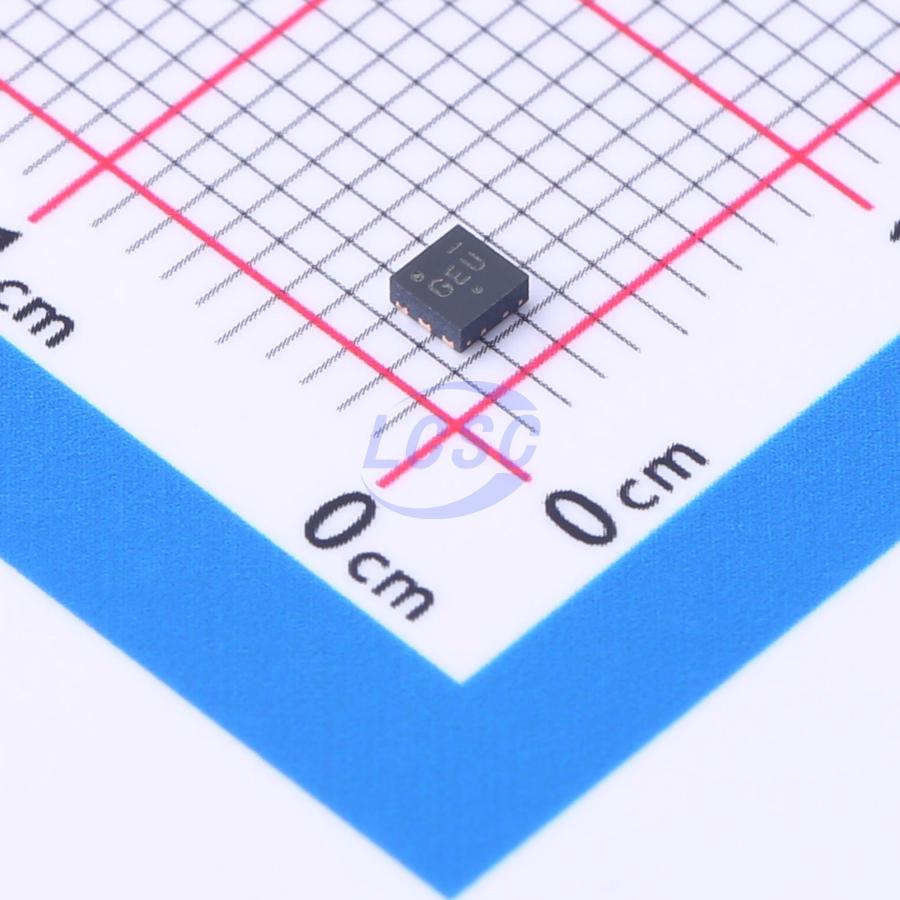

NCP718BMT500TBG

5V Positive Fixed WDFN-6-EP(2x2) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

WDFN-6-EP(2x2)ROHS3 CompliantActive

300 mA low dropout regulator, wide input voltage, low Iq

Manufacturer: onsemi
Manufacturer part #: NCP718BMT500TBG
Store part #: C603788
Package / case: WDFN-6-EP(2x2)
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2 in stock

#C603788

Stock & price checked 37 h ago

Quantity	Unit price	Pack price
1+	₹238.47	₹238.47
10+	₹203.41	₹2,034.10
30+	₹181.36	₹5,440.80
100+	₹158.92	₹15,892.00
500+	₹148.71	₹74,355.00
1,000+	₹144.29	₹1,44,290.00

Quantity (min 1)

1 × ₹238.47

₹238.47

excl. GST

₹281.39 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

NCP718BMT500TBG

₹238.47 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 5V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Tj)
Supply Current (Iq): 4uA
Output Configuration: Positive
Output Current: 300mA
Operating Voltage: 24V
Output Type: Fixed
Features: Enable control;Built-in soft-start;Thermal shutdown;Over Current Protection;Output discharge

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.1 g

Overview

The NCP718 is 300 mA LDO Linear Voltage Regulator. It is a very stable and accurate device with ultra−low quiescent current consumption (typ. 4 μA over the full temperature range) and a wide input voltage range (up to 24 V). The regulator incorporates several protection features such as Thermal Shutdown and Current Limiting.

Applications

Wireless Chargers
Portable Equipment
Communication Systems

Key features

Operating Input Voltage Range: 2.5 V to 24 V
Fixed Voltage Options Available: 1.2 V to 5 V (upon request)
Adjustable Voltage Option from 1.2 V to 5 V
Ultra−Low Quiescent Current: typ. 4 μA over Temperature
±2% Accuracy Over Full Load, Line and Temperature Variations
PSRR: 60 dB at 1 kHz
Noise: typ. 36 μVRMS from 100 Hz to 100 kHz
Stable with Small 1 μF Ceramic Capacitor
Soft−start to Reduce Inrush Current and Overshoots
Thermal Shutdown and Current Limit Protection
SOA Limiting for High Vin / High Iout – Static / Dynamic
Active Discharge Option Available (upon request)
Available in TSOT−23−5 and WDFN6 2x2 mm Packages
These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
NCP718AMT500TBG#C603784onsemi · WDFN-6(2x2)	onsemi	WDFN-6(2x2)	49	₹137.80 · 49 in stock	View
NCV8718AMT500TBG#C893311onsemi · WDFN-6(2x2)	onsemi	WDFN-6(2x2)	26	₹144.99 · 26 in stock	View
TPS7B8250QDRVRQ1#C2862522TI · WSON-6-EP(2x2)	TI	WSON-6-EP(2x2)	1,328	₹203.29 · 1,328 in stock	View
IBSP3032F050DN6AR00#C18164955Inbisen · DFN-6(2x2)	Inbisen	DFN-6(2x2)	On request	₹209.47 · 0 in stock	View
TPS7A2550DRVR#C2876265TI · WSON-6-EP(2x2)	TI	WSON-6-EP(2x2)	1,844	₹84.96 · 1,844 in stock	View
