onsemiDatasheet (PDF)

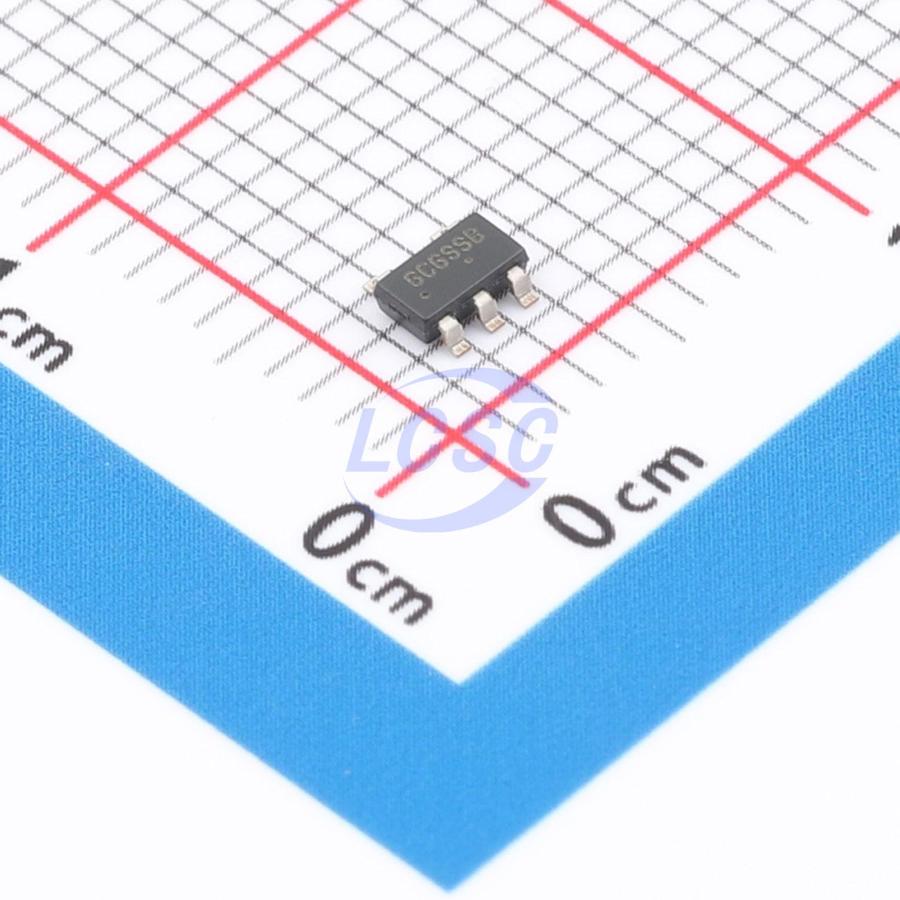

NCP718BSN300T1G
3V Positive Fixed TSOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TSOT-23-5ROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- NCP718BSN300T1G
- Store part #
- C892794
- Package / case
- TSOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
197 in stock
#C892794
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹113.83 | ₹113.83 |
| 10+ | ₹91.94 | ₹919.40 |
| 30+ | ₹81.10 | ₹2,433.00 |
| 100+ | ₹70.25 | ₹7,025.00 |
| 500+ | ₹63.76 | ₹31,880.00 |
| 1,000+ | ₹60.50 | ₹60,500.00 |
1 × ₹113.83
₹113.83
excl. GST
₹134.32 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NCP718BSN300T1G
₹113.83 for 1 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 4uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 24V
- Features
- Enable control;Built-in soft-start;Thermal shutdown;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.041 g
Overview
The NCP718 is 300 mA LDO Linear Voltage Regulator. It is a very stable and accurate device with ultra−low quiescent current consumption (typ. 4 μA over the full temperature range) and a wide input voltage range (up to 24 V). The regulator incorporates several protection features such as Thermal Shutdown and Current Limiting.
Applications
- Wireless Chargers
- Portable Equipment
- Communication Systems
Key features
- Operating Input Voltage Range: 2.5 V to 24 V
- Fixed Voltage Options Available: 1.2 V to 5 V (upon request)
- Adjustable Voltage Option from 1.2 V to 5 V
- Ultra−Low Quiescent Current: typ. 4 μA over Temperature
- ±2% Accuracy Over Full Load, Line and Temperature Variations
- PSRR: 60 dB at 1 kHz
- Noise: typ. 36 μV_RMS from 100 Hz to 100 kHz
- Stable with Small 1 μF Ceramic Capacitor
- Soft−start to Reduce Inrush Current and Overshoots
- Thermal Shutdown and Current Limit Protection
- SOA Limiting for High Vin / High Iout – Static / Dynamic
- Active Discharge Option Available (upon request)
- Available in TSOT−23−5 and WDFN6 2x2 mm Packages
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NCP718ASN300T1G#C892789onsemi · TSOT-23-5 | onsemi | TSOT-23-5 | 39 | ₹52.15 · 39 in stock | View |
 | TPLP2992IM5X-3.0#C18212638TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 3,445 | ₹15.40 · 3,445 in stock | View |
 | TPNCP718ASN300T1G#C18212641TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,815 | ₹14.83 · 2,815 in stock | View |
 | XC6204B302MR#C18212678TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 1,065 | ₹19.45 · 1,065 in stock | View |
 | SPX3819M5-L-3-0(MS)#C20538873MSKSEMI · SOT-23-5 | MSKSEMI | SOT-23-5 | 2,345 | ₹17.32 · 2,345 in stock | View |
