onsemi

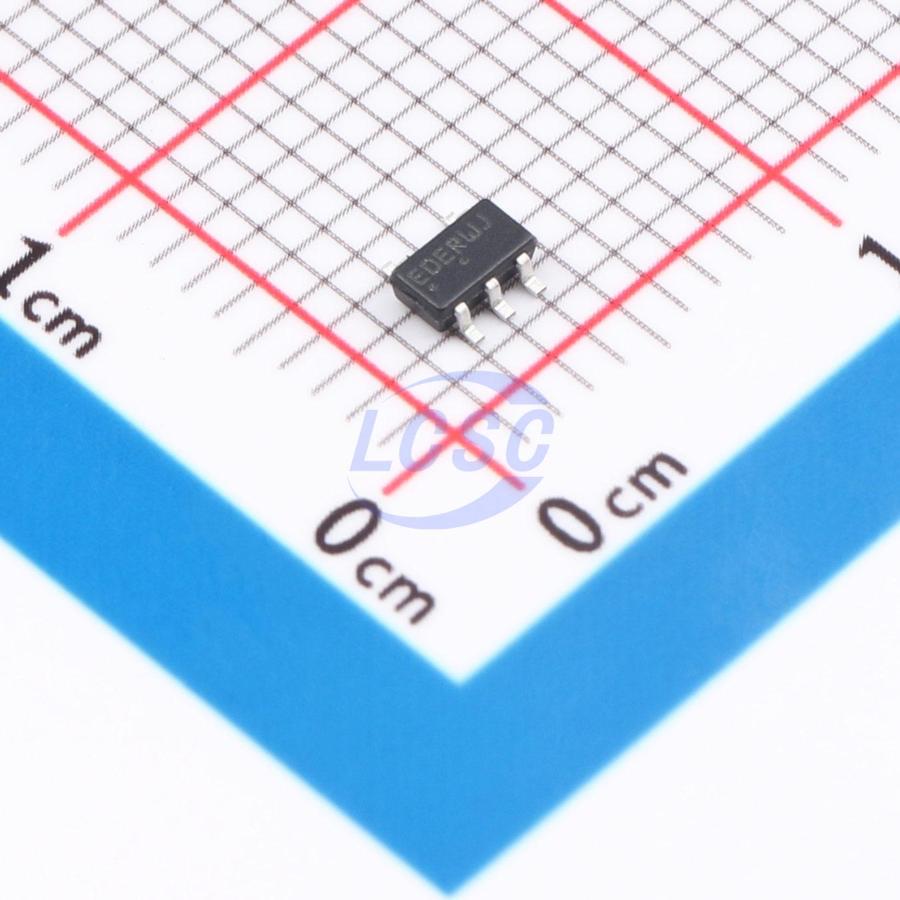

NCP752ASN33T1G

3.3V Positive Fixed TSOP-5-1.5mm Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

TSOP-5-1.5mmROHS3 CompliantActive

Manufacturer: onsemi
Manufacturer part #: NCP752ASN33T1G
Store part #: C892831
Package / case: TSOP-5-1.5mm
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

39 in stock

#C892831

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
1+	₹65.42	₹65.42
10+	₹64.13	₹641.30
30+	₹63.27	₹1,898.10
100+	₹62.18	₹6,218.00

Quantity (min 1)

1 × ₹65.42

₹65.42

excl. GST

₹77.20 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

NCP752ASN33T1G

₹65.42 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 3.3V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Tj)
Supply Current (Iq): 12uA
Output Configuration: Positive
Output Current: 200mA
Operating Voltage: 5.5V
Features: Enable control;Operating status indication;Built-in soft-start;Thermal shutdown;Short Circuit Protection;Over Current Protection;Input under-voltage protection;Output discharge
Output Type: Fixed

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.021 g

Overview

Noise sensitive RF applications such as Power Amplifiers in satellite radios, infotainment equipment, and precision instrumentation require very clean power supplies. The NCP752 is 200 mA LDO that provides the engineer with a very stable, accurate voltage with ultra low noise and very high Power Supply Rejection Ratio (PSRR) suitable for RF applications. The device doesn’t require any additional noise bypass capacitor to achieve ultra low noise performance. In order to optimize performance for battery operated portable applications, the NCP752 employs the Auto Low−Power Function for Ultra Low Quiescent Current consumption.

Applications

PDAs, Mobile phones, GPS, Smartphones
Wireless Handsets, Wireless LAN
Portable Medical and Other Battery Powered Devices

Key features

Operating Input Voltage Range: 2.0 V to 5.5 V
Available in Fixed Voltage Options: 0.8 to 3.5 V
Ultra Low Quiescent Current of Typ. 12 μA
Ultra Low Noise: 11.5 μVRMS from 100 Hz to 100 kHz
Very Low Dropout: 130 mV Typical at 200 mA
±2% Accuracy Over Load/Line/Temperature
High PSRR: 68 dB at 1 kHz
Power Good Output
Internal Soft−Start to Limit the Inrush Current
Thermal Shutdown and Current Limit Protections
Stable with a 1 μF Ceramic Output Capacitor
Available in TSOP−5 and XDFN 1.5 x 1.5 mm Package
Active Output Discharge for Fast Turn−Off
These are Pb−Free Devices
