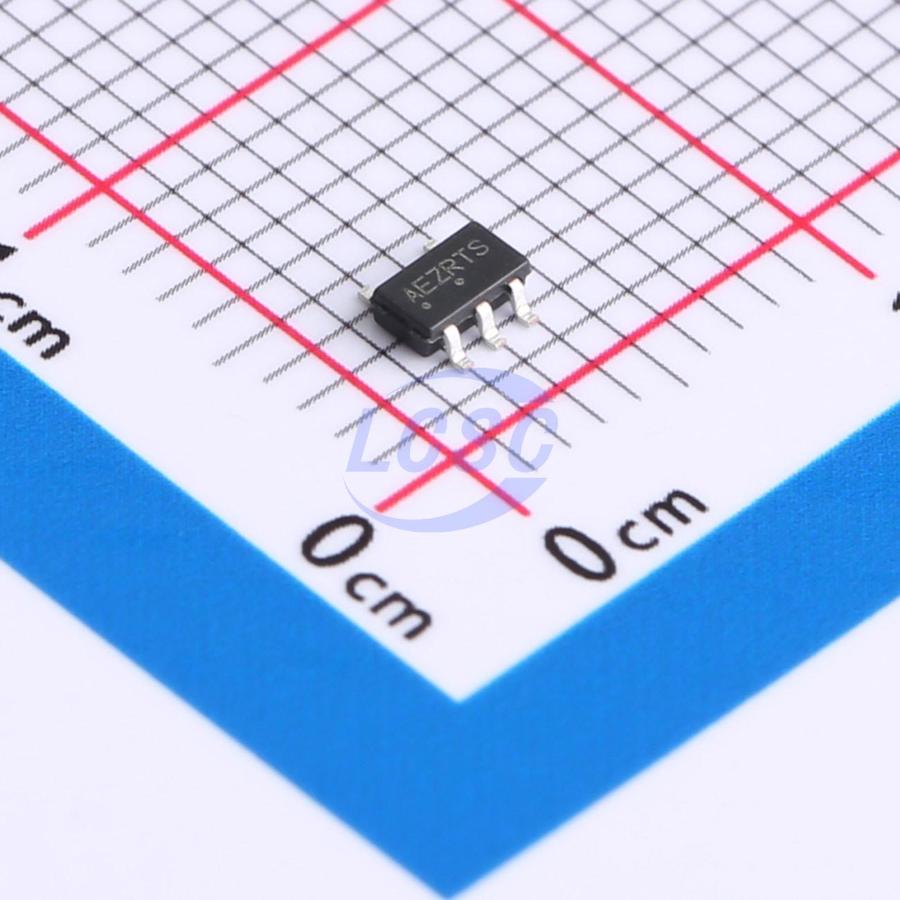

NCS21911SN2T1G
16mA 1 1uV 1.6V/us 150dB 100pA 2MHz 475uA Rail-to-rail output TSOP-5-1.5mm Instrumentation, Op Amps, Buffer Amps RoHS
TSOP-5-1.5mmROHS3 CompliantActive
Precision Operational Amplifier, Zero-Drift, 36 V Supply, 2 MHz
- Manufacturer
- onsemi
- Manufacturer part #
- NCS21911SN2T1G
- Store part #
- C603837
- Package / case
- TSOP-5-1.5mm
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,911 in stock
#C603837
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹203.38 | ₹203.38 |
| 10+ | ₹167.60 | ₹1,676.00 |
| 30+ | ₹147.87 | ₹4,436.10 |
| 100+ | ₹119.69 | ₹11,969.00 |
| 500+ | ₹109.93 | ₹54,965.00 |
| 1,000+ | ₹105.38 | ₹1,05,380.00 |
1 × ₹203.38
₹203.38
excl. GST
₹239.99 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NCS21911SN2T1G
₹203.38 for 1 + GST
Specifications
- Output Current
- 16mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 1uV
- Slew Rate
- 1.6V/us
- Input Offset Current(Ios)
- 200pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 150dB
- Ib - Input Bias Current
- 100pA
- Input Offset Voltage Drift(Vos TC)
- 20nV/℃
- Gain Bandwidth Product
- 2MHz
- Quiescent Current
- 475uA
- Features
- Zero drift / auto-zero
- Input Voltage Noise Density
- 22nV/√Hz@1kHz
- Rail to Rail
- Rail-to-rail output
- Single Supply
- 4V~36V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.5 g
Overview
The NCS2191x family of high precision op amps feature low input offset voltage and near−zero drift over time and temperature. These op amps operate over a wide supply range from 4 V to 36 V with low quiescent current. The rail−to−rail output swings within 10 mV of the rails. The family includes the single channel NCS(V)21911, the dual channel NCS(V)21912, and the quad channel NCS(V)21914 in a variety of packages. All versions are specified for operation from -40°C to +125°C. Automotive qualified options are available under the NCV prefix.
Applications
- Temperature Measurements
- Transducer Applications
- Electronic Scales
- Medical Instrumentation
- Current Sensing
- Automotive
Key features
- Input Offset Voltage: ±25 μV max
- Zero−Drift Offset Voltage: ±0.085 μV/°C max
- Voltage Noise Density: 22 nV/√Hz typical
- Unity Gain Bandwidth: 2 MHz typical
- Supply Voltage: 4 V to 36 V
- Quiescent Current: 570 μA max
- Rail−to−Rail Output
- NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
- These Devices are Pb−free, Halogen free/BFR free and are RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NCV21911SN2T1G#C603875onsemi · TSOP-5 | onsemi | TSOP-5 | 4 | ₹252.59 · 4 in stock | View |
 | OPA188AIDBVT#C140281TI · SOT-23-5 | TI | SOT-23-5 | 23 | ₹150.04 · 23 in stock | View |
 | OPA180IDBVR#C2058112TI · SOT-23-5 | TI | SOT-23-5 | 422 | ₹236.00 · 422 in stock | View |
 | OPA180IDBVT#C1848179TI · SOT-23-5 | TI | SOT-23-5 | On request | Price on request | Quote |
