onsemiDatasheet (PDF)

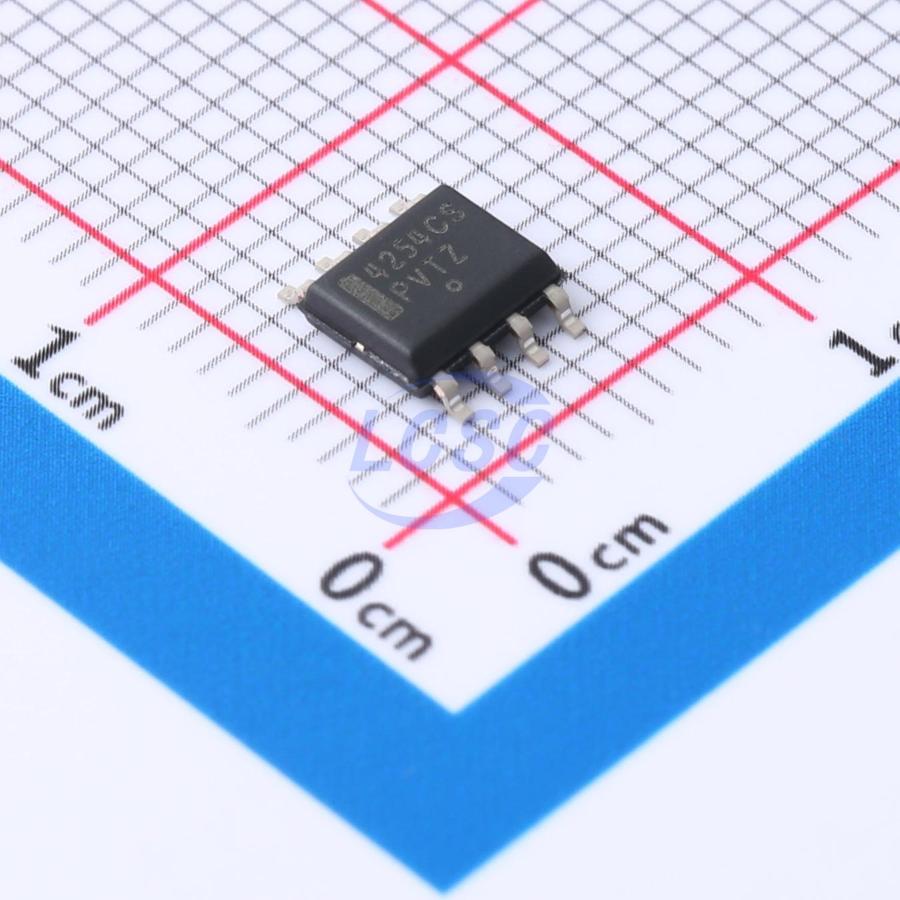

NCV4254CDSTR2G
1V~40V Positive Adjustable SOIC-8 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOIC-8ROHS3 CompliantDiscontinued
Low Dropout Voltage Tracking Regulator
- Manufacturer
- onsemi
- Manufacturer part #
- NCV4254CDSTR2G
- Store part #
- C603917
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
166 in stock
#C603917
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹116.12 | ₹116.12 |
| 10+ | ₹113.73 | ₹1,137.30 |
| 30+ | ₹111.99 | ₹3,359.70 |
| 100+ | ₹110.25 | ₹11,025.00 |
1 × ₹116.12
₹116.12
excl. GST
₹137.02 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
NCV4254CDSTR2G
₹116.12 for 1 + GST
Specifications
- Output Voltage
- 1V~40V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+150℃@(Tj)
- Supply Current (Iq)
- 80uA
- Output Configuration
- Positive
- Output Current
- 70mA
- Operating Voltage
- 45V
- Features
- Enable control;Operating status indication;Over Current Protection;Thermal shutdown;Reverse polarity voltage protection;Reverse-polarity current protection;Input under-voltage protection
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Discontinued
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.123 g
Overview
The NCV4254C is a monolithic integrated low dropout tracking voltage regulator designed to provide an adjustable buffered output voltage that closely tracks the reference input voltage. The output delivers up to 70 mA while being able to be configured higher, lower or equal to the reference voltages. The part can be used in automotive applications with remote sensors or any situation where it is necessary to isolate the output of the other regulator. The NCV4254C also enables the user to bestow a quick upgrade to their module when added current is needed and the existing regulator cannot provide.
Applications
- Off the module loads (e.g. sensors power supply)
Key features
- Up to 70 mA Source Capability
- Low Output Tracking Tolerance
- Low Dropout (typ. 220 mV @ 70 mA)
- Low Disable Current in Stand−by Mode
- Wide Input Voltage Operating Range
- Protection Features: Current Limitation, Thermal Shutdown, Reverse Input Voltage and Reverse Bias Voltage
- NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Grade 1 Qualified and PPAP Capable
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| NCV4254CDAJR2G#C904612onsemi · SOIC-8 | onsemi | SOIC-8 | On request | ₹208.93 · 0 in stock | View | |
