onsemiDatasheet (PDF)

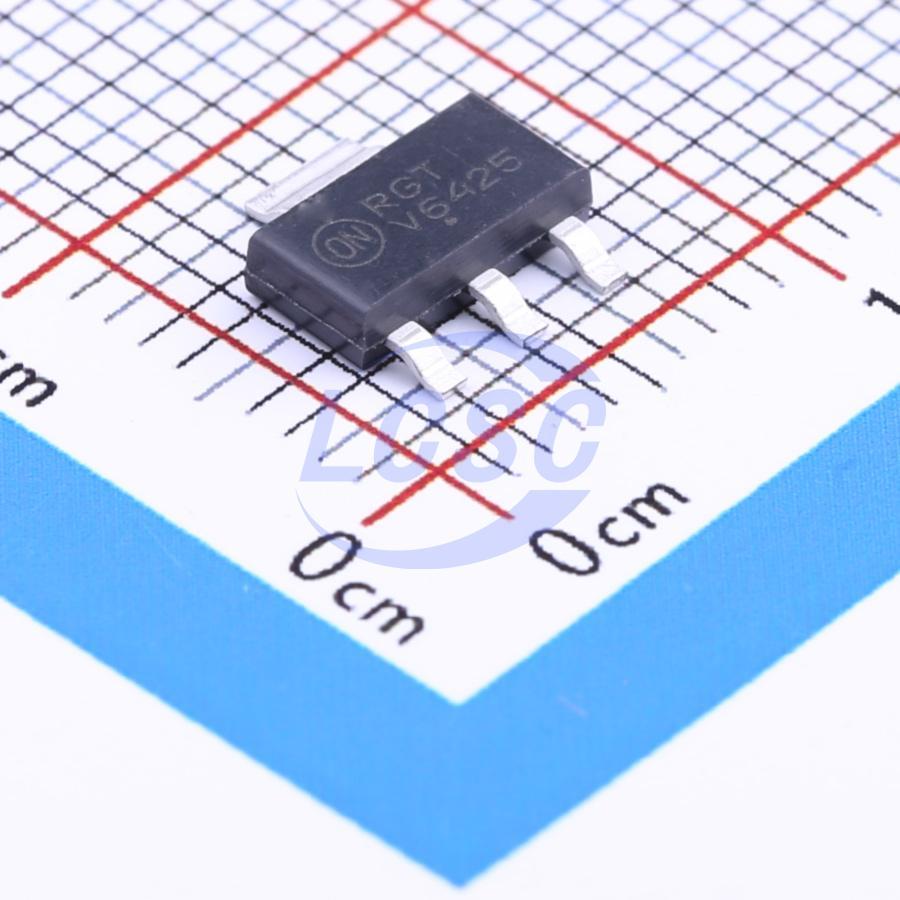

NCV4264-2ST50T3G
5V Positive Fixed SOT-223-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-223-3ROHS3 CompliantActive
Low IQ Low Dropout Linear Regulator
- Manufacturer
- onsemi
- Manufacturer part #
- NCV4264-2ST50T3G
- Store part #
- C73115
- Package / case
- SOT-223-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,795 in stock
#C73115
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹79.62 | ₹79.62 |
| 10+ | ₹63.09 | ₹630.90 |
| 30+ | ₹56.12 | ₹1,683.60 |
| 100+ | ₹47.20 | ₹4,720.00 |
| 500+ | ₹38.95 | ₹19,475.00 |
| 1,000+ | ₹36.55 | ₹36,550.00 |
1 × ₹79.62
₹79.62
excl. GST
₹93.95 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
NCV4264-2ST50T3G
₹79.62 for 1 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+150℃
- Supply Current (Iq)
- 55uA
- Output Configuration
- Positive
- Operating Voltage
- 45V
- Output Current
- 100mA
- Features
- Reverse polarity voltage protection;Short Circuit Protection;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.202 g
Overview
The NCV4264−2 is functionally and pin for pin compatible with NCV4264 with a lower quiescent current consumption. Its output stage supplies 100 mA with ± 2.0% output voltage accuracy. Maximum dropout voltage is 500 mV at 100 mA load current. It is internally protected against 45 V input transients, input supply reversal, output overcurrent faults, and excess die temperature. No external components are required to enable these features.
Key features
- 3.3 V and 5.0 V Fixed Output
- ± 2.0% Output Accuracy, Over Full Temperature Range
- 60 μA Maximum Quiescent Current at I_OUT = 100 μA
- 500 mV Maximum Dropout Voltage at 100 mA Load Current
- Wide Input Voltage Operating Range of 4.5 V to 45 V
- AEC−Q100 Grade 1 Qualified and PPAP Capable
- Internal Fault Protection: −42 V Reverse Voltage, Short Circuit/Overcurrent, Thermal Overload
- This is a Pb −Free Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TLE42642GHTSA2#C3743740Infineon · SOT-223-4 | Infineon | SOT-223-4 | 530 | ₹311.06 · 530 in stock | View |
 | NCV4264-2CST50T3G#C513030onsemi · SOT-223-3 | onsemi | SOT-223-3 | 2,886 | ₹69.95 · 2,886 in stock | View |
 | NCV8664ST50T3G#C417290onsemi · SOT-223 | onsemi | SOT-223 | 2,879 | ₹186.74 · 2,879 in stock | View |
| NCV8664CST50T3G#C556405onsemi · SOT-223 | onsemi | SOT-223 | 3,881 | ₹157.57 · 3,881 in stock | View | |
 | TLE4266G#C3747248Infineon · SOT-223-4 | Infineon | SOT-223-4 | 12 | ₹172.27 · 12 in stock | View |
