onsemiDatasheet (PDF)

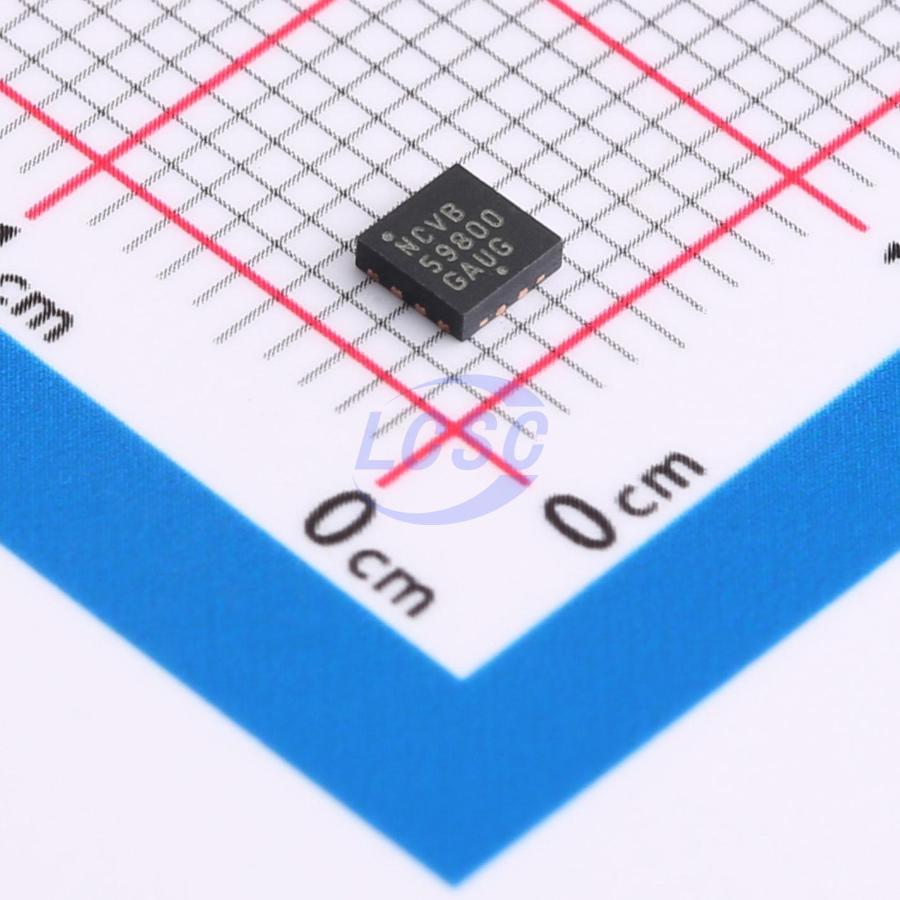

NCV59800BMNADJTBG
800mV~5V Positive Adjustable TDFN-8-EP(3x3) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TDFN-8-EP(3x3)ROHS3 CompliantActive
1A Low-Noise RF LDO Regulator
- Manufacturer
- onsemi
- Manufacturer part #
- NCV59800BMNADJTBG
- Store part #
- C603977
- Package / case
- TDFN-8-EP(3x3)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8 in stock
#C603977
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹104.38 | ₹104.38 |
| 10+ | ₹84.80 | ₹848.00 |
| 30+ | ₹75.24 | ₹2,257.20 |
| 100+ | ₹65.46 | ₹6,546.00 |
| 500+ | ₹59.59 | ₹29,795.00 |
| 1,000+ | ₹56.76 | ₹56,760.00 |
1 × ₹104.38
₹104.38
excl. GST
₹123.17 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NCV59800BMNADJTBG
₹104.38 for 1 + GST
Specifications
- Output Voltage
- 800mV~5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 60uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 1A
- Output Type
- Adjustable
- Features
- Enable control;Adjustable soft-start;Noise bypass terminal;Input under-voltage protection;Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.06 g
Overview
The NCV59800 is a family of 1 A low−dropout linear regulators (LDOs) offering high power−supply ripple rejection (PSRR) and ultra−low output noise. This series of LDOs uses an advanced BiCMOS process to achieve very good electrical performance. It is an ideal choice for noise sensitive Analog RF Front−Ends used in Telecom Equipment. The NCV59800 is available in the 3 mm x 3 mm DFN8 package.
Applications
- Telecom Infrastructure
- Automotive Infotainment Systems
- High−Speed I/F (PLL/VCO)
Key features
- Operating Input Voltage Range: 2.2 V to 5.5 V
- Output Voltage Range:
- 0.8 V to 5 V (adjustable)
- Quiescent Current typ. 60 μA
- Low Dropout: 200 mV typ. at 1 A, VOUT = 2.5 V
- ±2.5% VOUT Accuracy across Load/Line/Temperature
- Stable with Small 4.7 μF Ceramic Capacitors
- Very−Low Noise: Typically 15 μVRMS/V from 100 Hz to 100 kHz
- Over−Current and Thermal Shutdown Protection
- Available in 3 x 3 mm DFN8 Package
- Device Temperature Grade 1: -40°C to 125°C Ambient Operating Temperature Range
- NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NCP59800BMNADJTAG#C603763onsemi · DFN-8(3x3) | onsemi | DFN-8(3x3) | 4 | ₹159.57 · 4 in stock | View |
