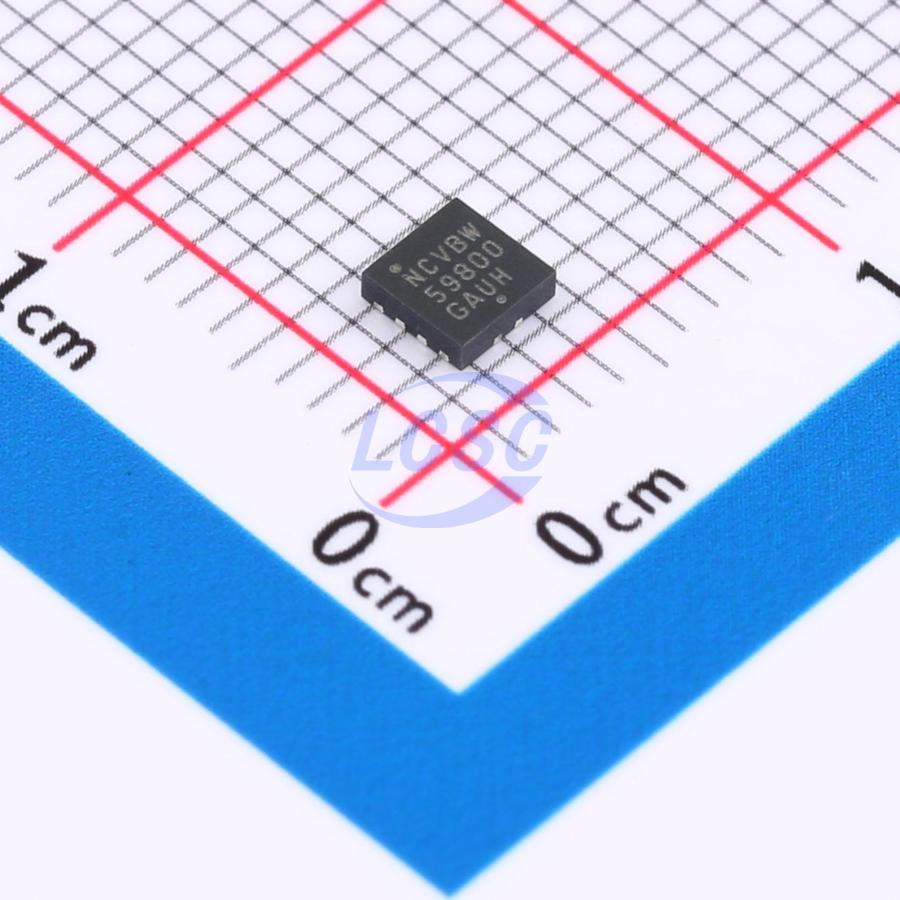

NCV59800BMWADJTBG

The NCV59800 is a family of 1 A low−dropout linear regulators (LDOs) offering high power−supply ripple rejection (PSRR) and ultra−low output noise. This series of LDOs uses an advanced BiCMOS process to achieve very good electrical performance. It is an ideal choice for noise sensitive Analog RF Front−Ends used in Telecom Equipment. The NCV59800 is available in the 3 mm x 3 mm DFN8 package.

Applications

• Telecom Infrastructure
• Automotive Infotainment Systems
• High−Speed I/F (PLL/VCO)

Key features

• Operating Input Voltage Range: 2.2 V to 5.5 V
• Output Voltage Range: 0.8 V to 5 V (adjustable)
• Quiescent Current typ. 60 μA
• Low Dropout: 200 mV typ. at 1 A, VOUT = 2.5 V
• ±2.5% VOUT Accuracy across Load/Line/Temperature
• Stable with Small 4.7 μF Ceramic Capacitors
• Very−Low Noise: Typically 15 μVRMS/V from 100 Hz to 100 kHz
• Over−Current and Thermal Shutdown Protection
• Available in 3 x 3 mm DFN8 Package
• Device Temperature Grade 1: -40°C to 125°C Ambient Operating Temperature Range
• NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
