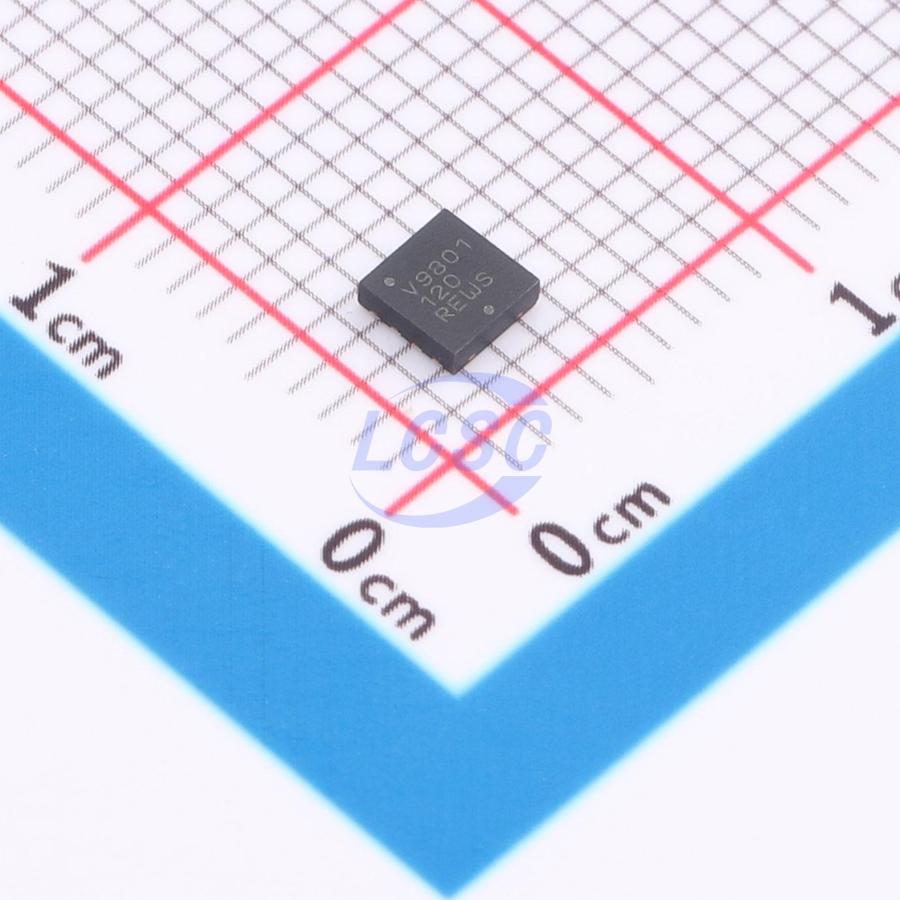

NCV59801CML120TCG

The NCV59801 is a 1A LDO, next generation of high PSRR, low noise and low dropout regulators with Power Good open collector output. Designed to meet the requirements of RF and sensitive analog circuits, the NCV59801 device provides low noise, high PSRR and low quiescent current while offering the ability to regulate output voltages down to 0.6 V. The device also offers excellent load / line transients. The NCV59801 is designed to work with a 4.7 μF input and output ceramic capacitor. It is available in industry standard DFNW8 0.65P, 3 mm x 3 mm and WDFNW6 0.65P, 2 mm x 2 mm.

Applications

• Communication Systems
• In Vehicle Networking
• Telematics, Infotainment and Clusters
• General Purpose Automotive

Key features

• Operating Input Voltage Range: 1.6 V to 5.5 V
• Available in Fixed Voltage Option: 0.6 V to 5.0 V
• Adjustable Version Reference Voltage: 0.6 V
• ±0.7% Initial Accuracy at 25°C
• ±1% Accuracy Over Load and Temperature (up to 125°C)
• Low Quiescent Current Typ. 35 μA
• Shutdown Current: Typ. 0.1 μA
• Very Low Dropout: Typ. 120 mV at 1 A for 3.3 V Variant
• High PSRR: Typ. 85 dB at 100 mA, f = 1 kHz
• Low Noise: 10 μVRMS (Fixed Version)
• Stable with a 4.7 μF Small Case Size Ceramic Capacitors
• Controlled Output Voltage Slew Rate from 5 mV / s
• Available in DFNW8 3 mm x 3 mm x 0.9 mm Case 507AD and WDFNW6 2 mm x 2 mm x 0.75 mm Case 511DW
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Co−mpliant
