onsemiDatasheet (PDF)

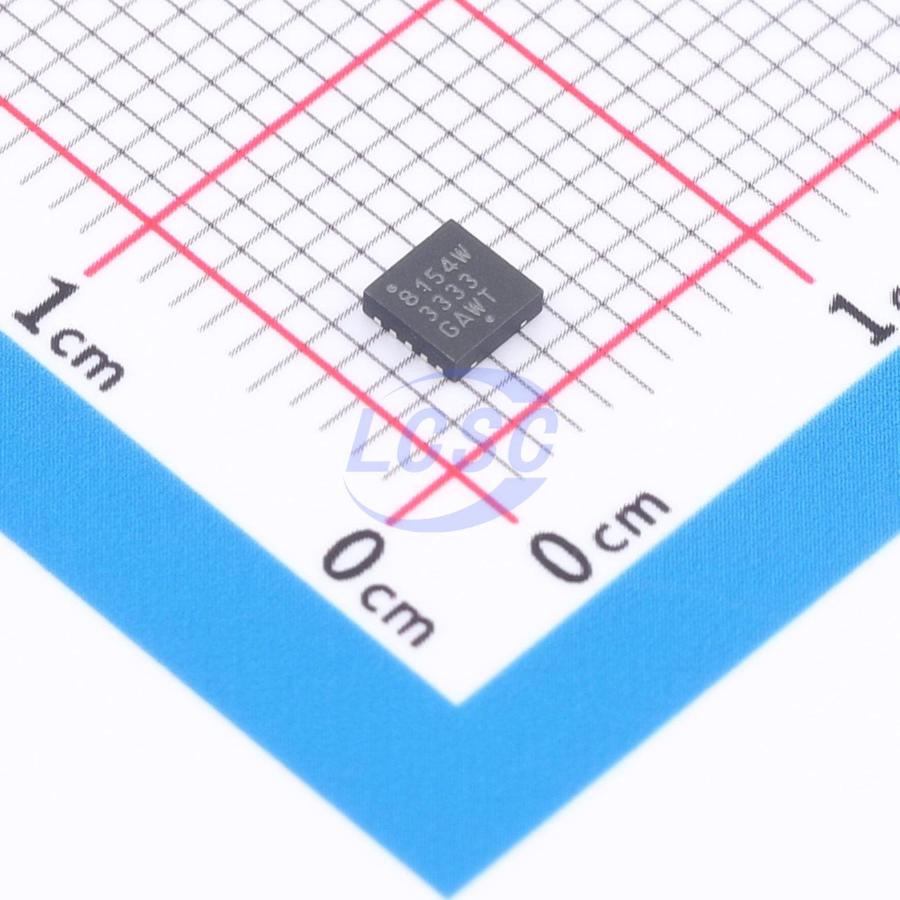

NCV8154MW330330TBG
3.3V Positive Fixed DFN10(3x3) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
DFN10(3x3)ROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- NCV8154MW330330TBG
- Store part #
- C893106
- Package / case
- DFN10(3x3)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
73 in stock
#C893106
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹155.49 | ₹155.49 |
| 10+ | ₹128.97 | ₹1,289.70 |
| 30+ | ₹114.43 | ₹3,432.90 |
| 100+ | ₹97.95 | ₹9,795.00 |
| 500+ | ₹90.69 | ₹45,345.00 |
| 1,000+ | ₹87.48 | ₹87,480.00 |
1 × ₹155.49
₹155.49
excl. GST
₹183.48 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NCV8154MW330330TBG
₹155.49 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 2
- Operating Temperature
- -40℃~+125℃@(Ta)
- Supply Current (Iq)
- 110uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 5.25V
- Output Type
- Fixed
- Features
- Enable control;Output discharge;Short Circuit Protection;Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.494 g
Overview
The NCV8154 is 300 mA, Dual Output Linear Voltage Regulator that offers two independent input pins and provides a very stable and accurate voltage with ultra low noise and very high Power Supply Rejection Ratio (PSRR) suitable for RF applications. The NCV8154 is suitable for powering RF blocks of automotive infotainment systems and other power sensitive device. Due to low power consumption the NCV8154 offers high efficiency and low thermal dissipation.
Applications
- Applications Requiring Wettable Flanks for Enhanced Visual Inspection
- Wireless LAN, ZigBee Interfaces
- Automotive Infotainment Systems
Key features
- Operating Input Voltage Range: 1.9 V to 5.25 V
- Two Independent Input Voltage Pins
- Two Independent Output Voltage (for detail please refer to Ordering Information)
- Low IQ of typ. 55 μA per Channel
- High PSRR: 75 dB at 1 kHz
- Very Low Dropout: 140 mV Typical at 300 mA
- Thermal Shutdown and Current Limit Protections
- Stable with a 1 μF Ceramic Output Capacitor
- Available in DFN10 3x3mm and WDFN6 1.5x1.5mm Packages
- Active Output Discharge for Fast Output Turn-Off
- NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable; Device Temperature Grade 1: -40°C to +125°C Ambient Operating Temperature Range
- These are Pb-free Devices
