onsemiDatasheet (PDF)

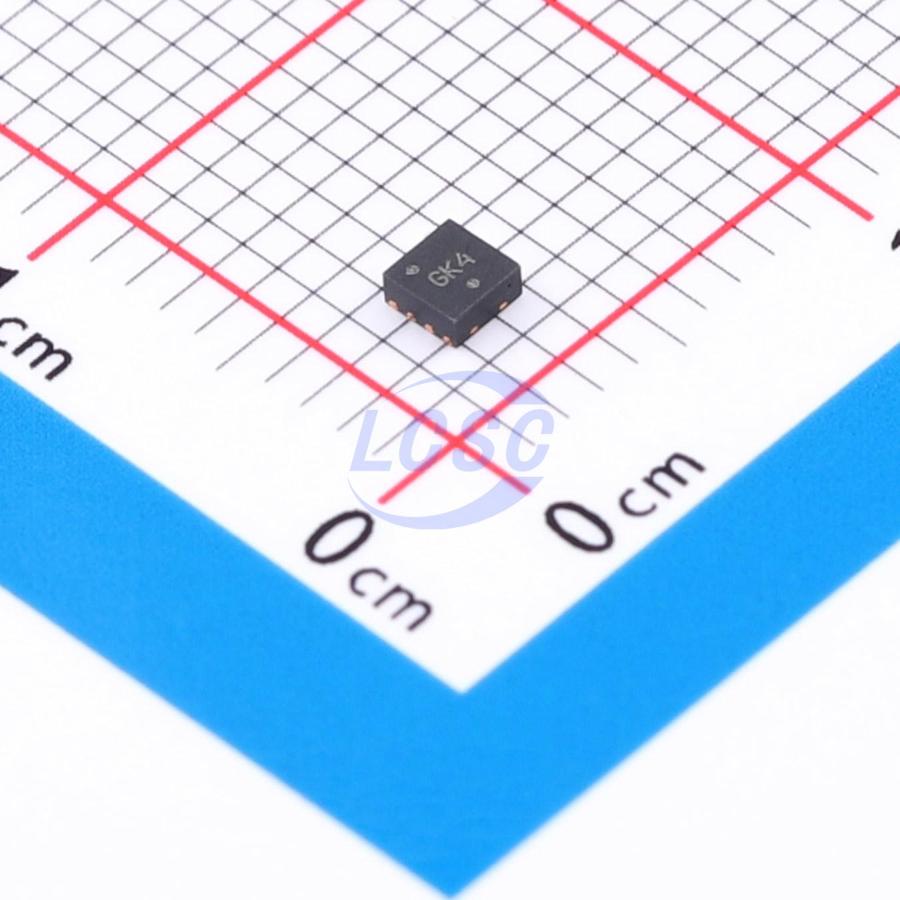

NCV8186BMN330TAG
3.3V Positive Fixed DFN-8-EP(2x2) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
DFN-8-EP(2x2)ROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- NCV8186BMN330TAG
- Store part #
- C893182
- Package / case
- DFN-8-EP(2x2)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C893182
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹84.87 | ₹84.87 |
| 10+ | ₹82.91 | ₹829.10 |
| 30+ | ₹81.60 | ₹2,448.00 |
| 100+ | ₹80.29 | ₹8,029.00 |
1 × ₹84.87
₹84.87
excl. GST
₹100.15 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NCV8186BMN330TAG
₹84.87 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 90uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 1A
- Features
- Enable control;Over Current Protection;Built-in soft-start;Thermal shutdown;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.06 g
Overview
The NCV8186x series are CMOS LDO regulators featuring 1 A output current. The input voltage is as low as 1.8 V and the output voltage can be set from 1.2 V.
Applications
- Telematics, Infotainment & Cluster, General Purpose Automotive
- Building & Factory Automation, Smart Meters, and General Industrial
Key features
- Operating Input Voltage Range: 1.8 V to 5.5 V
- Output Voltage Range: 1.2 to 3.9 V
- Quiescent Current typ. 90 μA
- Low Dropout: 100 mV typ. at 1 A, ΔV_OUT = 3.0 V
- High Output Voltage Accuracy ±1%
- Stable with Small 1 μF Ceramic Capacitors
- Over−current Protection
- Built−in Soft Start Circuit to Suppress Inrush Current
- Thermal Shutdown Protection: 165 °C
- With (NCV8186A) and Without (NCV8186B) Output Discharge Function
- Available in Small DFN8 2 x 2 mm Package
- NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
- These Devices are Pb −Free, Halogen Free/BFR Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| NCV8186AMN330TAG#C893180onsemi · DFN-8(2x2) | onsemi | DFN-8(2x2) | 41 | ₹142.04 · 41 in stock | View | |
