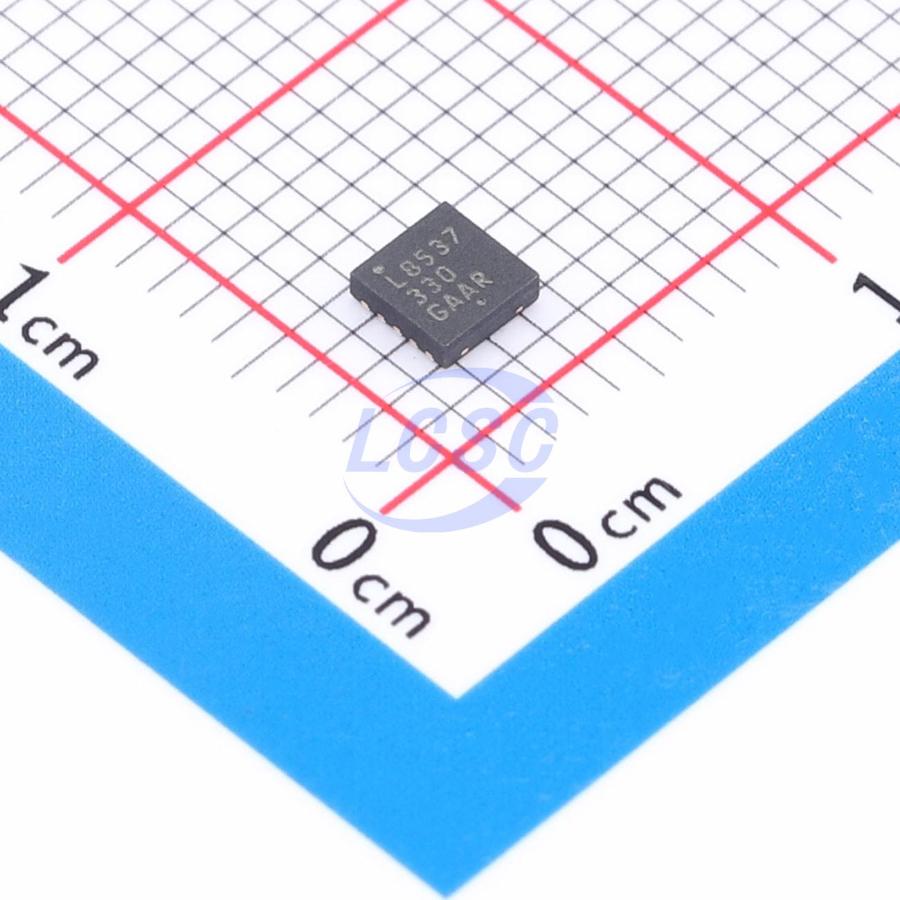

NCV8537ML330R2G

The NCV8537 is a high performance low dropout linear voltage regulator. It retains all the best features of its predecessor which includes high accuracy, excellent stability, low noise performance and reverse bias protection but now includes a Power Good output signal to enable monitoring of the supply system. The device is available with fixed or adjustable outputs and is packaged in a 10 pin 3x3 mm DFN package.

Applications

• Networking Systems, DSL/Cable Modems
• Audio Systems for Automotive Applications
• Navigation Systems
• Satellite Receivers

Key features

• High Accuracy Output Over Line and Load Variances (±0.9% at 25°C)
• Operating Temperature Range: -40°C to 125°C
• Power Good Output to Indicate the Regulator is Within Specified Limits
• Stable Output with Low Value Capacitors of any type and with no Minimum Load Current Requirement
• Incorporates Current Limiting and Reverse Bias Protection
• Thermal Shutdown Protection
• Low Dropout Voltage at Full Load (340 mV typ at Vo = 3.3 V)
• Low Noise (33 μVrms w/ 10 nF Cnr and 52 μVrms w/out Cnr)
• Low Shutdown Current (<1 mA)
• Reverse Bias Protected
• 2.9 V to 12 V Supply Range
• Available in 1.8 V, 2.5 V, 3.3 V, 5.0 V and Adjustable Output Voltages
• NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
• These are Pb−Free Devices
