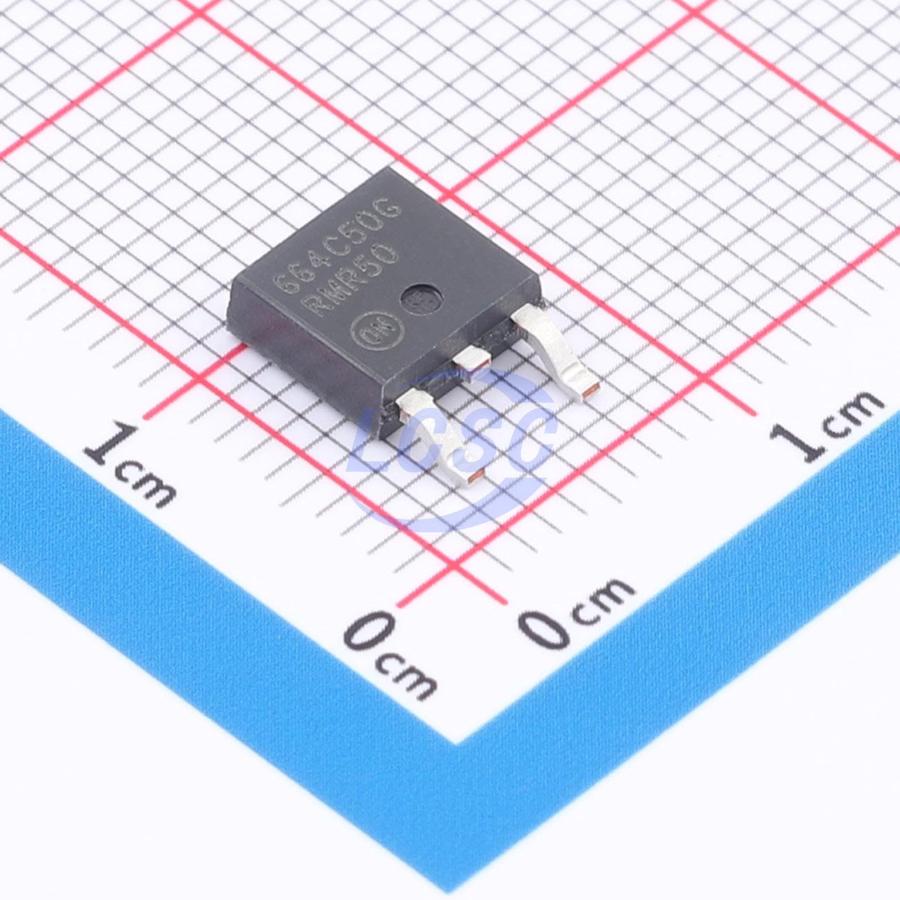

NCV8664CDT50RKG

The NCV8664C is a precision 3.3 V and 5.0 V fixed output, low dropout integrated voltage regulator with an output current capability of 150 mA. Careful management of light load current consumption, combined with a low leakage process, achieve a typical quiescent current of 22 μA. The NCV8664C is pin and functionally compatible with NCV4264−2C and could replace this part when lower quiescent current is required. The output voltage is accurate within ±2.0%, and maximum dropout voltage is 600 mV at full rated load current. It is internally protected against input supply reversal, output overcurrent faults, and excess die temperature. No external components are required to enable these features.

Key features

• 3.3 V, 5.0 V Fixed Output
• ±2.0 % Output Accuracy, Over Full Temperature Range
• 22 μA Typical Quiescent Current
• 600 mV Maximum Dropout Voltage at 150 mA Load Current
• Wide Input Voltage Operating Range of 4.5 V to 45 V
• Internal Fault Protection: -42 V Reverse Voltage, Short Circuit/Overcurrent, Thermal Overload
• NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
• EMC Compliant
• These are Pb−Free Devices
