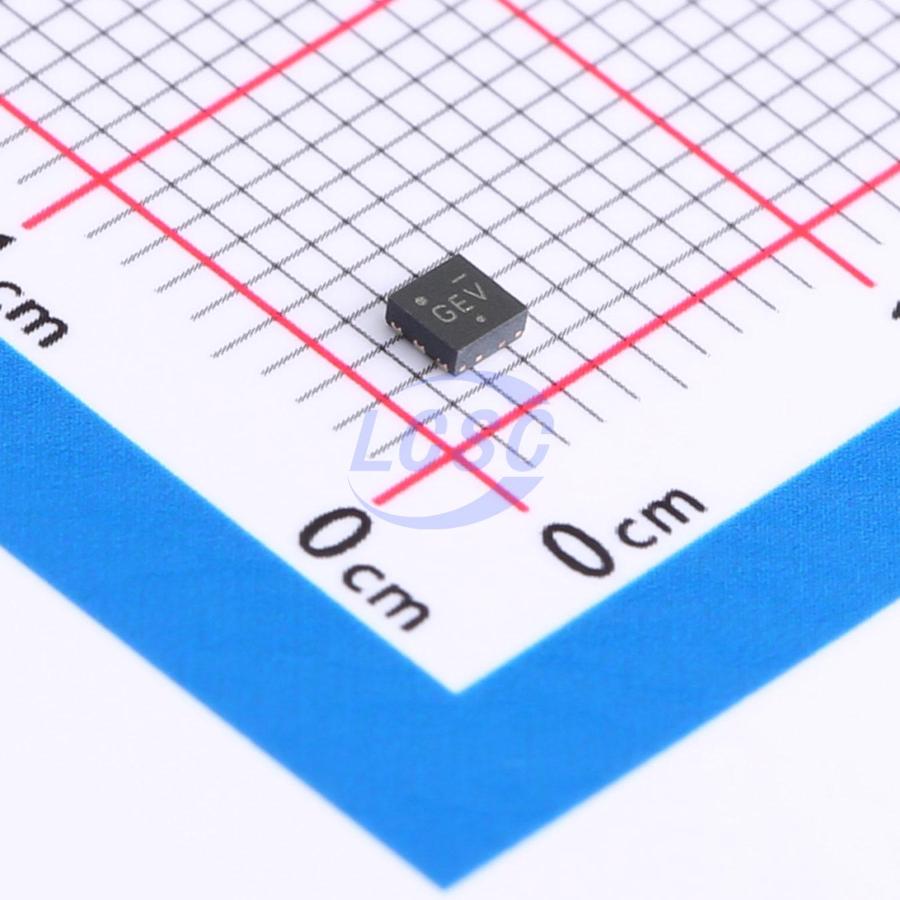

NCV8711BMTW500TBG

5V Positive Fixed TDFN-6-EP(2x2) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

TDFN-6-EP(2x2)ROHS3 CompliantActive

100 mA, 18 V, 1 μA IQ LDO Regulator

Manufacturer: onsemi
Manufacturer part #: NCV8711BMTW500TBG
Store part #: C893288
Package / case: TDFN-6-EP(2x2)
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

153 in stock

#C893288

Stock & price checked 10 days ago

Quantity	Unit price	Pack price
1+	₹149.86	₹149.86
10+	₹126.49	₹1,264.90
30+	₹113.84	₹3,415.20
100+	₹99.26	₹9,926.00
500+	₹88.97	₹44,485.00
1,000+	₹86.19	₹86,190.00

Quantity (min 1)

1 × ₹149.86

₹149.86

excl. GST

₹176.83 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

NCV8711BMTW500TBG

₹149.86 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 5V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Tj)
Supply Current (Iq): 1.8uA
Output Configuration: Positive
Output Current: 100mA
Operating Voltage: 18V
Output Type: Fixed
Features: Enable control;Operating status indication;Built-in soft-start;Over Current Protection;Thermal shutdown;Input under-voltage protection

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.04 g

Overview

The NCV8711 device is a unique combination of features − very low quiescent current, fast transient response and high input and output voltage ranges. The NCV8711 is CMOS LDO regulator designed for up to 18 V input voltage and 100 mA output current. Quiescent current of only 1 μA makes this device ideal solution for battery−powered, always−on systems. Several fixed output voltage versions are available as well as the adjustable version. The device (version B) implements power good circuit (PG) which indicates that output voltage is in regulation. This signal could be used for power sequencing or as a microcontroller reset. Internal short circuit and over temperature protections saves the device against overload conditions.

Applications

Body Control Modules
LED Lighting
On Board Charger
General Purpose Automotive

Key features

Operating Input Voltage Range: 2.7 V to 18 V
Output Voltage: 1.2 V to 17 V
Capable of Sourcing 140 mA Peak Output Current
Very Low Quiescent Current: 1 μA typ.
Low Dropout: 215 mV typ. at 100 mA
Output Voltage Accuracy ±1%
Power Good Output (Version B)
Stable with Small 1 μF Ceramic Capacitors
Built−in Soft Start Circuit to Suppress Inrush Current
Over−Current and Thermal Shutdown Protections
Available in Small TSOP−5 and WDFNW6 (2x2) Packages
These Devices are Pb−Free and are RoHS Compliant
