onsemiDatasheet (PDF)

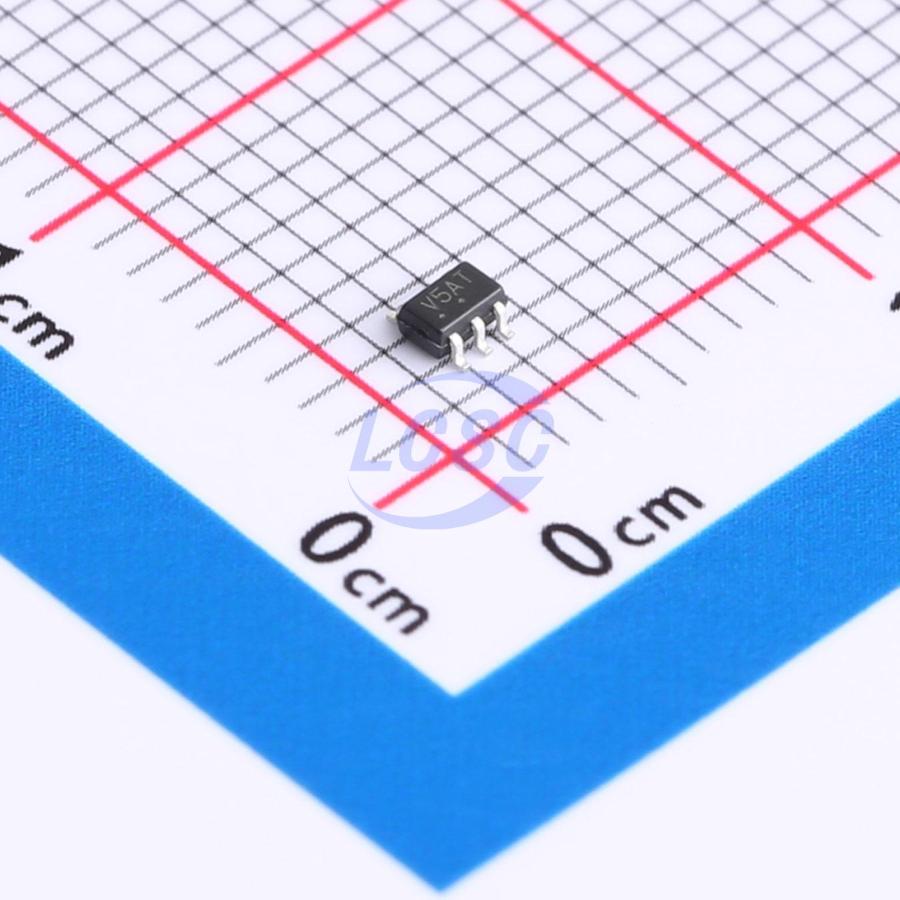

NCV8715SQ12T2G
1.2V Positive Fixed SC-88A-5(SC-70-5) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SC-88A-5(SC-70-5)ROHS3 CompliantActive
Linear Voltage Regulator, Low Dropout, Ultra-Low lq, Wide Input Voltage
- Manufacturer
- onsemi
- Manufacturer part #
- NCV8715SQ12T2G
- Store part #
- C893296
- Package / case
- SC-88A-5(SC-70-5)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
78 in stock
#C893296
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹91.43 | ₹91.43 |
| 10+ | ₹89.47 | ₹894.70 |
| 30+ | ₹88.16 | ₹2,644.80 |
| 100+ | ₹86.87 | ₹8,687.00 |
1 × ₹91.43
₹91.43
excl. GST
₹107.89 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NCV8715SQ12T2G
₹91.43 for 1 + GST
Specifications
- Output Voltage
- 1.2V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Ta)
- Supply Current (Iq)
- 4.7uA
- Output Configuration
- Positive
- Operating Voltage
- 24V
- Output Current
- 50mA
- Features
- Thermal shutdown;Over Current Protection;Input under-voltage protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.04 g
Overview
The NCV8715 is 50 mA LDO Linear Voltage Regulator. It is a very stable and accurate device with ultra−low ground current consumption (4.7 μA over the full output load range) and a wide input voltage range (up to 24 V). The regulator incorporates several protection features such as Thermal Shutdown and Current Limiting.
Applications
- Infotainment, Audio
- Communication Systems
- Safety Systems
Key features
- Operating Input Voltage Range: 2.5 V to 24 V
- Fixed Voltage Options Available: 1.2 V to 5.0 V
- Ultra Low Quiescent Current: Max. 5.8 μA Over Full Load and Temperature
- ±2% Accuracy Over Full Load, Line and Temperature Variations
- PSRR: 52 dB at 100 kHz
- Noise: 190 μVRMS from 200 Hz to 100 kHz
- Thermal Shutdown and Current Limit protection
- Available in XDFN6 1.5 x 1.5 mm and SC−70 (SC−88A) Package
- NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable; Device Temperature Grade 1: -40°C to +125°C Ambient Operating Temperature Range
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| NCP715SQ12T2G#C892747onsemi · SC-88A-5(SC-70-5) | onsemi | SC-88A-5(SC-70-5) | On request | ₹22.44 · 0 in stock | View | |
