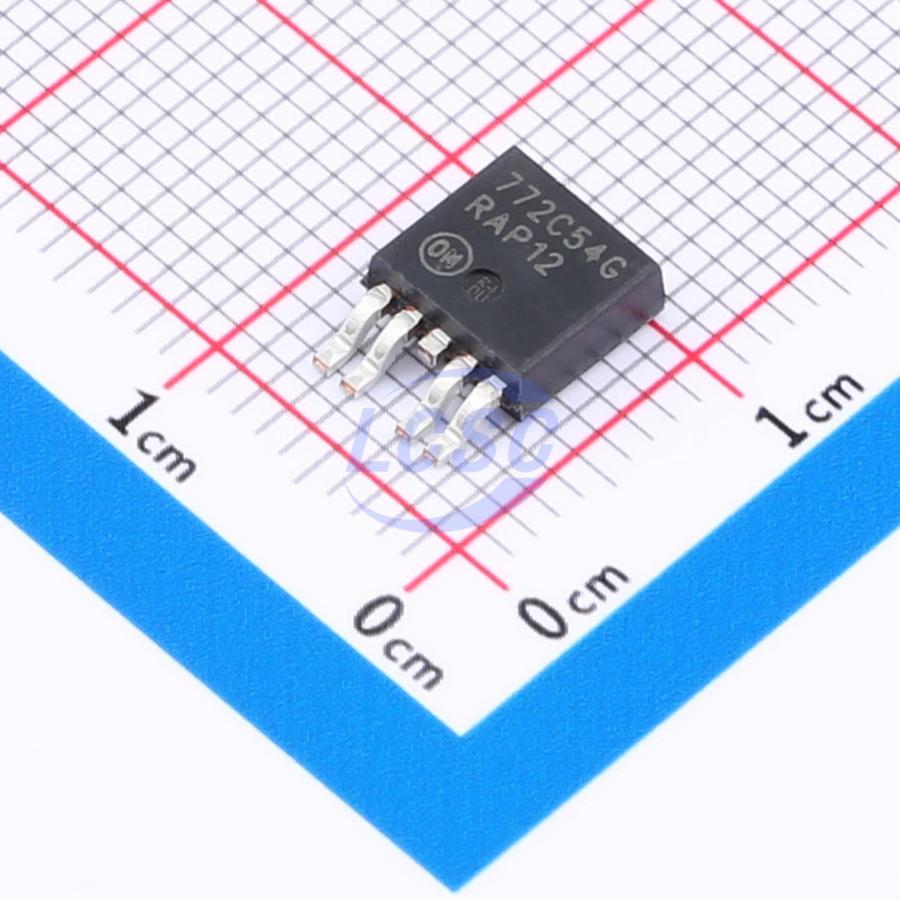

NCV8772CDT504RKG

The NCV8772C is 350 mA LDO regulator with integrated reset function dedicated for microprocessor applications. Its robustness allows NCV8772C to be used in severe automotive environments. Ultra low quiescent current as low as 18 μA typical makes it suitable for applications permanently connected to battery requiring ultra low quiescent current with or without load. This feature is especially critical when modules remain in active mode when ignition is off. The Enable function can be used for further decrease of quiescent current in shutdown mode to 1 μA. The NCV8772C contains protection functions as current limit, thermal shutdown and reverse output current protection.

Applications

• Body Control Module
• Instruments and Clusters
• Occupant Protection and Comfort
• Powertrain

Key features

• Output Voltage Options: 3.3 V and 5 V
• Output Voltage Accuracy: ±2%
• Output Current up to 350 mA
• Ultra Low Quiescent Current: typ 18 μA (max 24 μA)
• Very Wide Range of Cout and ESR Values for Stability
• Enable Function − 1 μA Max Quiescent Current when disabled
• Wide Input Voltage Operation Range: up to 40 V
• Protection Features − Current Limitation − Thermal Shutdown − Reverse Output Current Protection
• EMC Compliant
• AEC−Q100 Grade 1 Qualified and PPAP Capable
• These Devices are Pb−Free and are RoHS Compliant
