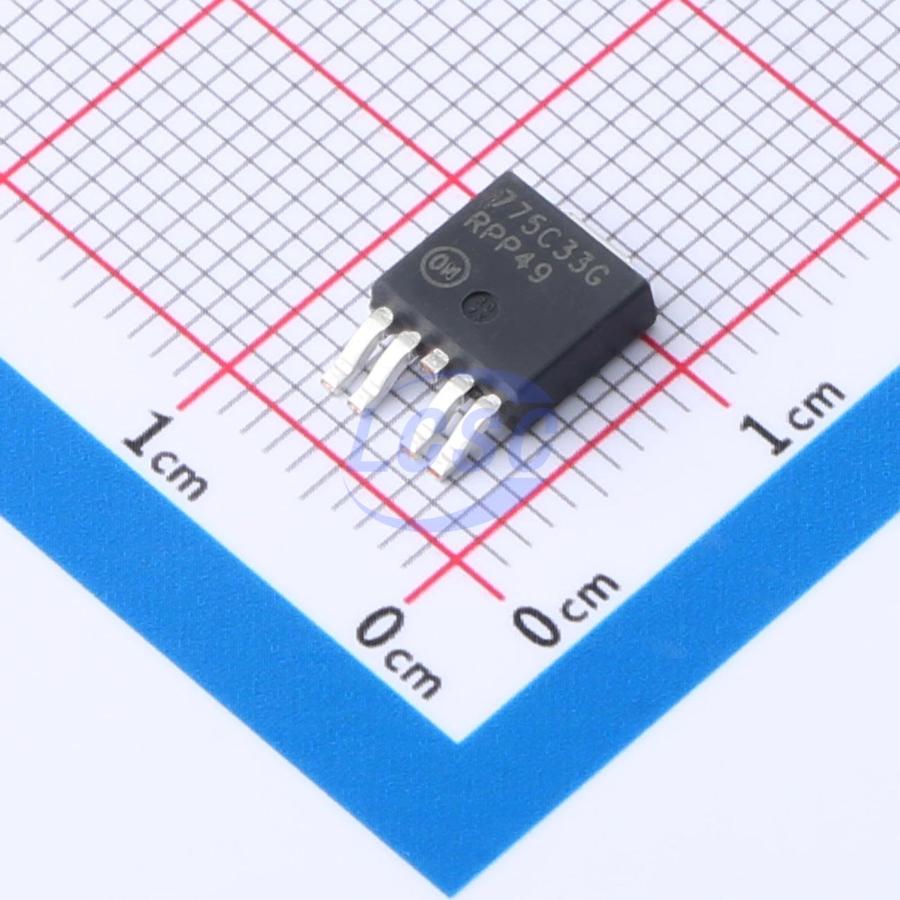

NCV8775CDT33RKG
3.3V Positive Fixed DPAK-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
DPAK-5ROHS3 CompliantActive
350 mA LDO Regulator with Reset
- Manufacturer
- onsemi
- Manufacturer part #
- NCV8775CDT33RKG
- Store part #
- C904698
- Package / case
- DPAK-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
80 in stock
#C904698
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹131.35 | ₹131.35 |
| 10+ | ₹128.52 | ₹1,285.20 |
| 30+ | ₹126.56 | ₹3,796.80 |
| 100+ | ₹124.60 | ₹12,460.00 |
1 × ₹131.35
₹131.35
excl. GST
₹154.99 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
NCV8775CDT33RKG
₹131.35 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+150℃@(Tj)
- Supply Current (Iq)
- 19uA
- Output Configuration
- Positive
- Operating Voltage
- 40V
- Output Current
- 350mA
- Features
- Reset function;Over Current Protection;Short Circuit Protection;Thermal shutdown;Enable control
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.398 g
Overview
The NCV8775C is 350 mA LDO regulator with integrated reset functions dedicated for microprocessor applications. Its robustness allows NCV8775C to be used in severe automotive environments. Ultra low quiescent current as low as 19 μA typical makes it suitable for applications permanently connected to battery requiring ultra low quiescent current with or without load. This feature is especially critical when modules remain in active mode when ignition is off. The NCV8775C contains protection functions as current limit, thermal shutdown.
Applications
- Body Control Module
- Instruments and Clusters
- Occupant Protection and Comfort
- Powertrain
Key features
- Output Voltage Options: 3.3 V and 5 V
- Output Voltage Accuracy: ±2%
- Output Current up to 350 mA
- Ultra Low Quiescent Current: typ 19 μA (max 28 μA)
- Very Wide Range of Cout and ESR Values for Stability
- Microprocessor Compatible Control Functions: − Reset with Adjustable Delay
- Wide Input Voltage Operation Range: up to 40 V
- Protection Features − Current Limitation − Thermal Shutdown
- NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Grade 1 Qualified and PPAP Capable
- EMC Compliant
- These are Pb−Free Devices
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NCV8772CDT334RKG#C3745155onsemi · DPAK-5 | onsemi | DPAK-5 | 43 | ₹127.56 · 43 in stock | View |
 | NCV4276CDT33RKG#C603936onsemi · TO-252-5 | onsemi | TO-252-5 | 50 | ₹203.40 · 50 in stock | View |
 | BD433M5WFPJ-CZE2#C2981754ROHM · TO252-J5(F) | ROHM | TO252-J5(F) | 31 | ₹216.16 · 31 in stock | View |
| NCV87722DT33RKG#C904695onsemi · DPAK-5 | onsemi | DPAK-5 | On request | ₹123.95 · 0 in stock | View | |
| NCV4276DT33RKG#C904620onsemi · TO-252-5 | onsemi | TO-252-5 | On request | ₹111.63 · 0 in stock | View | |
