JSMSEMIDatasheet (PDF)

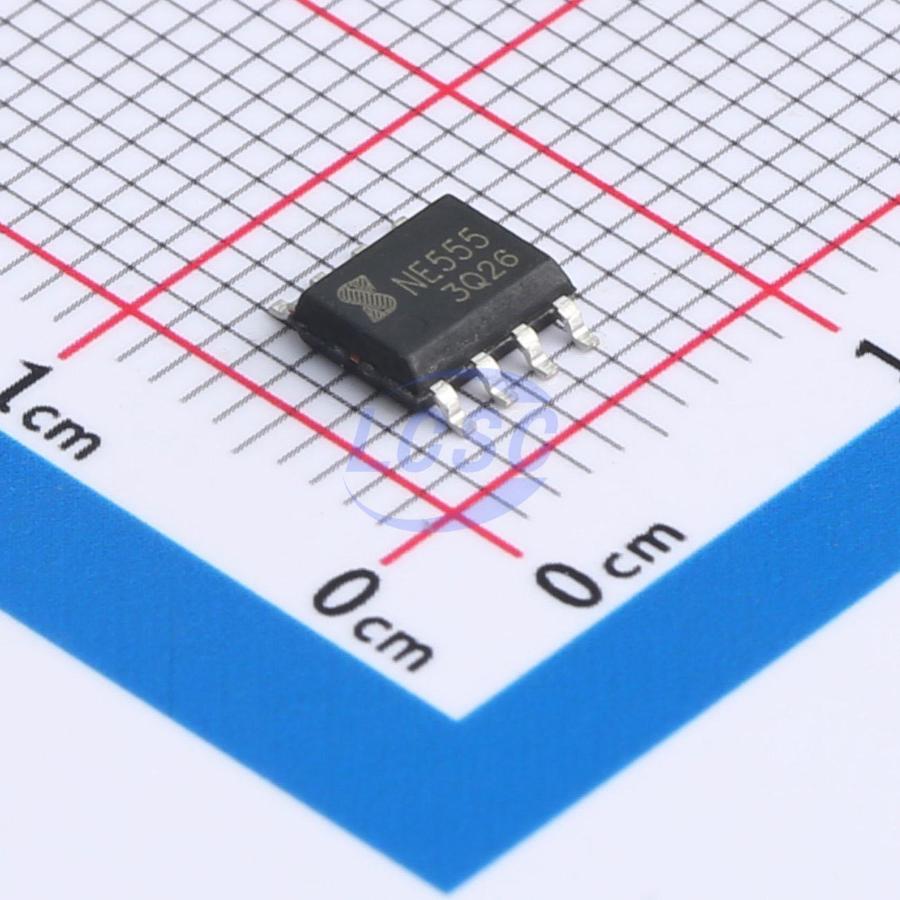

NE555DR-JSM
SOP-8 Programmable Timers and Oscillators RoHS
SOP-8ROHS CompliantActive
Precision timer
- Manufacturer
- JSMSEMI
- Manufacturer part #
- NE555DR-JSM
- Store part #
- C7529466
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
87,500 in stock
#C7529466
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.61 | ₹56.10 |
| 100+ | ₹4.45 | ₹445.00 |
| 300+ | ₹3.86 | ₹1,158.00 |
| 2,500+ | ₹3.37 | ₹8,425.00 |
| 5,000+ | ₹3.03 | ₹15,150.00 |
| 10,000+ | ₹2.84 | ₹28,400.00 |
10 × ₹5.61
₹56.10
excl. GST
₹66.20 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
NE555DR-JSM
₹56.10 for 10 + GST
Specifications
- Supply Current
- 1.5mA
- Features
- Reset function;Adjustable duty cycle oscillation
- Operating Temperature
- -20℃~+70℃
- Output Current
- 200mA
- Timer Number
- 1
- Voltage - Supply
- 4.5V~15V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.183 g
Overview
NE555DR is a bipolar IC capable of generating high-precision timing pulses. It consists of four internal circuit blocks: a threshold comparator, a trigger comparator, an RS flip-flop, and an output stage. With a minimal number of external resistors and capacitors, it can be configured as a timing trigger circuit, PWM circuit, audio oscillator, and more. Widely used in toys, traffic signaling, automation control, and other applications.
Applications
- Audio pulse generator, frequency divider, PWM, pulse phase modulation
- Device timing, traffic light control, access control, industrial control
Key features
- Excellent timing accuracy
- Strong output drive capability
- Maximum operating frequency exceeding 500KHz
- TTL-compatible
- Package: SOP8, DIP8
- Good temperature stability
- Timing range from microseconds to hours (precisely adjustable via external RC components)
