Nexperia

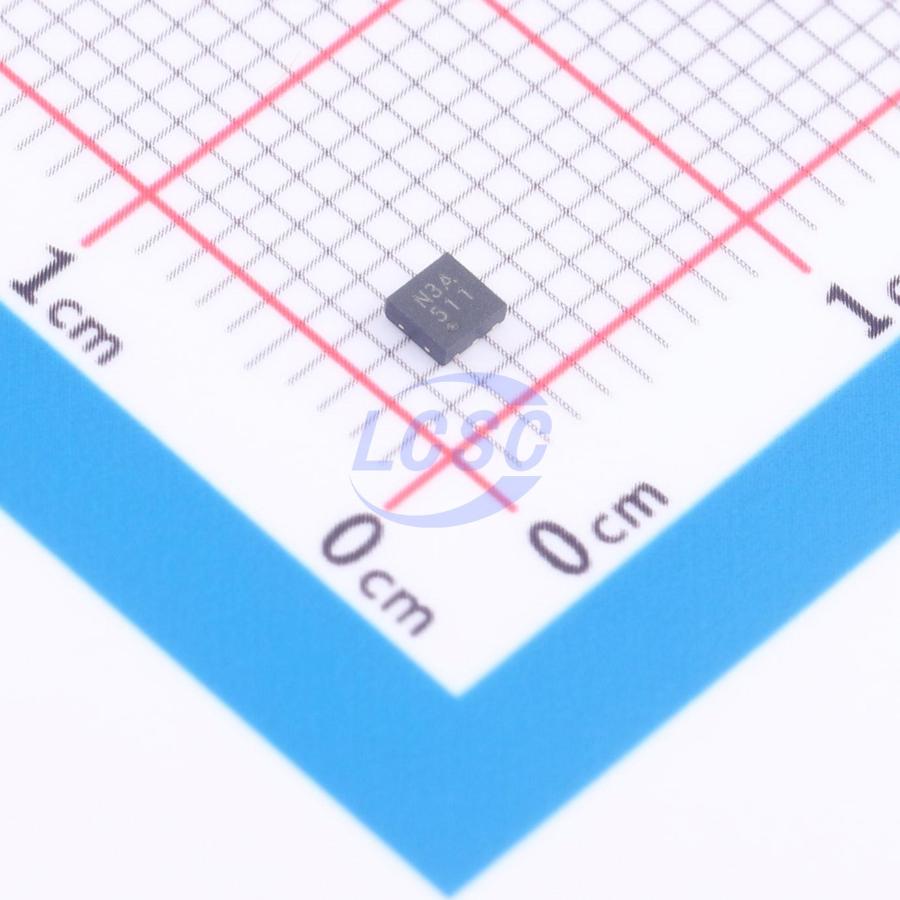

NEX90230AGA-Q100Z

HWSON-6(2x2) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators

HWSON-6(2x2)RoHSActive

Manufacturer: Nexperia
Manufacturer part #: NEX90230AGA-Q100Z
Store part #: C48941472
Package / case: HWSON-6(2x2)
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

9 in stock

#C48941472

Stock & price checked 9 days ago

Quantity	Unit price	Pack price
1+	₹177.15	₹177.15
10+	₹173.25	₹1,732.50
30+	₹170.64	₹5,119.20
100+	₹168.03	₹16,803.00

Quantity (min 1)

1 × ₹177.15

₹177.15

excl. GST

₹209.04 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

NEX90230AGA-Q100Z

₹177.15 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.54 g

Overview

NEX90x30-Q100 is a low-dropout linear regulator designed for applications with input voltages up to 40 V. It features a typical quiescent current IQ of only 5.3 μA at light load and a typical shutdown current ISHUT of 300 nA when disabled. These characteristics make the device well-suited for powering always-on components such as microcontrollers and CAN or LIN transceivers in standby or CAN wake-up systems. In battery-powered automotive applications, low IQ and ISHUT are critical for conserving energy and extending battery life. Always-on systems require ultra-low IQ across a wide temperature range to ensure continued operation when the vehicle ignition is off. In CAN wake-up systems or certain sleep modes, maintaining ultra-low ISHUT is essential for minimizing battery drain when the system is in sleep or disabled mode. The device integrates short-circuit, overcurrent, and thermal shutdown protection. It operates over an ambient temperature range of -40℃ to 125℃ and a junction temperature range of -40℃ to 150℃. Additionally, the device is available in enhanced thermal performance packages, including HTSSOP8 and HWSON6 with wettable flanks.

Applications

Body Control Module
Automotive Lighting
Automotive Head Unit & Instrument Cluster
Telematics Control Unit
EV & HEV Powertrain

Key features

AEC-Q100 qualified for automotive applications
Temperature Grade 1: ambient temperature range –40℃ to 125℃; junction temperature range –40℃ to 150℃
Input voltage range: 3 V to 40 V
Output voltage range: 3.3 V and 5 V
Output voltage accuracy: ±2%
Maximum output current: 300 mA
Low dropout voltage: 460 mV typical at VOUT = 5 V, 300 mA output
Low quiescent current: 5.3 µA typical at light load
Typical shutdown current: 300 nA
Stable with multiple ceramic output capacitors: ESR range 0.001 Ω to 2 Ω; output capacitance range 1 μF to 220 μF
Integrated protection features: thermal shutdown, short-circuit and overcurrent protection
Enhanced thermal performance packages: HTSSOP8, RθJA = 62.3 °C/W; HWSON6, RθJA = 66.7 °C/W
