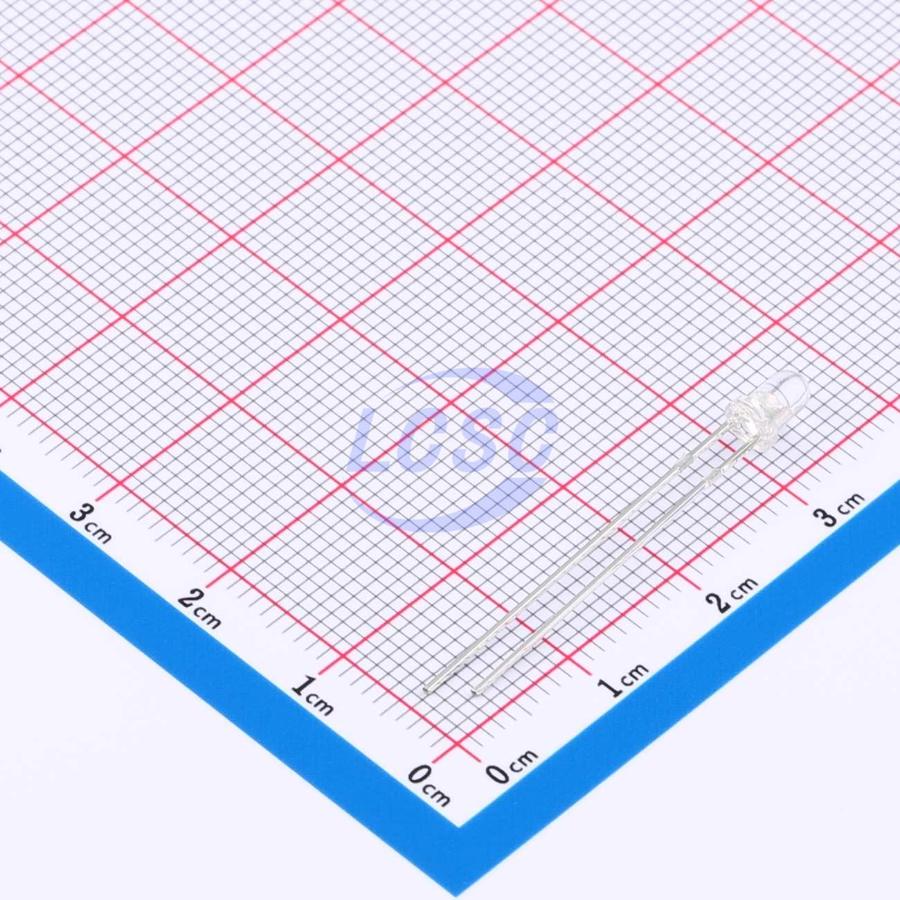

NFD3401WC
White LED Indication - Discrete 3.4V Through Hole,D=3mm
LED WHITE WATER CLEAR TH
- Manufacturer
- NATIONSTAR
- Manufacturer part #
- NFD3401WC
- Store part #
- C20618153
- Package / case
- Through Hole,D=3mm
- Category
- LED Indication - Discrete
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,880 in stock
#C20618153
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.48 | ₹64.80 |
| 100+ | ₹5.23 | ₹523.00 |
| 300+ | ₹4.60 | ₹1,380.00 |
| 1,000+ | ₹3.76 | ₹3,760.00 |
| 5,000+ | ₹3.39 | ₹16,950.00 |
| 10,000+ | ₹3.19 | ₹31,900.00 |
10 × ₹6.48
₹64.80
excl. GST
₹76.46 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per bag
NFD3401WC
₹64.80 for 10 + GST
Specifications
- Color Temperature
- 6000K~9000K
- Lens Color
- Water Clear
- Luminous Intensity
- 25cd
- Viewing Angle
- 20°
- Forward Current
- 30mA
- Illumination Color
- White
- Lamp Holder Type
- 3mm Round Lens
- Voltage - Forward(Vf)
- 3.4V
- Operating Temperature
- -30℃~+85℃
- Diode Configuration
- Discrete Diode
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Bag-packed
- Standard pack
- 1,000 / Bag
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.164 g
Overview
This product is primarily used as an electronic component for signal indication and illumination in a wide range of electronic products. It is also widely used as a display unit in indoor and outdoor information display boards.
Applications
- Various electronic products
- Indoor and outdoor information displays
Key features
- Φ3 mm white LED
- Die material: InGaN
- Water-clear package
- Low power consumption, high reliability, long lifespan
- RoHS compliant
