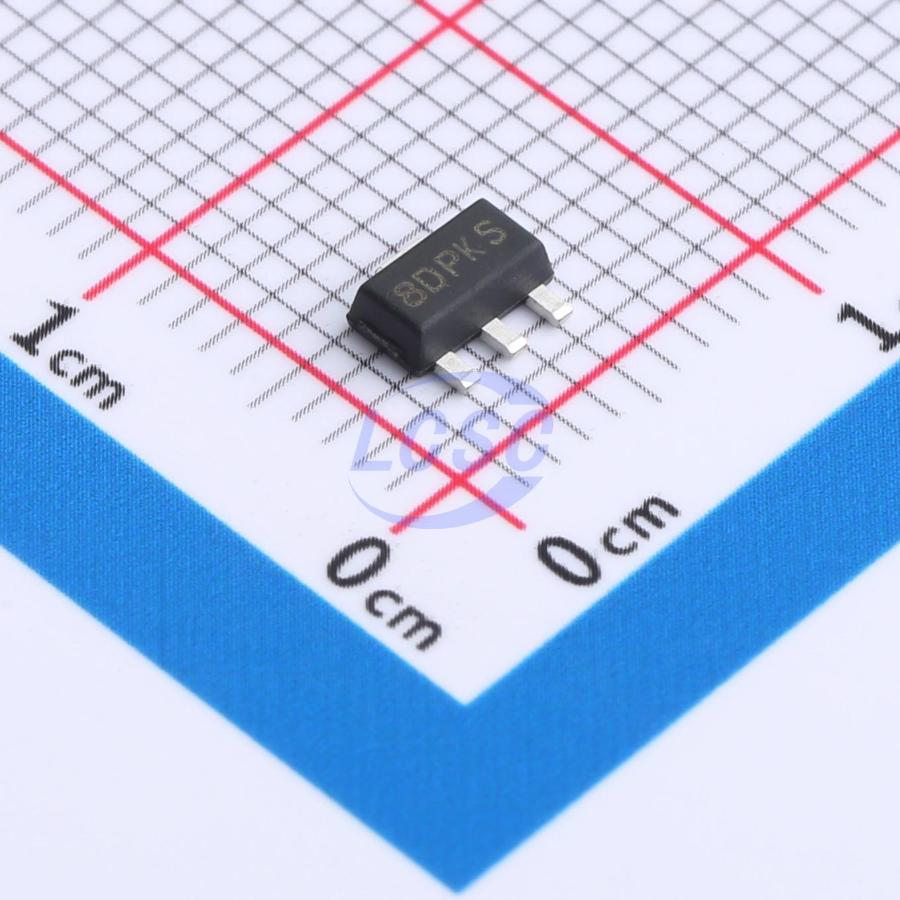

NH6375A50P
Linear Voltage Regulator IC Positive Fixed 1 Output 150mA SOT-89-3
SOT-89-3ROHS CompliantActive
IC REG LINEAR 5V 150mA SOT-89-3
- Manufacturer
- NH
- Manufacturer part #
- NH6375A50P
- Store part #
- C7427778
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,195 in stock
#C7427778
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.30 | ₹56.50 |
| 50+ | ₹9.82 | ₹491.00 |
| 150+ | ₹9.08 | ₹1,362.00 |
| 500+ | ₹8.52 | ₹4,260.00 |
| 2,500+ | ₹8.45 | ₹21,125.00 |
| 5,000+ | ₹8.23 | ₹41,150.00 |
5 × ₹11.30
₹56.50
excl. GST
₹66.67 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
NH6375A50P
₹56.50 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 6uA
- Output Configuration
- Positive
- Operating Voltage
- 50V
- Output Current
- 150mA
- Features
- Enable control;Short Circuit Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.136 g
Overview
The NH6675 series are a group of positive voltage regulators manufactured by CMOS technologies with low power consumption and low dropout voltage, which provide large output currents even when the difference of the input-output voltage is small. The NH6675 series can deliver 150mA output current and allow an input voltage as high as 50V. The series are very suitable for the battery-powered equipments, such as RF applications and other systems requiring a quiet voltage source.
Applications
- Cordless Phones
- Radio control systems
- Laptop, Palmtops and PDAs
- Single-lens reflex DSC
- PC peripherals with memory
Key features
- Low Quiescent Current: 3uA
- Operating Voltage Range: 2.5V~50V
- Output Current: 150mA
- Low Dropout Voltage: 500mV@50mA(VOUT = 3.3V)
- Output Voltage: 1.2~12V
- High Accuracy: ±2%/±1%(Typ.)
- High Power Supply Rejection Ratio: 80dB@1kHz
- Low Output Noise: 27xVOUT μVRMS (10Hz~100kHz)
- Excellent Line and Load Transient Response
- Built-in Current Limiter, Short-Circuit Protection
- Over-Temperature Protection
