JRCDatasheet (PDF)

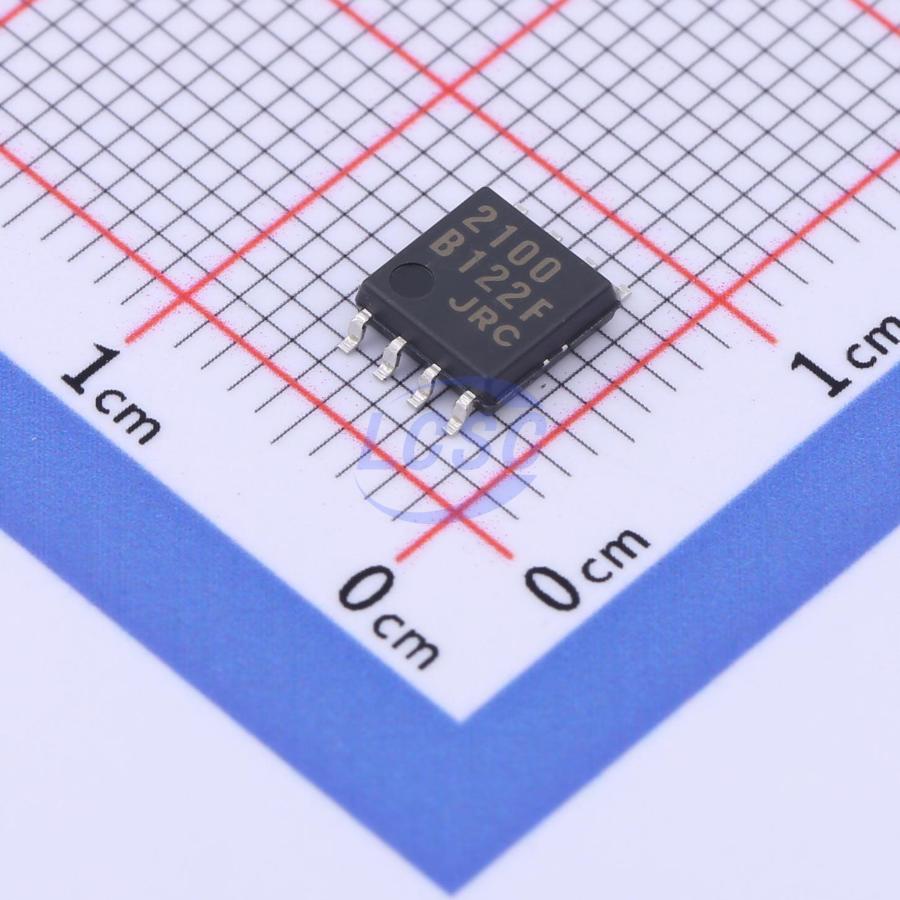

NJM2100M-TE1
2 6mV 4V/us 74dB 300nA 3.5mA 12MHz DMP-8 Instrumentation, Op Amps, Buffer Amps RoHS
DMP-8ROHS CompliantActive
DUAL OPERATIONAL AMPLIFIER
- Manufacturer
- JRC
- Manufacturer part #
- NJM2100M-TE1
- Store part #
- C3018892
- Package / case
- DMP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
800 in stock
#C3018892
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.71 | ₹158.55 |
| 50+ | ₹25.38 | ₹1,269.00 |
| 150+ | ₹22.66 | ₹3,399.00 |
| 500+ | ₹19.26 | ₹9,630.00 |
| 2,000+ | ₹17.27 | ₹34,540.00 |
| 4,000+ | ₹16.37 | ₹65,480.00 |
5 × ₹31.71
₹158.55
excl. GST
₹187.09 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
NJM2100M-TE1
₹158.55 for 5 + GST
Specifications
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 6mV
- Slew Rate
- 4V/us
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 74dB
- Ib - Input Bias Current
- 300nA
- Quiescent Current
- 3.5mA
- Gain Bandwidth Product
- 12MHz
- Dual Supply
- -3.5V~-1V;1V~3.5V
- Single Supply
- 1V~3.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.27 g
Overview
The NJM2100 is a low voltage operation and low saturation output voltage ( ±2.0VP-P at supply voltage ±2.5V ) operational amplifier. It is suitable for digital audio apparatus such as handy type CD, radio cassette CD, and portable DAT that are required 5V single supply operation and high output voltage.
Applications
- digital audio apparatus such as handy type CD, radio cassette CD, and portable DAT
Key features
- Single Supply Operation
- Operating Voltage ( ±1.0V~±3.5V )
- Low Saturation Output Voltage
- High Slew Rate ( 4V/μs typ. )
- Package Outline DIP8, SIP8, DMP8, SSOP8 SOP8 JEDEC 150mil
- Bipolar Technology
