VBsemi ElecDatasheet (PDF)

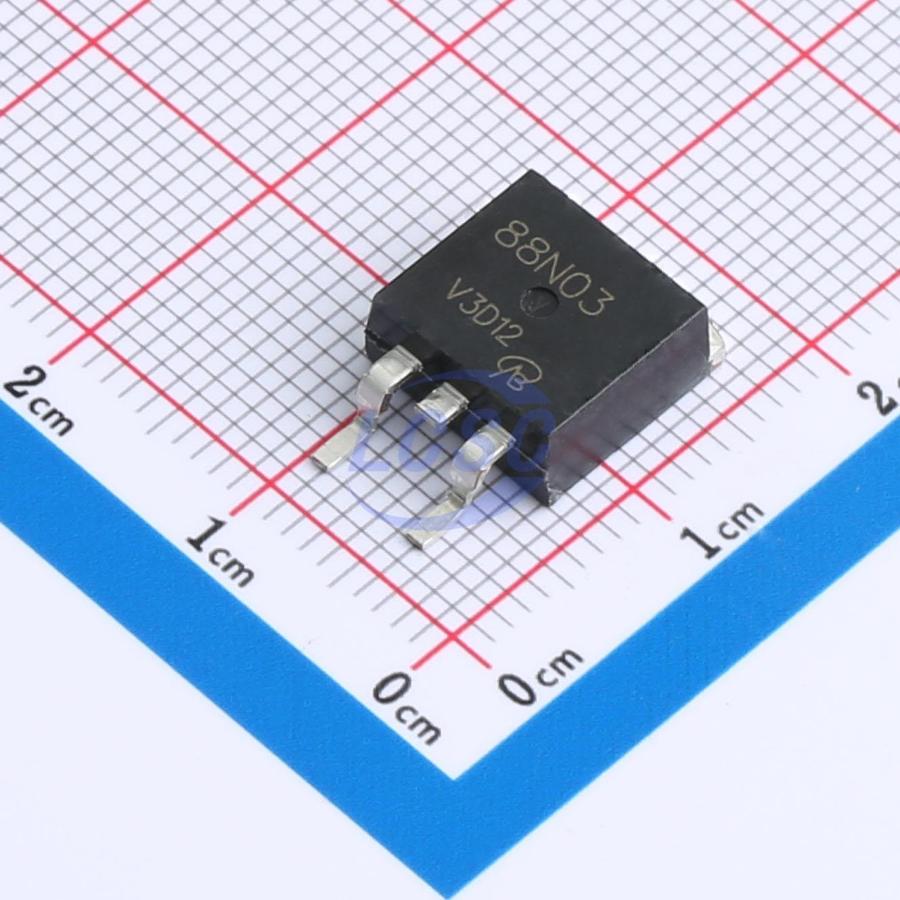

NP88N03KDG-VB
N-Channel 30V 150A Surface Mount TO-263(D2PAK)
TO-263(D2PAK)ROHS CompliantActive
MOSFET N-CH 30V 150A TO-263(D2PAK)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- NP88N03KDG-VB
- Store part #
- C7569130
- Package / case
- TO-263(D2PAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C7569130
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹130.06 | ₹130.06 |
| 10+ | ₹105.63 | ₹1,056.30 |
| 50+ | ₹93.51 | ₹4,675.50 |
| 100+ | ₹81.39 | ₹8,139.00 |
| 500+ | ₹74.17 | ₹37,085.00 |
| 1,000+ | ₹70.56 | ₹70,560.00 |
1 × ₹130.06
₹130.06
excl. GST
₹153.47 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
NP88N03KDG-VB
₹130.06 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 1.725nF
- Current - Continuous Drain(Id)
- 150A
- Ciss-Input Capacitance
- 6.201nF
- Reverse Transfer Capacitance (Crss)
- 970pF
- RDS(on)
- 2mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 171nC@10V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.65 g
Overview
Applications
- OR-ing
- Server
- DC/DC Converter
Key features
- Trench power MOSFET
- 100% Rg and UIS tested
- RoHS compliant per EU Directive 2011/65/EU
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RU30120S-VB#C19626687VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 20 | ₹130.06 · 20 in stock | View |
 | IRF3713STRPBF-VB#C20755667VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 10 | ₹123.52 · 10 in stock | View |
 | PSMN2R7-30BL-VB#C19632149VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 20 | ₹128.56 · 20 in stock | View |
 | L7833S-VB#C20417618VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 3 | ₹165.12 · 3 in stock | View |
| BUK9605-30A-VB#C52148718VBsemi Elec · TO-263 | VBsemi Elec | TO-263 | 10 | ₹142.16 · 10 in stock | View | |
