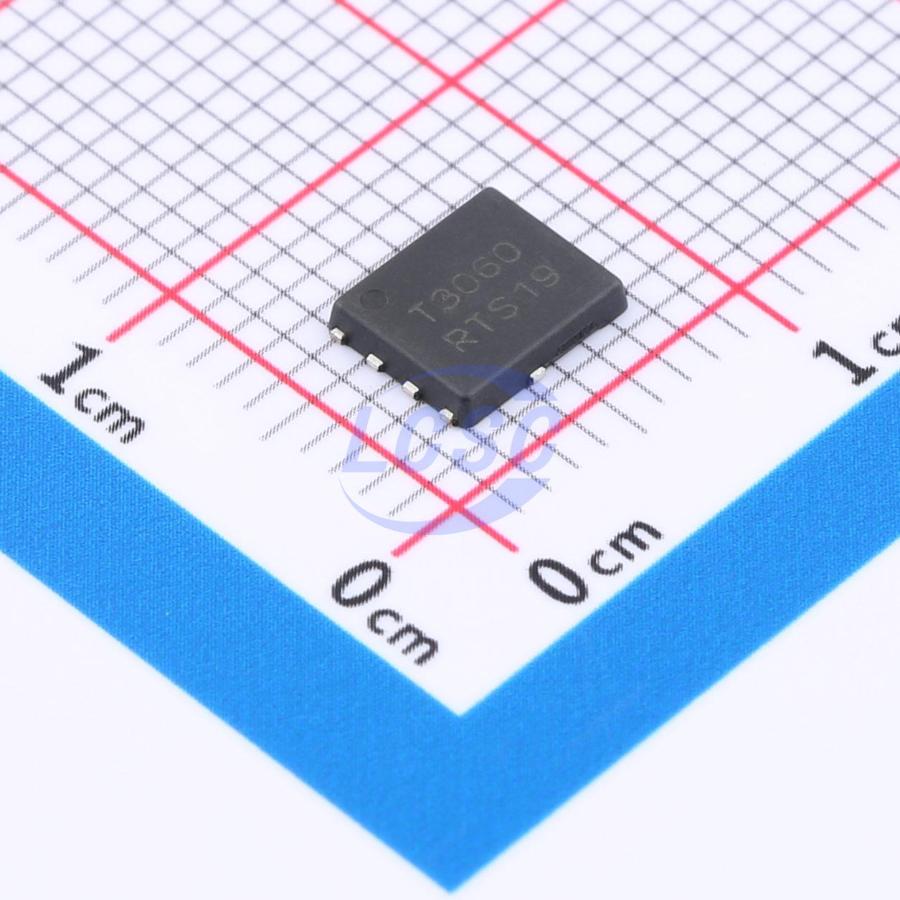

NRTS3060MFST3G
Diode 60V 30A Surface Mount DFN-5(5x6)
DIODE SCHOTTKY 60V DFN-5(5x6)
- Manufacturer
- onsemi
- Manufacturer part #
- NRTS3060MFST3G
- Store part #
- C3757827
- Package / case
- DFN-5(5x6)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
18 in stock
#C3757827
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹202.52 | ₹202.52 |
| 10+ | ₹168.19 | ₹1,681.90 |
| 30+ | ₹149.29 | ₹4,478.70 |
| 100+ | ₹128.00 | ₹12,800.00 |
| 500+ | ₹118.65 | ₹59,325.00 |
| 1,000+ | ₹114.31 | ₹1,14,310.00 |
1 × ₹202.52
₹202.52
excl. GST
₹238.97 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
NRTS3060MFST3G
₹202.52 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 60V
- Voltage - Forward(Vf@If)
- 600mV@30A
- Reverse Leakage Current (Ir)
- 100uA@60V
- Non-Repetitive Peak Forward Surge Current
- 1.2kA
- Current - Rectified
- 30A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.179 g
Overview
This Trench Schottky rectifier is high performance device in SO - 8 FL package. The lower forward voltage, less leakage current, and small junction capacitance are suitable to high switching frequency high density DC to DC conversion application. Offering higher avalanche energy capability for Oring or reverse protection application. The SO - 8 FL package provides an excellent thermal performance, less land area of board space, and low profile.
Applications
- High Switching Frequency DC/DC Converter
- 2nd Rectifier
- Freewheeling Diode used with Inductive Load
- Oring/Reverse Protection
Key features
- Lower Forward Voltage Drop
- Less Leakage Current in High Temperature
- Small Junction Capacitance for High Switching Frequency
- Higher Avalanche Energy Capability
- 175℃ Operating Junction Temperature
- Good Alternative Solution of SMC and DPAK Package
- Small Footprint - Land Area: 31.2mm²
- Low Profile - Maximum Height of 1.1 mm
- These Devices are Pb - Free, Halogen Free/BFR Free and are RoHS Compliant
