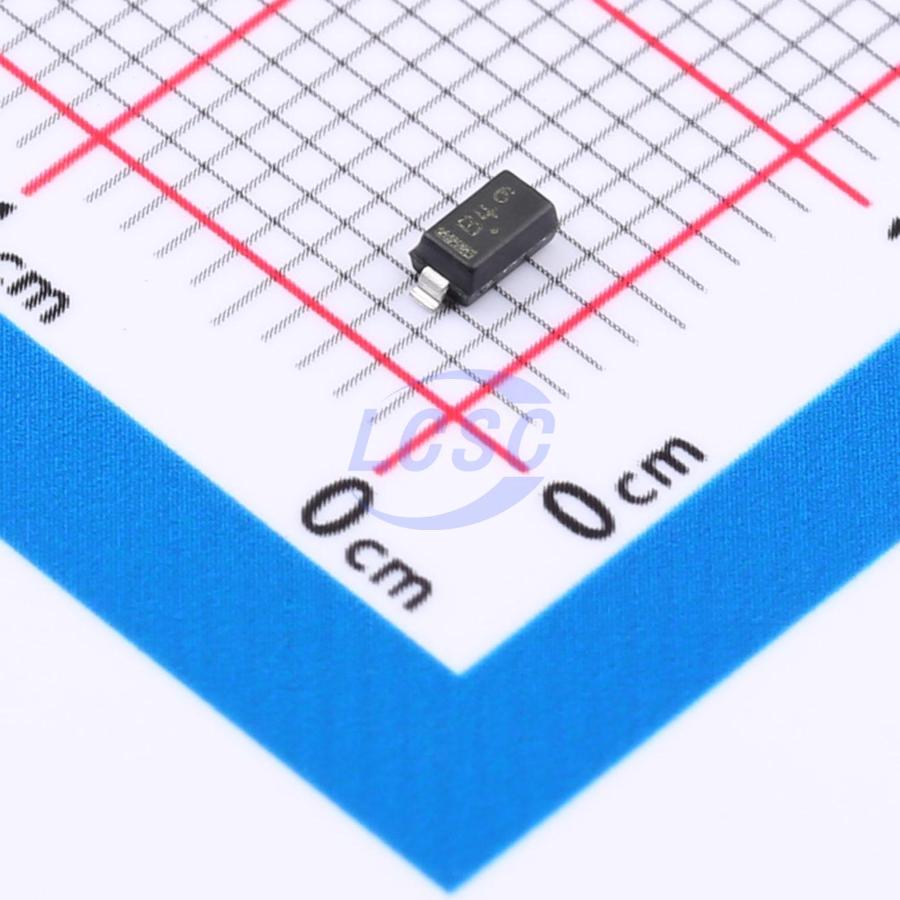

NRVB0540T3G
Diode 40V 500mA Surface Mount SOD-123
DIODE SCHOTTKY 40V SOD-123
- Manufacturer
- onsemi
- Manufacturer part #
- NRVB0540T3G
- Store part #
- C896817
- Package / case
- SOD-123
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
80 in stock
#C896817
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.91 | ₹159.55 |
| 50+ | ₹25.39 | ₹1,269.50 |
| 150+ | ₹22.60 | ₹3,390.00 |
| 500+ | ₹19.12 | ₹9,560.00 |
| 2,500+ | ₹17.57 | ₹43,925.00 |
| 5,000+ | ₹16.63 | ₹83,150.00 |
5 × ₹31.91
₹159.55
excl. GST
₹188.27 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
NRVB0540T3G
₹159.55 for 5 + GST
Specifications
- Operating Junction Temperature Range
- -55℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 40V
- Diode Configuration
- 1 Independent
- Voltage - Forward(Vf@If)
- 620mV@1A
- Reverse Leakage Current (Ir)
- 20uA@40V
- Non-Repetitive Peak Forward Surge Current
- 5.5A
- Current - Rectified
- 500mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.019 g
Overview
The Schottky Power Rectifier employs the Schottky Barrier principle with a barrier metal that produces optimal forward voltage drop - reverse current tradeoff. Ideally suited for low voltage, high frequency rectification, or as a free wheeling and polarity protection diodes in surface mount applications where compact size and weight are critical to the system. This package provides an alternative to the leadless 34 MELF style package.
Key features
- Guardring for Stress Protection
- Very Low Forward Voltage
- Epoxy Meets UL 94 V - 0 @ 0.125 in
- Package Designed for Optimal Automated Board Assembly
- AEC - Q101 Qualified and PPAP Capable
- NRVB Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements
- All Packages are Pb - Free*
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | B0540W#C19190000BLUE ROCKET · SOD-123 | BLUE ROCKET | SOD-123 | 2,960 | ₹3.19 · 2,960 in stock | View |
 | B0540W#C53100372TECH PUBLIC · SOD-123 | TECH PUBLIC | SOD-123 | 1,820 | ₹2.84 · 1,820 in stock | View |
 | MBR0540T1G#C19829616TECH PUBLIC · SOD-123 | TECH PUBLIC | SOD-123 | 1,840 | ₹3.43 · 1,840 in stock | View |
 | MBR0540#C22378362DOWO · SOD-123 | DOWO | SOD-123 | 8,850 | ₹1.89 · 8,850 in stock | View |
 | B0540W#C22380731BORN · SOD-123 | BORN | SOD-123 | 2,780 | ₹2.98 · 2,780 in stock | View |
