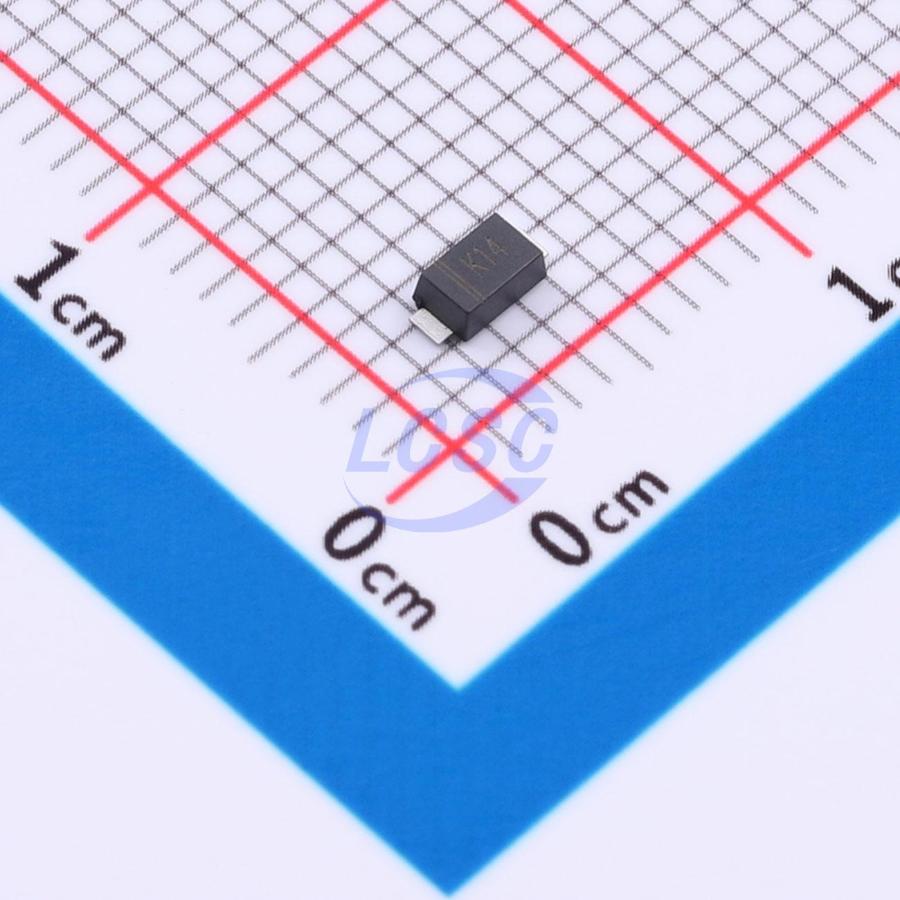

HXY MOSFETDatasheet (PDF)
NRVB140SFT3G-HXY
40V 1 Independent 550mV@1A 1A SOD-123FL Single Diodes
SOD-123FLRoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- NRVB140SFT3G-HXY
- Store part #
- C52754575
- Package / case
- SOD-123FL
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40 in stock
#C52754575
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹30.50 | ₹152.50 |
| 50+ | ₹25.04 | ₹1,252.00 |
| 150+ | ₹22.72 | ₹3,408.00 |
| 500+ | ₹19.81 | ₹9,905.00 |
| 3,000+ | ₹16.56 | ₹49,680.00 |
| 6,000+ | ₹15.78 | ₹94,680.00 |
5 × ₹30.50
₹152.50
excl. GST
₹179.95 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NRVB140SFT3G-HXY
₹152.50 for 5 + GST
Specifications
- Voltage - DC Reverse (Vr) (Max)
- 40V
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+125℃
- Voltage - Forward(Vf@If)
- 550mV@1A
- Reverse Leakage Current (Ir)
- 200uA@40V
- Current - Rectified
- 1A
- Non-Repetitive Peak Forward Surge Current
- 30A
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.04 g
Overview
Key features
- Average forward current: I_F(AV) = 1A
- Polarity: color band denotes cathode
- Package: SOD-123FL
- Single-phase half-wave, 60Hz resistive or inductive load; derate 20% for capacitive load
