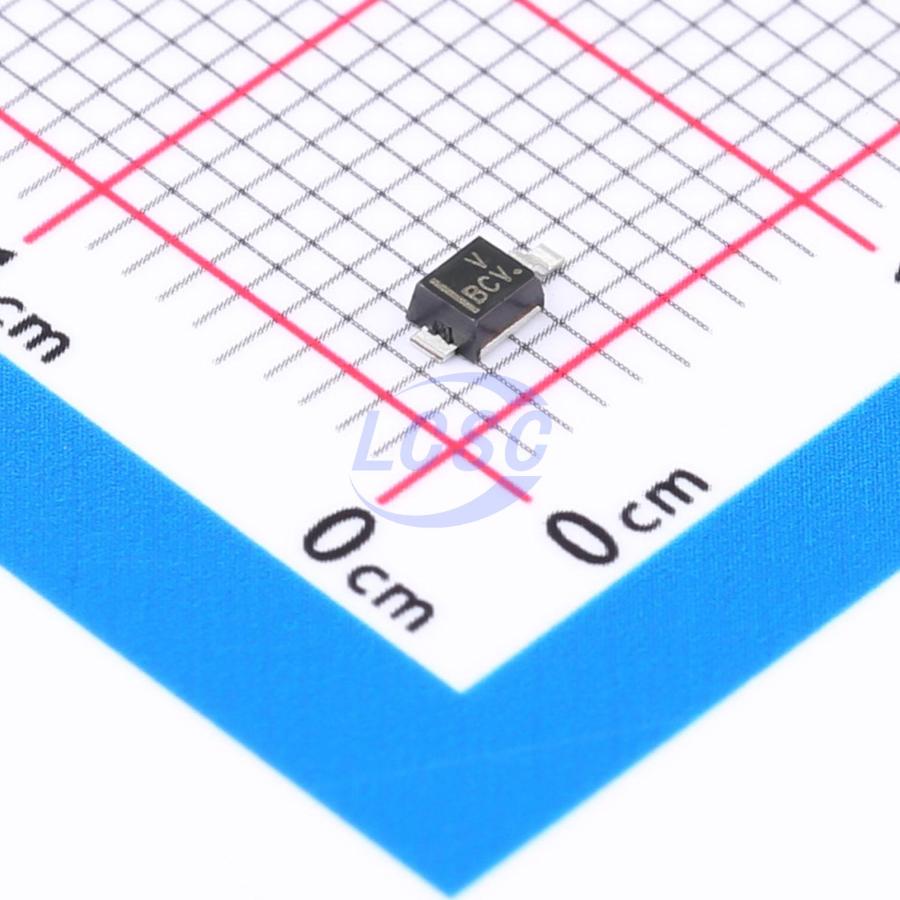

NRVBM120ET1G

The Schottky POWERMITE® employs the Schottky Barrier principle with a barrier metal and epitaxial construction that produces optimal forward voltage drop - reverse current tradeoff. The advanced packaging techniques provide for a highly efficient micro miniature, space saving surface mount Rectifier. With its unique heatsink design, the POWERMITE® has the same thermal performance as the SMA while being 50% smaller in footprint area, and delivering one of the lowest height profiles, < 1.1 mm in the industry.

Applications

• portable and battery powered products such as cellular and cordless phones, chargers, notebook computers, printers, PDAs and PCMCIA cards
• AC - DC and DC - DC converters, reverse battery protection, and "Oring" of multiple supply voltages and any other application where performance and size are critical

Key features

• Low Profile
• Maximum Height of 1.1 mm
• Small Footprint
• Footprint Area of 8.45 mm²
• Low VF Provides Higher Efficiency and Extends Battery Life
• ESD Ratings:
• Machine Model = C(>400 V)
• Human Body Model = 3B(>16,000 V)
• Supplied in 12 mm Tape and Reel
• Low Thermal Resistance with Direct Thermal Path of Die on Exposed Cathode Heat Sink
• AEC - Q101 Qualified PPAP Capable
• NRVB Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements
• All Packages are Pb - Free
