onsemiDatasheet (PDF)

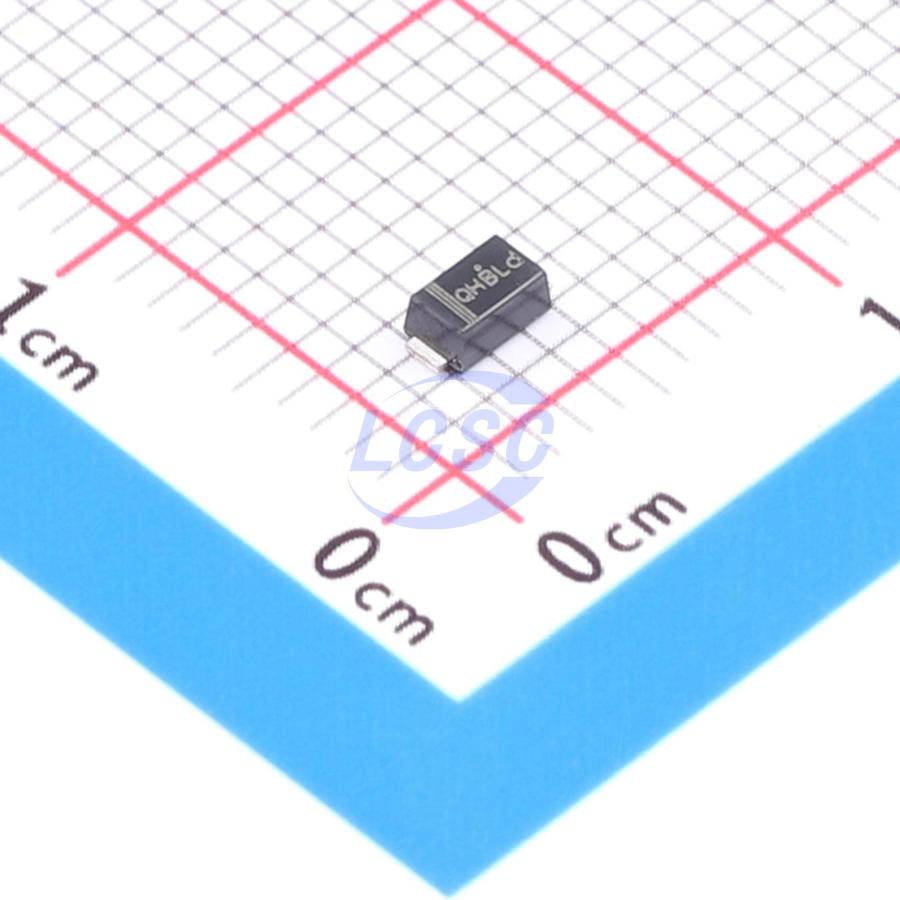

NRVUS1BFA
50ns 1 Independent 100V 950mV@1A 1A SOD-123FL Single Diodes RoHS
SOD-123FLROHS3 CompliantActive
Diode 100V 1A SOD-123FL
- Manufacturer
- onsemi
- Manufacturer part #
- NRVUS1BFA
- Store part #
- C889709
- Package / case
- SOD-123FL
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
30 in stock
#C889709
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹73.29 | ₹73.29 |
| 10+ | ₹72.01 | ₹720.10 |
| 30+ | ₹71.15 | ₹2,134.50 |
| 100+ | ₹70.50 | ₹7,050.00 |
1 × ₹73.29
₹73.29
excl. GST
₹86.48 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NRVUS1BFA
₹73.29 for 1 + GST
Specifications
- Reverse Recovery Time (trr)
- 50ns
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 100V
- Voltage - Forward(Vf@If)
- 950mV@1A
- Reverse Leakage Current (Ir)
- 5uA@100V
- Non-Repetitive Peak Forward Surge Current
- 30A
- Current - Rectified
- 1A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.034 g
Overview
Key features
- Glass Passivated Chip Junction
- Low Power Loss, High Efficiency
- Fast Switching Reverse Recovery Time: 50~75 ns Maximum
- High Surge Capacity
- UL Flammability 94V−0 Classification
- MSL 1 per J−STD−020
- NRV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
- These Devices are Pb−Free, Halogen Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | US1DW#C2898565YFW · SOD-123FL | YFW | SOD-123FL | 750 | ₹1.92 · 750 in stock | View |
 | U1D#C41433755YFW · SOD-123FL | YFW | SOD-123FL | 3,000 | ₹2.14 · 3,000 in stock | View |
 | US1BW#C437771Jingdao Microelectronics · SOD-123FL | Jingdao Microelectronics | SOD-123FL | 27,250 | ₹1.72 · 27,250 in stock | View |
 | US1BL#C5293945JSCJ · SOD-123FL | JSCJ | SOD-123FL | 5,600 | ₹3.02 · 5,600 in stock | View |
 | US1DW#C169410Jingdao Microelectronics · SOD-123FL | Jingdao Microelectronics | SOD-123FL | 22,650 | ₹1.48 · 22,650 in stock | View |
