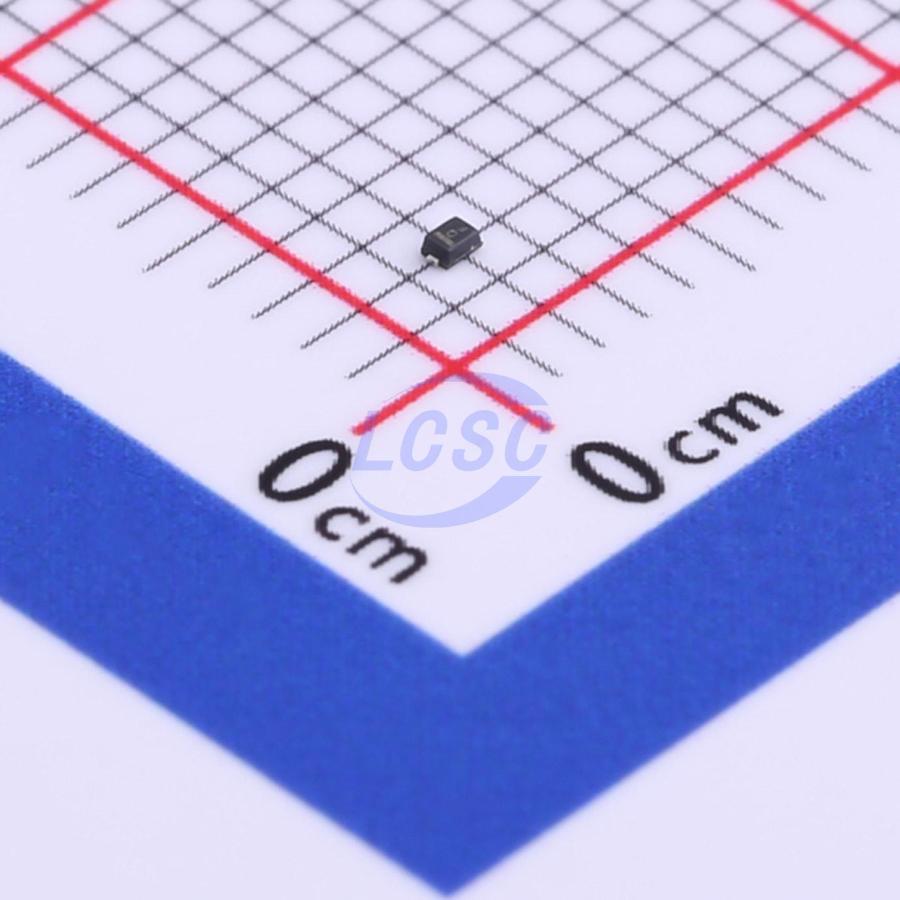

NSR0170P2T5G
Diode 70V 70mA Surface Mount SOD-923
SOD-923ROHS3 CompliantActive
DIODE SCHOTTKY 70V SOD-923
- Manufacturer
- onsemi
- Manufacturer part #
- NSR0170P2T5G
- Store part #
- C513046
- Package / case
- SOD-923
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
Out of stock
#C513046
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.61 | ₹63.05 |
| 50+ | ₹12.33 | ₹616.50 |
| 150+ | ₹12.15 | ₹1,822.50 |
| 500+ | ₹11.96 | ₹5,980.00 |
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 8,000 per reel
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 70V
- Voltage - Forward(Vf@If)
- 730mV@15mA
- Reverse Leakage Current (Ir)
- 3uA@70V
- Current - Rectified
- 70mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 8,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.006 g
Overview
Schottky barrier diodes are optimized for very low forward voltage drop and low leakage current and are used in a wide range of dc-dc converter, clamping and protection applications in portable devices. NSR0170P2 in a SOD-923 miniature package enables designers to meet the challenging task of achieving higher efficiency and meeting reduced space requirements.
Applications
- LCD and Keypad Backlighting
- Camera Photo Flash
- Buck and Boost dc-dc Converters
- Reverse Voltage and Current Protection
- Clamping & Protection
- Mobile Handsets
- MP3 Players
- Digital Camera and Camcorders
- Notebook PCs & PDAs
- GPS
Key features
- Very Low Forward Voltage Drop - 560 mV @ 10 mA
- Low Reverse Current - 25 nA @ 50 V VR
- 70 mA of Continuous Forward Current
- Power Dissipation of 240 mW with Minimum Trace
- Very High Switching Speed
- Low Capacitance - CT = 2 pF
- NSVR Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable
- These Devices are Po-Free, Halogen Free/BFR Free and are RoHS Compliant
