onsemiDatasheet (PDF)

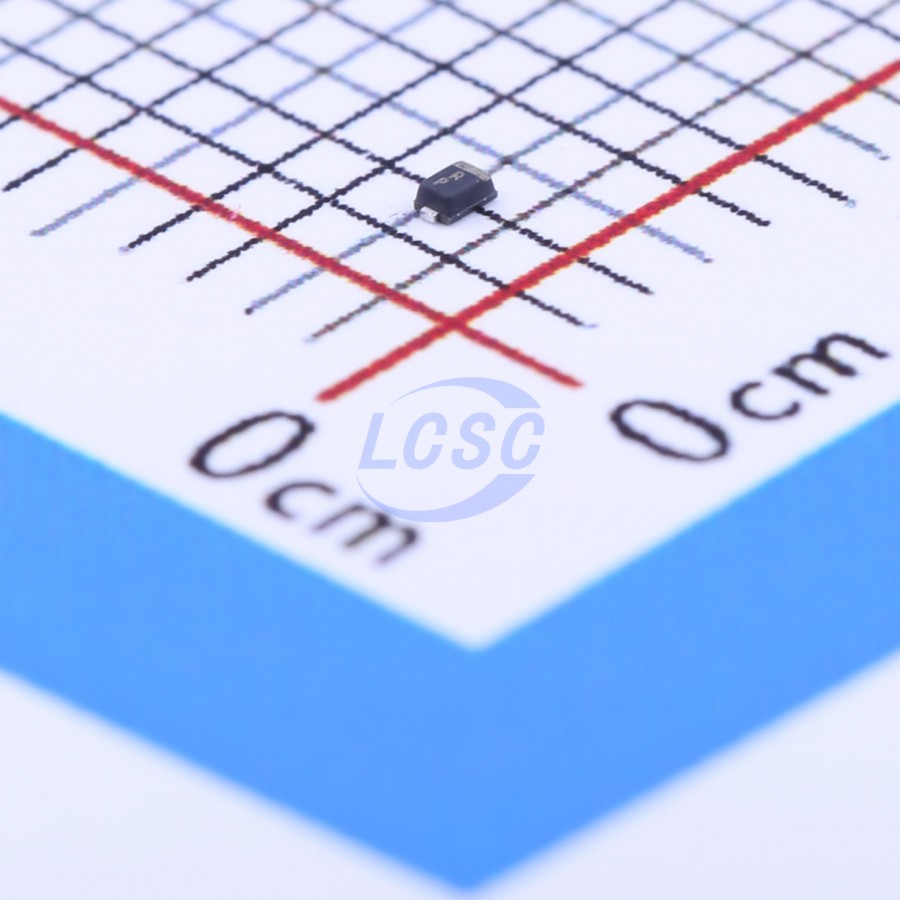

NSR0340P2T5G
1 Independent 40V 560mV@200mA 200mA SOD-923 Single Diodes RoHS
SOD-923ROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- NSR0340P2T5G
- Store part #
- C146801
- Package / case
- SOD-923
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,990 in stock
#C146801
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.37 | ₹53.70 |
| 100+ | ₹4.23 | ₹423.00 |
| 300+ | ₹3.66 | ₹1,098.00 |
| 1,000+ | ₹3.24 | ₹3,240.00 |
| 5,000+ | ₹2.90 | ₹14,500.00 |
| 8,000+ | ₹2.73 | ₹21,840.00 |
10 × ₹5.37
₹53.70
excl. GST
₹63.37 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 8,000 per reel
NSR0340P2T5G
₹53.70 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+125℃
- Voltage - DC Reverse (Vr) (Max)
- 40V
- Voltage - Forward(Vf@If)
- 560mV@200mA
- Reverse Leakage Current (Ir)
- 20uA@40V
- Non-Repetitive Peak Forward Surge Current
- 1A
- Current - Rectified
- 200mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 8,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.011 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NSR0240P2T5G#C896425onsemi · SOD-923 | onsemi | SOD-923 | 6,175 | ₹13.44 · 6,175 in stock | View |
 | CDBQC0240LR-HF#C3758513Comchip · SOD-923F | Comchip | SOD-923F | 4,740 | ₹5.12 · 4,740 in stock | View |
 | CDBQC0240L-HF#C3012686Comchip · SOD-923F | Comchip | SOD-923F | 1,160 | ₹5.12 · 1,160 in stock | View |
 | CDBQC40-HF#C6529245Comchip · SOD-923F | Comchip | SOD-923F | 4,970 | ₹8.56 · 4,970 in stock | View |
| ACDBQC140L-HF#C20184568Comchip · 0402C(SOD-923F) | Comchip | 0402C(SOD-923F) | On request | ₹9.53 · 0 in stock | View | |
